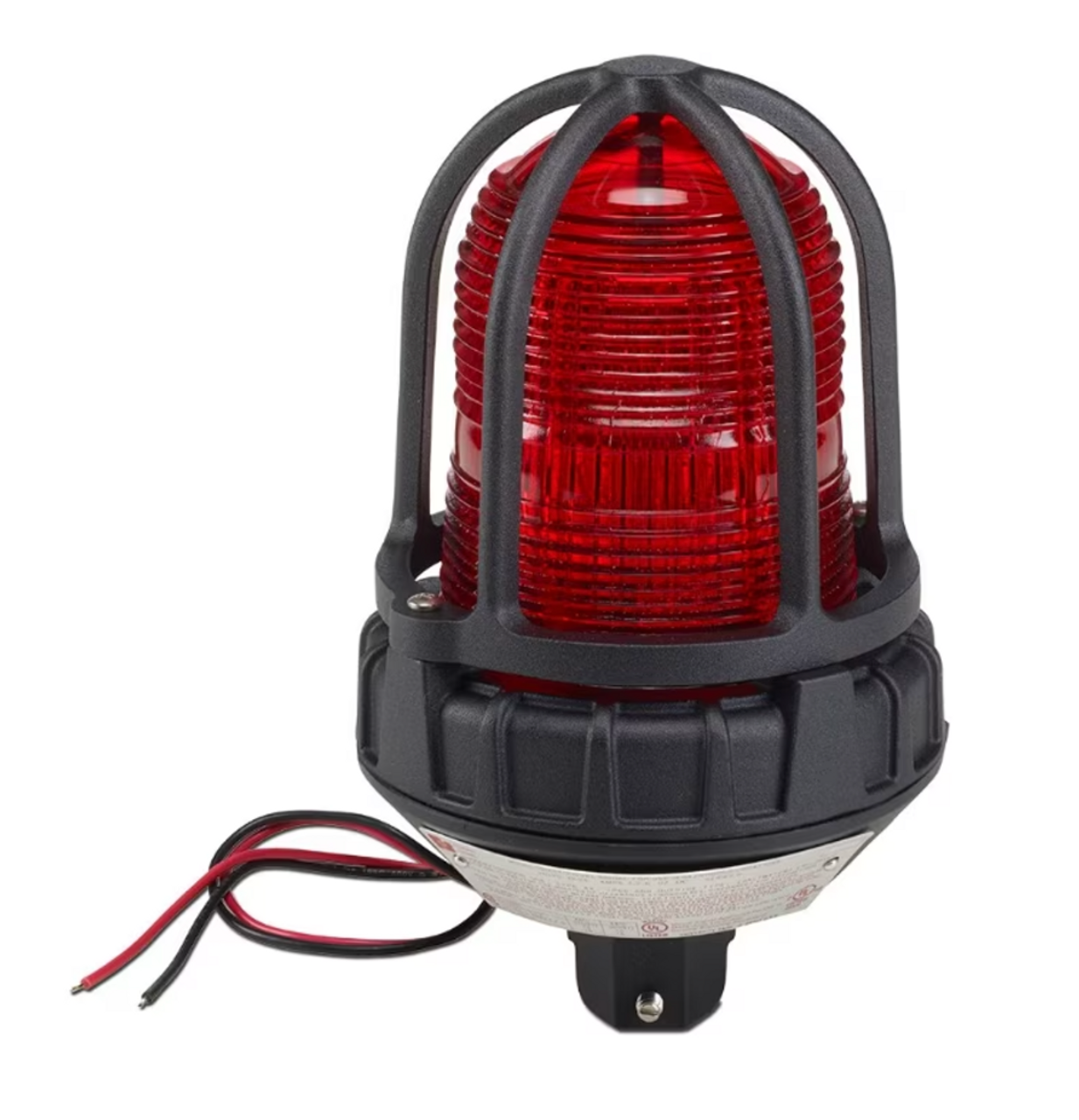

151XST-012-024R | Federal Signal 12–24 VDC Hazardous Location Red Strobe Light
- Regular price
- $1,125.00
- Sale price
- $1,125.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 151XST-012-024R
Description
The Federal Signal 151XST-012-024R is a hazardous location strobe warning light operating on 12–24 VDC. With a red lens and high-intensity output of 520,000 candela, it provides reliable visual alerts in demanding indoor and outdoor industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Federal Signal |
| Category | Signaling Devices |
| Part Number | 151XST-012-024R |
| Subcategory | Strobe Lights |
| Series | 151XST |
| Light Source | Strobe Tube |
| Lens Color | Red (Amber, Blue, Clear, Green also available) |
| Voltage Rating | 12–24 VDC |
| Current Draw | 0.6–1.3 A |
| Flash Rate | 80 Flashes per Minute |
| Light Output | 520,000 Candela Peak |
| Average Life | 10,000 Hours |
| Housing Material | Aluminum |
| Dome Material | Glass-Reinforced Polycarbonate with Dome Guard |
| Mounting | 3/4-Inch NPT Pipe or Surface Mount |
| Shape | Cylindrical |
| Dimensions | 5.5 in W x 5.5 in D x 9.25 in H |
| Environmental Rating | NEMA 4X, IP66, IP69K |
| Operating Temperature | -67°F to 150°F (-55°C to 65°C) |
| Certifications | UL Listed, cUL Listed, Marine Rated |
| Application | Hazardous Location Visual Signaling |
| Weight | 6.0 lb (approx.) |
Information About 151XST-012-024R
The 151XST-012-024R is part of Federal Signal’s 151XST Series, engineered for hazardous and marine environments where high-visibility strobe signaling is required. This unit operates on 12–24 VDC with a current draw between 0.6–1.3 A, producing 80 flashes per minute and a rated life of 10,000 hours. Built with an aluminum base and glass-reinforced dome, it includes a protective dome guard and conforms to NEMA 4X, IP66, and IP69K enclosure standards. UL, cUL, and Marine ratings verify its suitability for Class I Division 2, Class II Division 1, and Class III hazardous applications.
Key Features:
- Hazardous Location Rated: Certified for Class I Div 2, Class II Div 1, and Class III environments.
- 12–24 VDC Operation: Flexible low-voltage power input with 0.6–1.3 A current draw.
- High Light Output: Produces 520,000 candela with 80 flashes per minute.
- Long Service Life: Strobe tube rated for 10,000 operating hours.
- Durable Construction: Aluminum base with glass-reinforced dome and included dome guard.
- Environmental Protection: NEMA 4X, IP66, and IP69K enclosure ensures resistance to dust, water, and corrosion.
- Wide Temperature Range: Operates reliably from -67°F to 150°F (-55°C to 65°C).
- Indoor/Outdoor Use: Suitable for both plant floor and field applications.
The 151XST-012-024R delivers the reliability and precision required for hazardous location strobe signaling in industrial, marine, and safety-critical environments.
