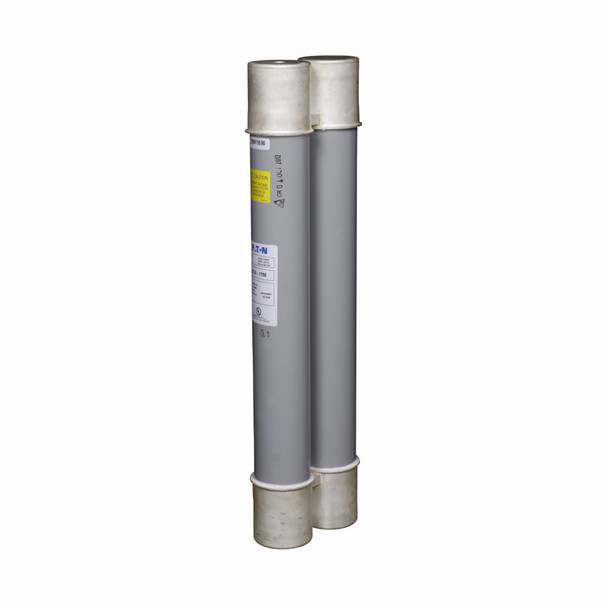

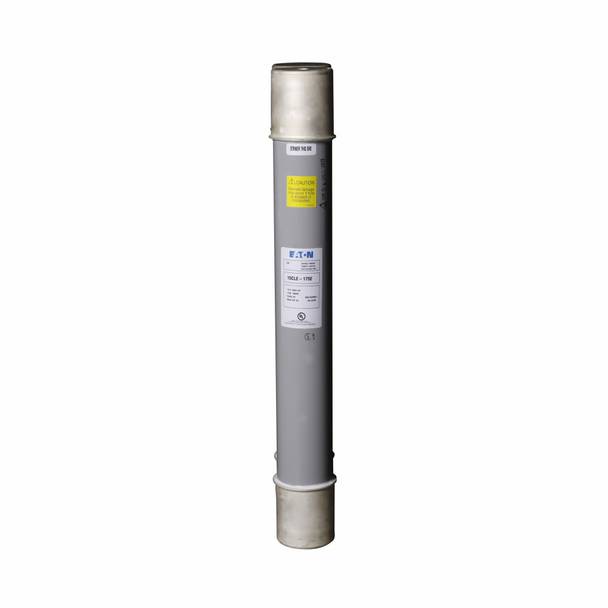

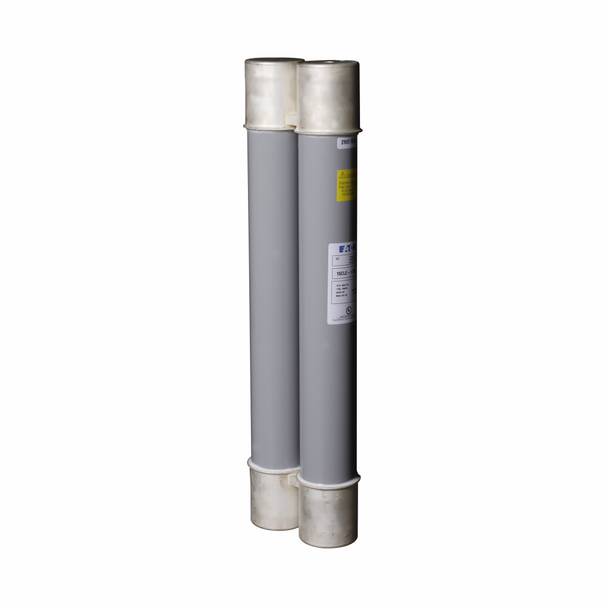

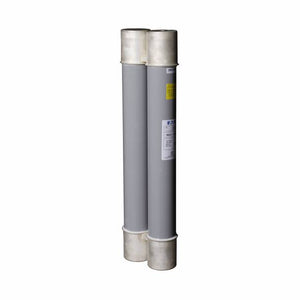

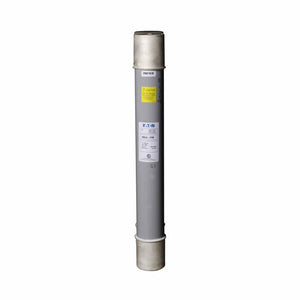

15CLE-200E | Eaton Bussmann 14.4kV 200A E-Rated Medium Voltage Current Limiting Fuse
- Regular price
- $2,982.00
- Sale price
- $2,982.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 15CLE-200E
Description
The Eaton Bussmann 15CLE-200E is a medium-voltage current-limiting fuse designed for transformer and feeder circuit protection in industrial and utility systems. Rated for 14.4 kV, 200 amps, and 63 kA interrupting capacity, it offers dependable overcurrent protection for both indoor and outdoor installations. Built with a double-barrel fiberglass-reinforced design, the 15CLE-200E ensures durability and stable performance under demanding electrical conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton Bussmann |
| Category | Power Distribution |
| Part Number | 15CLE-200E |
| Subcategory | Medium Voltage Fuse |
| Series | CLE Series |
| Type | E-Rated Current Limiting Fuse |
| Voltage Rating | 14.4 kV |
| Amperage Rating | 200 A |
| Interrupting Capacity | 63 kAIC |
| Class | Class E |
| Construction | Double Barrel |
| Body Material | Fiberglass Reinforced Resin |
| Mounting Type | Ferrule Terminal |
| Installation Type | Indoor/Outdoor |
| Compliance Standards | IEEE Std. C37.41 |
| Product Length | 23.9 in |
| Product Width | 3 in |
| Product Height | 6.3 in |
| Weight | 26 lbs |
Information About 15CLE-200E
The 15CLE-200E is part of the Eaton Bussmann CLE Series, a line of medium-voltage E-rated fuses engineered for power distribution applications. Its current-limiting technology rapidly interrupts fault currents to minimize equipment damage and system downtime. Featuring a double-barrel construction and fiberglass-reinforced resin body, this fuse provides mechanical strength and long service life in both indoor and outdoor environments. It complies with IEEE C37.41 standards, making it suitable for use in transformers, feeders, power centers, and unit substations.
Key Features:
- Medium Voltage Protection: Rated for 14.4 kV applications in industrial and utility systems.
- High Interrupting Capacity: Supports up to 63 kA fault current interruption for maximum safety.
- E-Rated Fuse: Provides time-current characteristics ideal for transformer and feeder protection.
- Current-Limiting Design: Reduces fault energy and equipment stress during overcurrent events.
- Double-Barrel Construction: Ensures superior heat dissipation and structural integrity.
- Fiberglass-Reinforced Body: Offers enhanced durability and environmental resistance.
- Indoor/Outdoor Use: Suitable for a wide range of installation environments.
- Standards Compliance: Meets IEEE C37.41 requirements for reliability and performance.
The 15CLE-200E delivers the reliability and precision required for safe, efficient operation of high-voltage power distribution systems.
