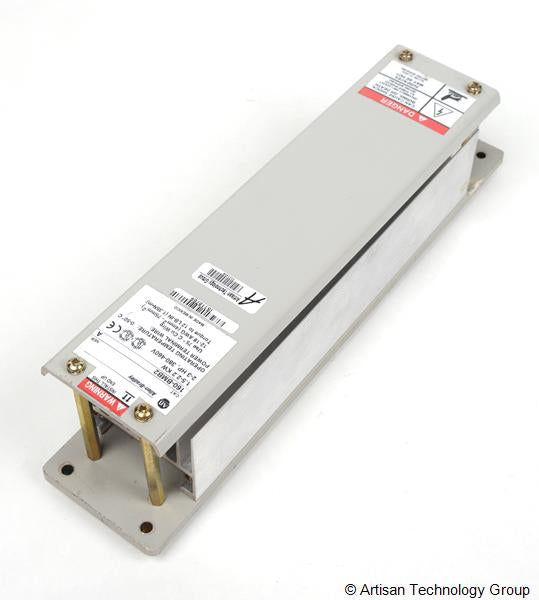

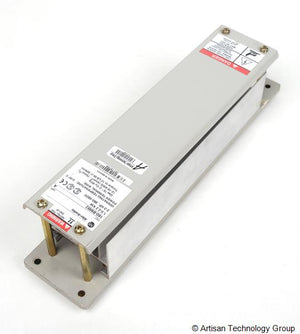

160-BMB2 | Allen-Bradley Dynamic Brake Module 2-3HP
- Regular price
- $195.00
- Sale price
- $195.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 160-BMB2
Description
The Allen-Bradley 160-BMB2 is a Dynamic Brake Module designed for 2-3HP motors. It enhances safety and efficiency by preventing overhauls and ensuring controlled deceleration in industrial automation systems. This module is essential for applications requiring precise motor control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | Brake Systems |
| Part Number | 160-BMB2 |
| Subcategory | Dynamic Brakes |
| Product Type | Dynamic Brake Module |
| Series | 160 SSC Variable Speed Drives |
| Rated Voltage | 380–460 V AC |
| Voltage Type | 3-phase |
| Horsepower Capacity | 2–3 HP |
| Motor Rating | 1.5–2.2 kW |
| Allowable Braking Duty Cycle | 5% |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity Tolerance | 0 to 95% (non-condensing) |
| Estimated Braking Torque | 115–150% |
| Maximum Power | 120 W |
| Dynamic Braking Resistance | 377 Ω |
| Approximate Dimensions | 12.36 in tall × 2.83 in wide |
| Weight | 3.63 lbs (1.64 kg) |
Information About 160-BMB2
The 160-BMB2 is part of the Allen-Bradley Bulletin 160 series of drive accessories, developed to enhance the performance and safety of SSC variable frequency drives. This braking module connects directly to the drive’s DC bus and absorbs excess regenerative energy when motors decelerate rapidly or stop under load. By preventing overvoltage faults, the 160-BMB2 improves drive reliability and extends equipment life. Compact and panel-mounted, it is designed for easy installation alongside 160 SSC drives. Built for industrial environments, the 160-BMB2 ensures safe and efficient braking in demanding applications such as conveyors, packaging, and machine automation.
Key Features:
- Design: Compact braking module for Bulletin 160 SSC drives.
- Functionality: Dissipates regenerative energy to prevent DC bus overvoltage.
- Compatibility: Designed specifically for use with Allen-Bradley 160 SSC variable frequency drives.
- Performance: Improves drive stability during rapid deceleration and stopping.
- Installation: Simple panel-mount design for quick integration.
- Reliability: Reduces risk of overvoltage faults and enhances drive protection.
- Durability: Built for industrial environments with robust construction.
- Application Range: Suitable for conveyors, packaging systems, and machine control.
The 160-BMB2 delivers the braking performance and protection required for reliable operation of Allen-Bradley 160 SSC drive systems.
