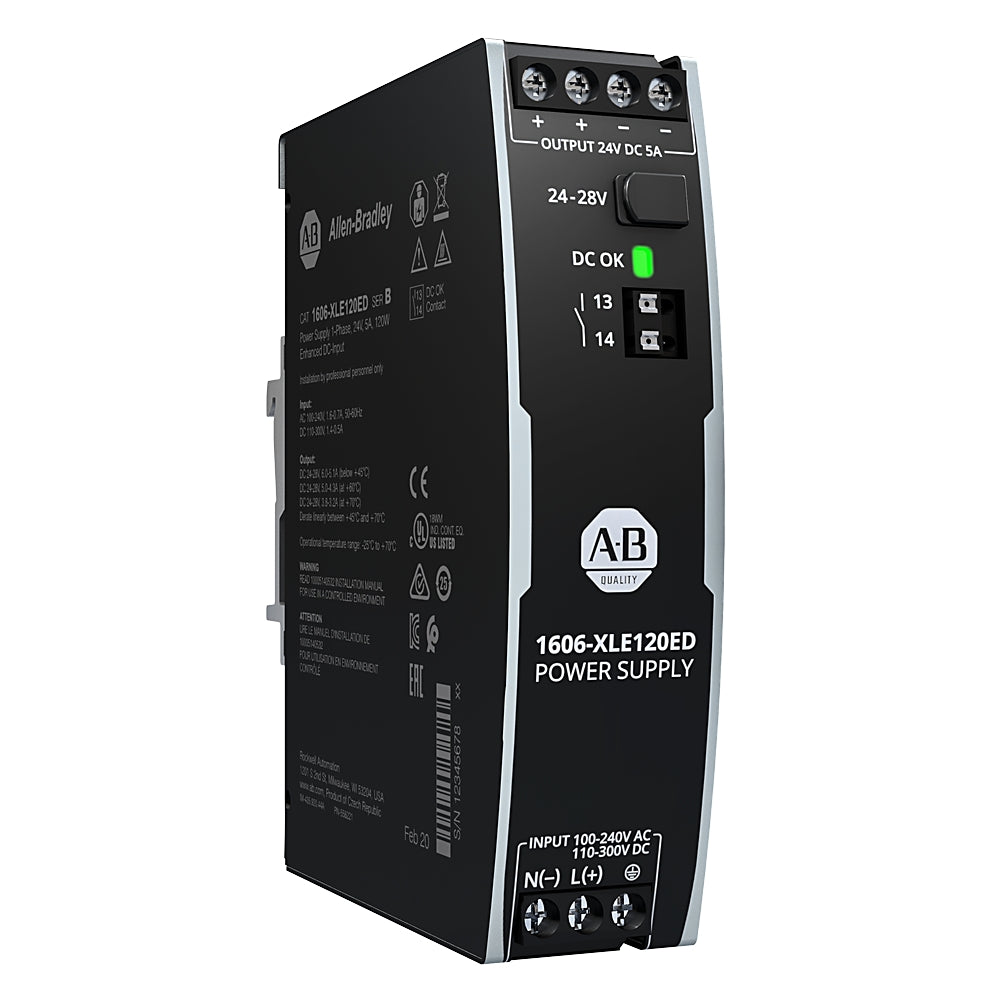

1606-XLE120E | Allen-Bradley Essential Power Supply 24-28V DC 5A 120W, 120/230V AC

Description

The Allen-Bradley 1606-XLE120E is part of the Essential Switched Mode Power Supply product category. It requires an input power of 200-240V AC Voltage with Output Voltage of 24 to 24VDC along a 120W Output Power and Current of 5 Amperes at 24VDC and 4.3 Amperes at 28VDC.

Technical Specifications

Information About 1606-XLE120E

The Allen-Bradley 1606-XLE120E is part of the Allen-Bradley Essential Switched Mode Power Supply product category. Switched mode power supplies has an internal electronic switching regulator used for converting input power with high efficiency.

Allen-Bradley 1606-XLE120E has a slim form but is designed with a long lifespan and high reliability. It is especially used for Single-Phase application and typically mounted inside an enclosure.

In layman’s term, this product may be simply called a 24VDC power supply. Primarily used for power up 24VDC components such as relay coils, pilot lamps, solenoid valves, buzzers and sirens and may also be used as power supply for switches and input modules of a PLC. This power supply also has a power reserve of 20% for all devices to allow continuous operation even at 45 Deg. Celsius. It has an Auto Input select capability which eliminates the need of selector switches and prevents wiring to incorrect input voltage supply.

This power supply is CE Marked, cULus Listed, cULus Recognized and RCM certified and has met standards such as ABS/GL/RINA (Marine), ATEX, CE, Class 1 Div. 2 (T3A), C-Tick, cULus, NEC Class 2 and SEMI F47 Compatible.

This power supply is a DIN Rail mounted power supply typically installed in Vertical orientation. It may also be installed directly to a wall with the use of the accessory component 1606-XLB wall mount bracket. It also has an adjustment potentiometer to trim the output voltage from 24VDC to 28 VDC with maximum output of 30VDC. The default output setting of the unit is 24.1 VDC.

The Allen-Bradley 1606-XLE120E power supply is a 24 Volts DC, 5 Amps single-phase input power supply. This device belongs to the Allen-Bradley 1606-XLE DIN-rail mountable power supply series. It can be mounted in a standard way with DC output terminals at the top and AC input terminals at the bottom. It supports upside-down, tabletop, horizontal clock-wise, and horizontal counterclockwise mounting. It is important to keep the vent openings free for proper air circulation in any mounting position. The 1606-XLE120E power supply accepts 100 to 240 Volts AC input voltage that is processed by the input filter and rectifier, then converted with PFC and power converters to finally be managed with the output filter and DC voltage regulator. At the output side, this power supply delivers 24 to 28 Volts DC and 5 Amps to supply electrical circuits with 120 Watts of energy. For short periods of time, the 1606-XLE120E power supply can deliver 144 Watts of power, but only if it is working at temperatures of less than 45 degrees Celsius. In standard operating mode, the 1606-XLE120E power supply can work at temperatures between -25 and 60 degrees Celsius. The typical efficiency of the unit goes from 89.4% at 120 Volts AC to 90.2% at 230 Volts AC. The Allen-Bradley 1606-XLE120E power supply is a small and light SMPS (Switched Mode Power Supply). Its dimensions are 32 x 124 x 117 millimeters, and its total weight is only 0.62 kilograms. This modern power supply unit delivers regulated and reliable DC output voltage regardless of input voltage variations. The device is IP 20 protected, and its output circuits are electronically protected against short-circuits, overload conditions, and no-load conditions.

Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
