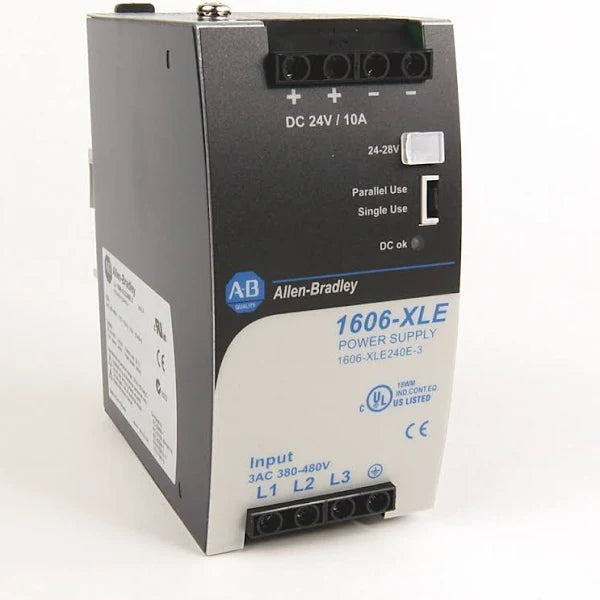

1606-XLE240E-3 | Allen-Bradley Power Supply 24-28VDC 240W 3-Phase 380-480VAC

Description

The Allen-Bradley/Rockwell Automation 1606-XLE240E-3 Bulletin 1606 power supply module is an essential-type switched mode power supply module, and this means that it only comes with a simple set of essential features in a slim and compact package. The 1606-XLE240E-3 module is one of the highest-powered power supplies from the essential module product line within the Bulletin 1606 series and it uses 3-phase voltage. Its AC input voltage range is 380 to 480 Volts AC and its DC input voltage rating is 600 Volts DC. The 1606-XLE240E-3 essential power supply module can generate 240 Watts of output power. It has a steady-state input current rating of 3x 0.6 Amps at 400 to 480 Volts AC.

Technical Specifications

Information About 1606-XLE240E-3

The Allen-Bradley/Rockwell Automation 1606-XLE240E-3 module is a switched-mode power supply module. The power supply has an ultra-small size and an extra-low inrush current. Additionally, this power supply module has a high level of efficiency. For monitoring and troubleshooting, the 1606-XLE240E-3 module has light-emitting diodes to monitor conditions such as overload and power conditions. The 1606-XLE240E-3 module, like other switched-mode power supplies in the 1606-XLE240E family, has an output voltage rating of 24 Volts DC, and an adjustment voltage that ranges between 24 Volts and 28 Volts. The Allen-Bradley 1606-XLE240E-3 module has an output current of between 10 and 8.6 Amps when it is operating at a temperature of less than 60 degrees Celsius. However, when operating at a temperature of less than 45 degrees Celsius, the power supply has an output current of between 12 Amps and 10.3 Amps.

The Allen-Bradley 1606-XLE240E-3 power supply module’s output power is rated at 240 Watts and 288 Watts at a temperature of less than 60 degrees Celsius and 45 degrees Celsius, respectively. Additionally, the 1606-XLE240E-3 module has an output ripple of less than 50 mVpp at a frequency of between 20 Hertz and 20 Megahertz. For the line frequency, the 1606-XLE240E-3 module has a rated frequency of 50 to 60 Hertz with an allowance of +/- 5%. For the power supply to operate optimally, it has to be subjected to an operating temperature of between a minimum of -25 degrees Celsius and a maximum of 70 degrees Celsius at a voltage of 120 to 230 Volts AC. The 1606-XLE240E-3 module has typical power losses of 23.7 Watts and 22 Watts at a voltage of 120 Volts AC and 230 Volts AC, respectively.
