1606-XLE480EP | Allen-Bradley Essential Power Supply 120/240VAC In, 24VDC Out

Description

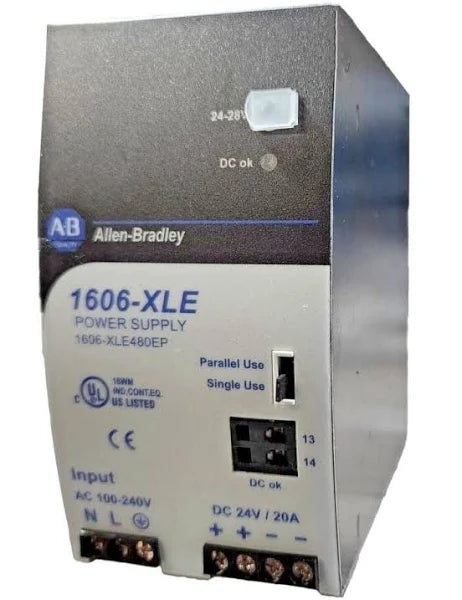

The Allen-Bradley 1606-XLE480EP is an essential switched mode Power supply. It is a stand-alone, 1-phase power supply that is designed for DIN rail and back panel mounting. This module has an input voltage of 100-240 VAC. It delivers an output voltage of 24-28 VDC, output current of 20 Amperes, and output power of 480 Watts. This power supply has a hold-up time of 54-65 ms.

Technical Specifications

Information About 1606-XLE480EP

The Allen-Bradley 1606-XLE480EP is an essential switched-mode power supply that is part of the Bulletin 166-XLE series. This power supply operates at a 1-phase, 100-240 VAC input supply voltage along with an input frequency and current of 50-60 Hz, 4.46 Amperes at 120 VAC, and 2.33 Amperes at 230 VAC. This power supply module is designed to operate with high efficiency, capable of implementing inrush current limitation with active Power Factor Correction (PFC) installed. This power supply is intended for use in general purposes, basic applications however, it comes with a 20% power reserve unlike any other standard power supply in the market. The 1606-XLE480EP output specifications include nominal output voltage of 24VDC with an adjustment range 24 - 28VDC and output current of 20 Amperes at 24VDC, with an ambient temperature of less than 45°C; 24A at 24V, amb <45°C; 17.1A at 28V, amb <60°C and 20.6A at 28V, amb <45°C while the module’s output power ratings are 480W at an ambient temperature of less than 60°C and 576W at an ambient temperature of <45°C. This module exhibits an output ripple of less than 50 mV peak-to-peak at a frequency of 20 Hz to 20 MHz. The 1606-XLE480EP has a power factor rating of 0.99 / 0.95 at 120 and 230VAC, respectively, and generates an inrush current rated 9 / 7A peak at 120 / 230VAC voltages. This power supply module supports DIN rail mounting however, wall mounting is also supported via the 1606-XLC Wall Mount Bracket. Other optional accessories available to this power supply include 1606-XLSRED40HE, 1606-XLSREDS40HE, and 1606-XLSRED40 Redundancy Modules.

The 1606-XLE480EP power supply is an essential switched mode power supply that has been manufactured by Allen-Bradley in the 1606-XLE power supply product line. This power supply module operates on an input voltage range of 120 to 240 Volts AC and it has a power factor correction rating of 24 volts DC as well as an output power rating of 480 Watts. The module has a wide-ranging input voltage of 100 to 240 Volts AC, and an efficiency rating of 94 percent with excellent partial load efficiency. Other features of the 1606-XLE480EP power supply include the Safe HiccupPLUS overload mode, easy fuse breaking because of the 80 Amps high overload current that lasts for 15 milliseconds typical, and an active power factor correction (PFC). Also, this module features full power at a temperature between -25 and 60 degrees Celsius, a minimal inrush current surge, a current sharing feature for parallel use, and a DC-OK relay contact.

The Allen-Bradley 1606-XLE power supplies, including the 1606-XLE480EP power supply, are cost-optimized with excellent reliability, performance, and quality. These devices come with a power reserve that may be used continuously at a temperature under 45 degrees Celsius. Additionally, the Allen-Bradley 1606-XLE480EP power supply can deliver up to 4 times the nominal output for a period of 15 milliseconds, thus helping to trip the fuses on the faulty output branches. It also has a high level of immunity that helps with the power and transient surges as well as the electromagnetic emission, and it has a large global approval package for a wide range of applications that makes it suitable for almost every application situation.

Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
