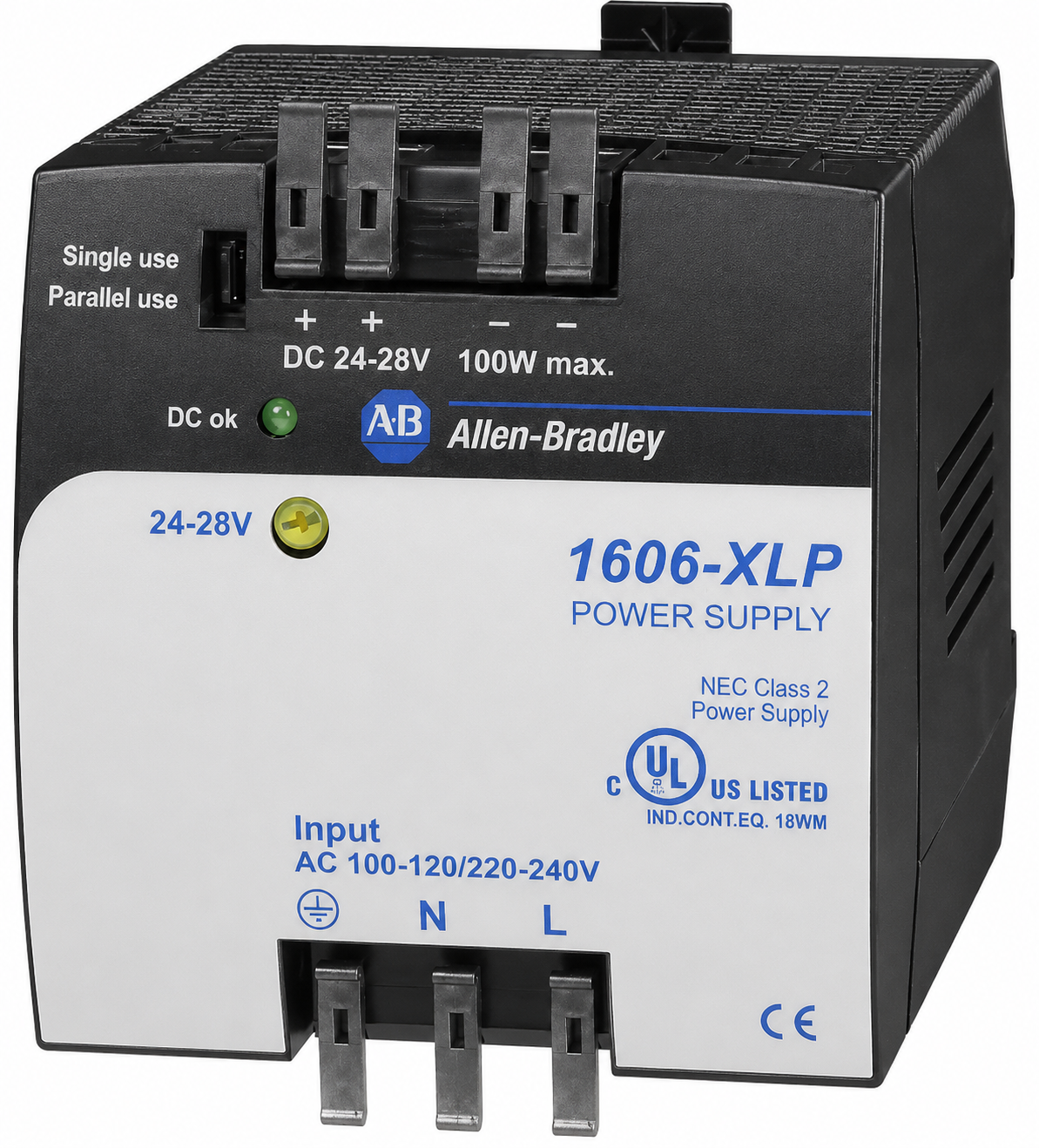

1606-XLP100E | Allen-Bradley Compact Switched Mode Power Supply 120/240VAC to 24VDC, 100W
- Regular price
- $345.00
- Sale price
- $345.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1606-XLP100E
Description
The Allen-Bradley 1606-XLP100E is a compact switched mode power supply designed to convert 120/240VAC input into an adjustable 24VDC output. Delivering up to 100W of power, it supports applications requiring efficient DC power in space-constrained control panels. The module can operate in single or parallel mode via a jumper setting, allowing flexibility for redundancy or load-sharing configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Switched Mode Power Supply |
| Part Number | 1606-XLP100E |
| Subcategory | Switched Mode Power Supply |
| Manufacturer | Rockwell Automation |
| Input Voltage | 120/240 VAC auto-selecting |
| Output Voltage | Adjustable up to 28 VDC |
| Output Power | 100 W |
| Output Current | 2.1 A |
| Efficiency | ~90% typical |
| Operating Temperature | -10 to 70 °C |
| Non-Operating Temperature | -40 to 85 °C |
| Terminals | Screw/Spring clamp |
| Signal Output | DC-OK |
| Cooling Method | Convection |
| Mounting | DIN rail |
| Protection Features | Overload and short-circuit protection |
| Parallel Operation | Supported via jumper |
| Dimensions | 73 × 75 × 103 mm |
| Weight | 0.36 kg |
| Certifications | CE, c-UL-us, CSA |
Information About 1606-XLP100E
The 1606-XLP100E belongs to the Allen-Bradley Bulletin 1606-XLP series, a line of compact DIN-rail power supplies built for industrial control systems. Its design incorporates an adjustable output stage capable of reaching up to 28VDC, enabling compatibility with a range of connected loads. The module auto-detects 100–120VAC or 220–240VAC input levels and uses high-frequency switching technology to achieve typical efficiencies around 90 percent. Commonly integrated into automation panels, the unit supports redundant supply architectures, offers internal protection against overloads and short circuits, and maintains reliable operation across a -10 to 70 °C ambient temperature range.
Key Features:
- Compact switched-mode design: Provides 100W DC output while minimizing panel space usage.
- Adjustable output voltage: Supports fine tuning up to 28VDC for diverse industrial loads.
- Universal AC input detection: Automatically adapts to 100–120VAC or 220–240VAC input ranges.
- Parallel/single mode selection: Jumper-configurable for redundancy or load sharing.
- High operating efficiency: Typically 90% due to internal high-frequency switching.
- Internal protection circuitry: Safeguards against overloads and short circuits.
- DIN-rail mounting: Simplifies installation in industrial control cabinets.
- Wide thermal operating window: Rated for -10 to 70 °C operation.
The 1606-XLP100E delivers the reliability and precision required for compact industrial power conversion and redundant supply configurations.
