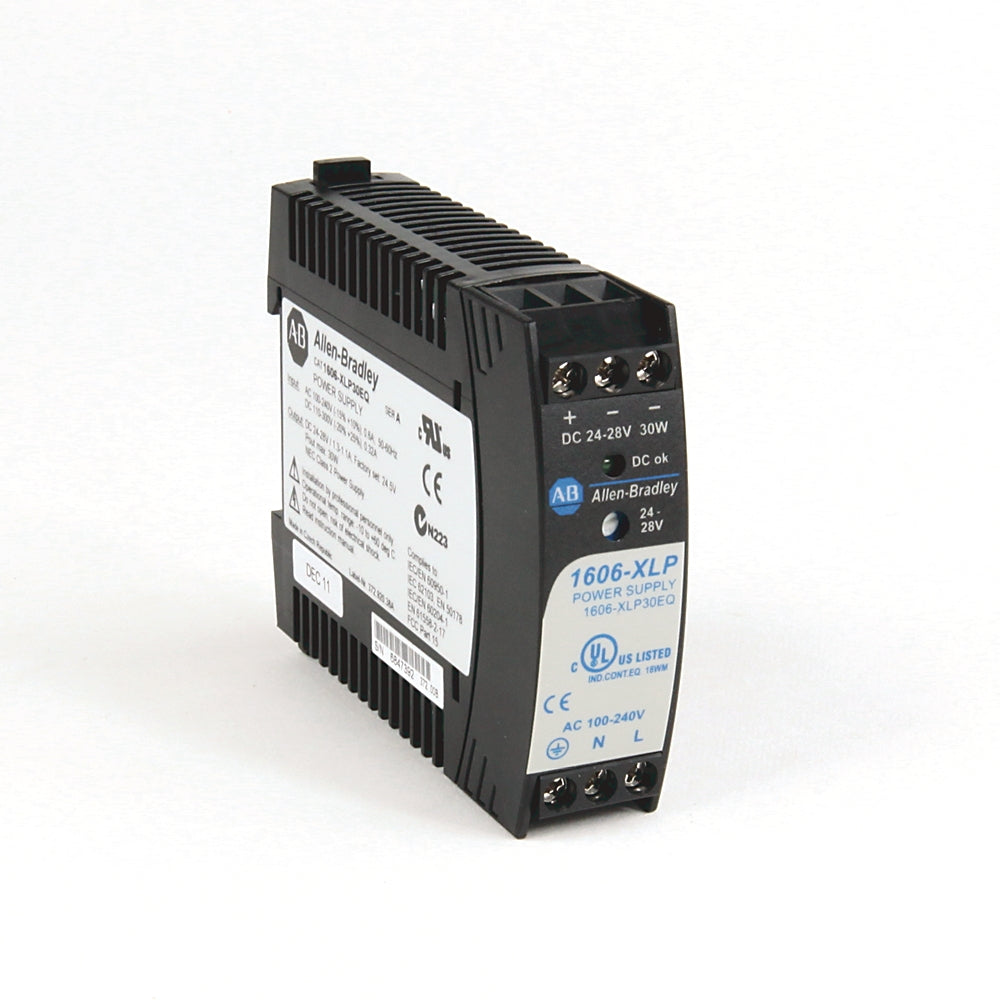

1606-XLP30E | Allen-Bradley AC/DC Compact Power Supply

Description

The Allen-Bradley 1606-XLP30E is a compact power supply designed for both AC and DC applications. It features a DIN rail mount for easy installation and is classified as a standard module. With a power rating of 30W, it operates within a voltage range of 24-28V and accepts input voltages of 120/230V AC.

Technical Specifications

Information About 1606-XLP30E

The Allen-Bradley 1606-XLP30E is an AC/DC compact power supply designed to provide reliable power for various industrial applications. It operates with input voltages ranging from 120V to 230V AC and delivers an output voltage of 24-28V DC. With a power rating of 30W, this power supply offers sufficient power for driving a range of devices and equipment.

Designed for ease of installation, the 1606-XLP30E features DIN rail mounting, making it suitable for integration into control panels and enclosures commonly found in industrial settings. As a standard module, it offers straightforward installation and compatibility with existing setups, streamlining the implementation process.

In terms of dimensions, the 1606-XLP30E boasts a compact form factor, with dimensions of 75mm in height, 91mm in depth, and 45mm in width. This compact size allows for efficient use of space within control panels, enabling optimal utilization of available real estate.

The power supply is rated with a degree of protection of IP20, indicating protection against solid objects and providing basic protection against ingress of water. While direct mounting is not supported, the power supply can be wall-mounted if required, offering flexibility in installation options.

For electrical connections, the 1606-XLP30E features a spring clamp connection type, ensuring secure and reliable connections for input and output wiring. Additionally, the power supply is capable of withstanding shocks of up to 30G for 6 milliseconds and 20G for 11 milliseconds, making it suitable for operation in demanding environments where mechanical stresses may be encountered.
