1606-XLS480E-3 | Allen-Bradley Performance Power Supply 24-28VDC 480W 3-Phase 480V
- Regular price
- $479.00
- Sale price
- $479.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1606-XLS480E-3
Description
The Allen-Bradley 1606-XLS480E-3 is a Performance power supply. This power supply has an input voltage rating of 3-Phase, 380-480VAC, with rated output voltage of 24-28VDC, output current of 20 A and output power of 480 Watts.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 1606-XLS480E-3 |
| Product Type | Switched Mode Power Supply |
| DC OK Relay Contact | Yes |
| Ripple and Noise, Max [mVPP] | 100 mV |
| Power Reserves | 50% |
| Input Phase | 3-Phase |
| Input Voltage | 380-480V AC |
| Output Power | 480W |
| Output Current | 20A |
| Terminals | Spring Clamp |
| Signal | DC-OK |
| Output Voltage | Adjustable |
| Heat Generation | Minimal |
Information About 1606-XLS480E-3

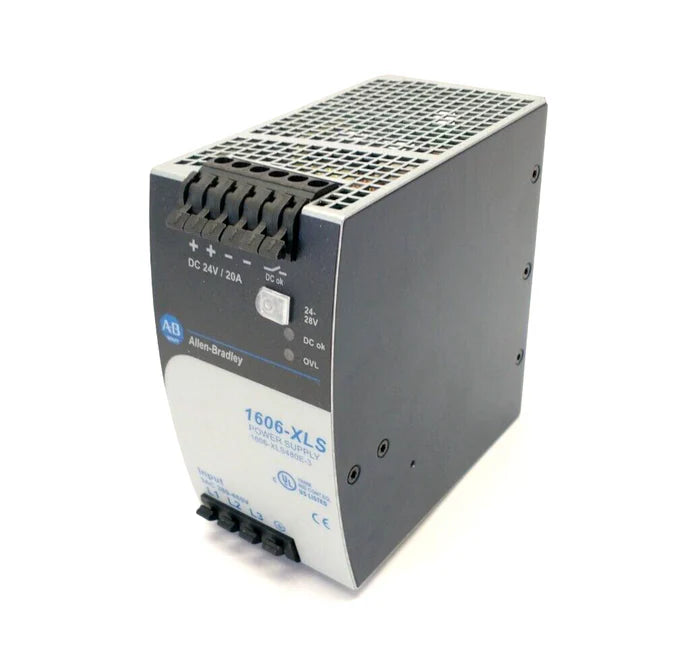

The Allen-Bradley 1606-XLS480E-3 is a Performance Power Supply. This power supply has a compact, small form factor design which deliver an output voltage of 24-28VDC, output current of 20 A and output power of 480 Watts. To operate this power supply, it requires an input supply voltage of 3-Phase, 380-480VAC.
The 1606-XLS480E-3 has a typical power factor of 0.94 with an active input inrush current limiter. It has an efficiency of 95% and typical power loss of 25.3 Watts. It has a Mean-Time Between Failure (MTBF) of 690 kh and minimum lifetime of 105 kh at an operating temperature of +40 deg. Celsius.
Detailed output characteristics of the 1606-XLS480E-3 include a voltage adjustment range of 24-24VDC, output current range of 20…17.5 A, 50% power reserve, maximum ripple and noise of 100 mV.

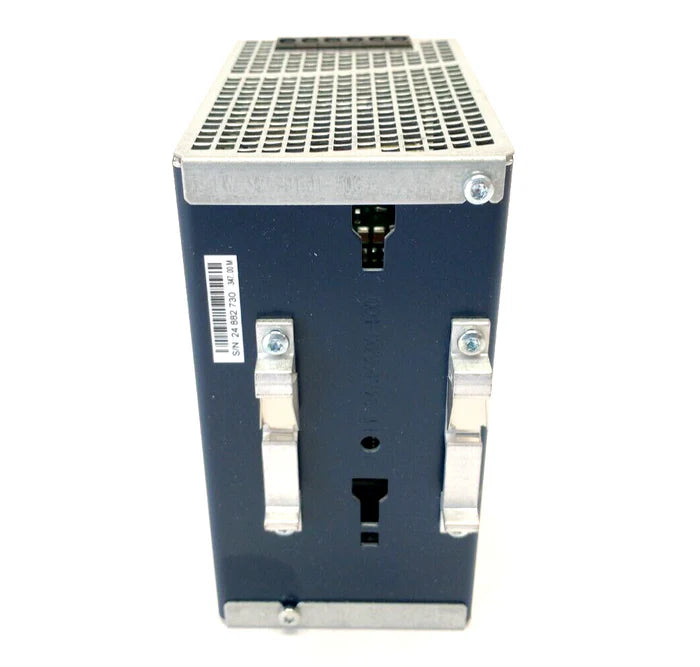

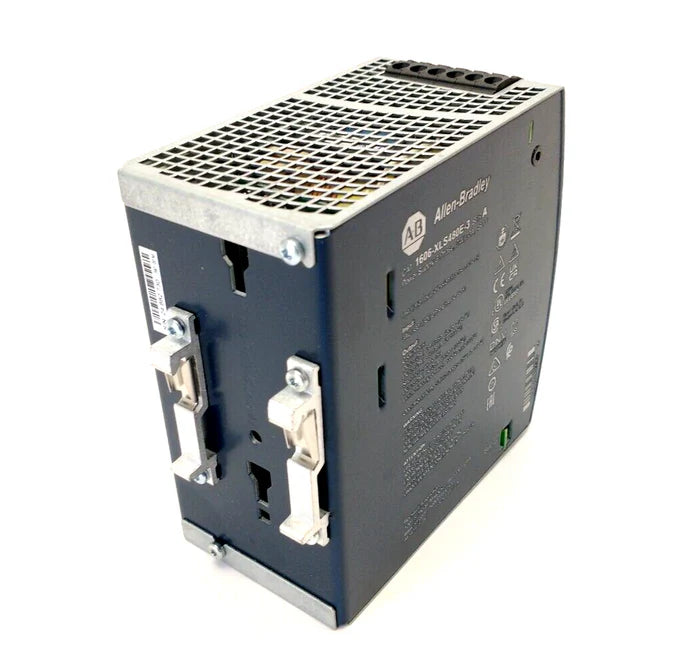

The 1606-XLS480E-3 is a DIN rail mounted device. Additionally, it supports single or parallel operation for use in applications that require high-availability.
The 1606-XLS480E-3 can be used to provide power to a wide variety of devices. It can be used as power supply to energize electrical and automation components such as Human Machine Interface (HMI) as well as control voltage for providing power to sourcing and sinking modules, 24VDC relays, buzzer, horns, pilot lamps and other devices.

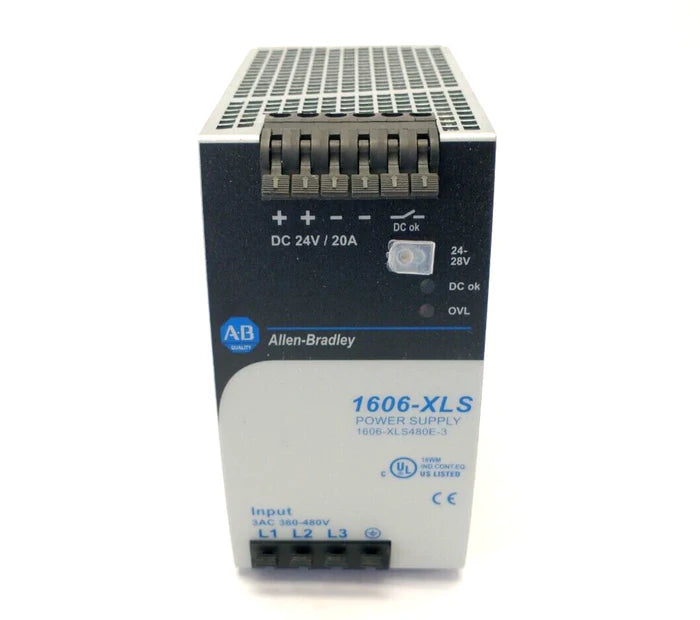

The 1606-XLS480E-3 is provided with spring clamp connection terminals, with DC OK relay contact that may be used to provide feedback regarding the output state of the power supply. This contact output may be wire to indicating devices even Programmable controllers.
With a compact footprint, the 1606-XLS480E-3 power supply saves panel space.
The 1606-XLS480E-3 power supply features an average input frequency of 50/60 Hertz and it uses LED indicators to ensure optimal productivity. The 1606-XLS480E-3 power supply comes with an efficiency rating of 94.8% with the IP 20 protection rating. The shipping weight is 0.87 kilograms and the unit has a height of 124 millimeters, a width of 65 millimeters, and a depth of 127 millimeters. The 1606-XLS480E-3 power supply meets various standards, including the UL 508, IEC 60950, EN 60950, and CE standards. The 1606-XLS480E-3 power supply is suitable for supporting loads that come with high short-term power requirements without causing a shutdown on the applications. For optimal performance, the 1606-XLS480E-3 should be installed and used at an ambient operating temperature range of -25 degrees Celsius to 70 degrees Celsius and stored at an ambient temperature range of -40 to 85 degrees Celsius. The 1606-XLS480E-3 power supply comes with electronic overload protection.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
