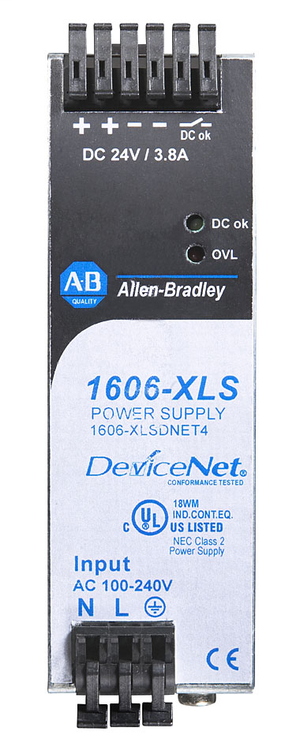

1606-XLSDNET4 | Allen-Bradley Switched Mode Power Supply

Description

The Allen-Bradley 1606-XLSDNET4 is a switched mode power supply with integrated DeviceNet functionality. It provides a 24V DC output and supports network-based monitoring and control of power supply parameters.

Technical Specifications

Information About 1606-XLSDNET4

The Allen-Bradley 1606-XLSDNET4 is a DIN rail-mounted switched mode power supply with integrated DeviceNet communication capabilities. Designed for advanced industrial applications, it delivers stable 24V DC power output while providing real-time monitoring and diagnostics over a DeviceNet network. This enhances system transparency, streamlines troubleshooting, and supports predictive maintenance.

Key Features:

Electrical Specifications:

• Input Voltage Range: 85–264V AC (wide range for global compatibility)

• Output Voltage: 24V DC

• Output Current: 4 A

• Rated Power: 96 W

• Efficiency: Up to 90%

• Ripple and Noise: Low output ripple for sensitive equipment

Communication and Monitoring:

• Integrated DeviceNet interface

• Enables remote monitoring of output voltage, current, temperature, and status

• Supports fault detection and alarm signaling

• Compatible with DeviceNet-enabled PLCs and controllers

Design and Protection:

• DIN rail mountable for easy installation

• Compact housing to save panel space

• Overload, overvoltage, and short-circuit protection

• Passive air cooling (no fan) for silent operation

• LED indicators for status diagnostics

The 1606-XLSDNET4 not only supplies reliable 24V DC power but also adds smart diagnostics via DeviceNet, making it ideal for advanced automation environments that require proactive maintenance and high system uptime.
