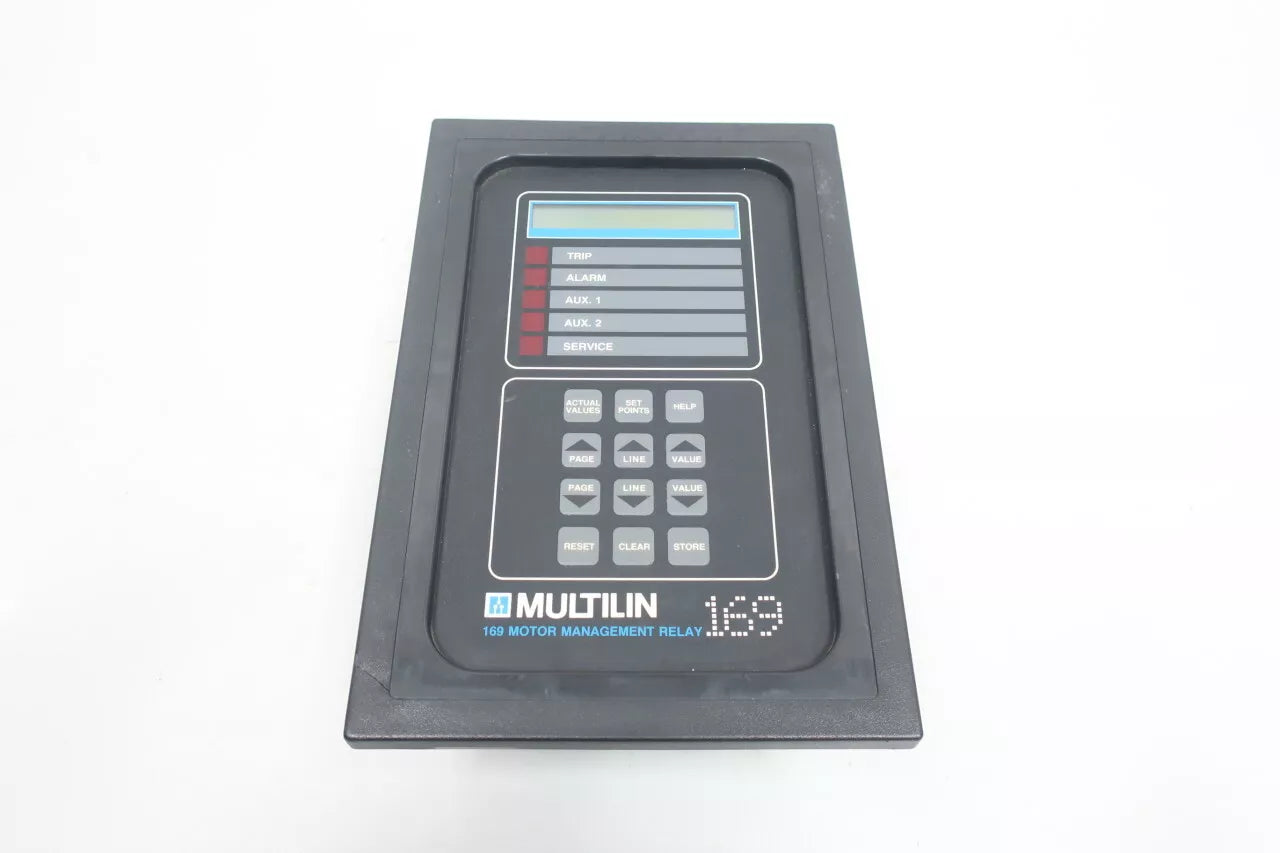

169-100P-120 | General Electric Motor Management Relay

Description

Extending system life and reducing downtime, GE Multilin's 169-100P-120 is a Motor Management Relay intended for the control and safeguarding of motor systems.

Technical Specifications

Information About 169-100P-120

The General Electric 169-100P-120 is a sophisticated Time Delay Relay designed to provide reliable control and precise timing in various industrial applications. Categorized under Controls & Indicators and subcategorized as a Time Delay Relay, this component is engineered to enhance the functionality and performance of control systems.

The 169-100P-120 Time Delay Relay is equipped with robust relay contacts that can handle a maximum operating current of 10 amps. This high current capacity ensures the relay can manage substantial loads, making it suitable for a wide range of industrial applications. Additionally, the relay contacts have a minimum permissible load of 5 VDC at 100 mA, ensuring reliable operation even at lower current levels.

One of the key features of the 169-100P-120 is its RTD Trip/Alarm Setpoint Range, which spans from 0 to 200°C. This broad range allows for precise monitoring and control of temperature-related processes, providing critical protection and ensuring optimal operation of the system. The relay's display operational range of 0°C to +55°C further enhances its versatility, enabling it to function effectively in various environmental conditions.

The operating temperature range of the 169-100P-120 is –10°C to +60°C, indicating its ability to perform reliably in both low and high-temperature environments. This wide temperature range ensures that the relay can be deployed in diverse industrial settings without compromising its performance.

In terms of electrical inputs, the relay accommodates a phase current input range of 0.05 to 12 times the phase CT primary amps setpoint. This capability allows for precise monitoring of phase currents, providing essential protection against overcurrent conditions and enhancing the safety and reliability of the control system.

The 169-100P-120 Time Delay Relay is also integrated with EnerVista 169 software, which provides advanced monitoring, configuration, and diagnostic capabilities. This software enhances the functionality of the relay, allowing users to set parameters, monitor real-time data, and perform diagnostics efficiently. EnerVista 169 simplifies the management of the relay, ensuring optimal performance and ease of use.

General Electric has designed the 169-100P-120 with durability and reliability in mind. Its robust construction and high-quality materials ensure long-term stability and consistent performance in demanding industrial environments. The relay is built to withstand harsh conditions, including temperature fluctuations and electrical disturbances, making it a dependable component for critical control applications.

In summary, the General Electric 169-100P-120 Time Delay Relay is a high-performance component designed for precise control and reliable operation in industrial settings. Its robust relay contacts, wide RTD Trip/Alarm Setpoint Range, and versatile operating temperature range make it suitable for a variety of applications. The integration of EnerVista 169 software provides advanced monitoring and configuration capabilities, enhancing the relay's functionality and ease of use. With its durable construction and reliable performance, the 169-100P-120 is a valuable asset for enhancing the efficiency and safety of industrial control systems.
