170AAI14000 | Schneider Electric | Distributed analog input
- Regular price
- $479.00
- Sale price
- $479.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 170AAI14000
Description
Technical Specifications
Part # |
170AAI14000C |
Manufacturer |
SCHNEIDER ELECTRIC |
Category |
PLCs/Machine Control |
Subcategory |
VDC Logic I/O Module Range of Product |
Range of Product |
Modicon Momentum automation platform |
Product or Component Type |
Analogue input base |
Analogue Input Number |
16 |
Analogue Input Type |
Single ended |
Type of Filter |
Low pass input filter 10 kHz |
Update Time |
25 ms |
Isolation Between Channels and Ground |
1780 V AC for 1 minute |
Isolation Between Supply and Ground |
500 V for 1 minute |
Permissible Common Mode Voltage |
100 V 47...63 Hz DC between channels to ground<br>250 V 47...63 Hz AC between channels to ground |
External Power Requirement |
+/- 30 V DC |
Maximum Power Dissipation in W |
5.55 W |
Reverse Polarity Protection |
Internal |
Protection Type |
Internal 2 A slow-blow |
Associated Fuse Rating |
500 mA, fast blow |
Marking |
CE |
Local Signalling |
For channel status 16 LEDs |
Electrical Connection |
2 connectors for removable terminal blocks |
Current Consumption |
305 mA 24 V DC |
Depth |
1.87 in (47.5 mm) |
Height |
4.92 in (125 mm) |
Width |
5.57 in (141.5 mm) |
Net Weight |
0.47 lb(US) (0.215 kg) |
Protective Treatment |
TC |
Resistance to Electrostatic Discharge |
4 kV contact IEC 801-2<br>8 kV on air IEC 801-2 |
Resistance to Electromagnetic Fields |
9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3 |
Ambient Air Temperature for Operation |
32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage |
-40…185 °F (-40…85 °C) |
Relative Humidity |
95 % without condensation |
Operating Altitude |
<= 16404.2 ft (5000 m) |
Information About 170AAI14000

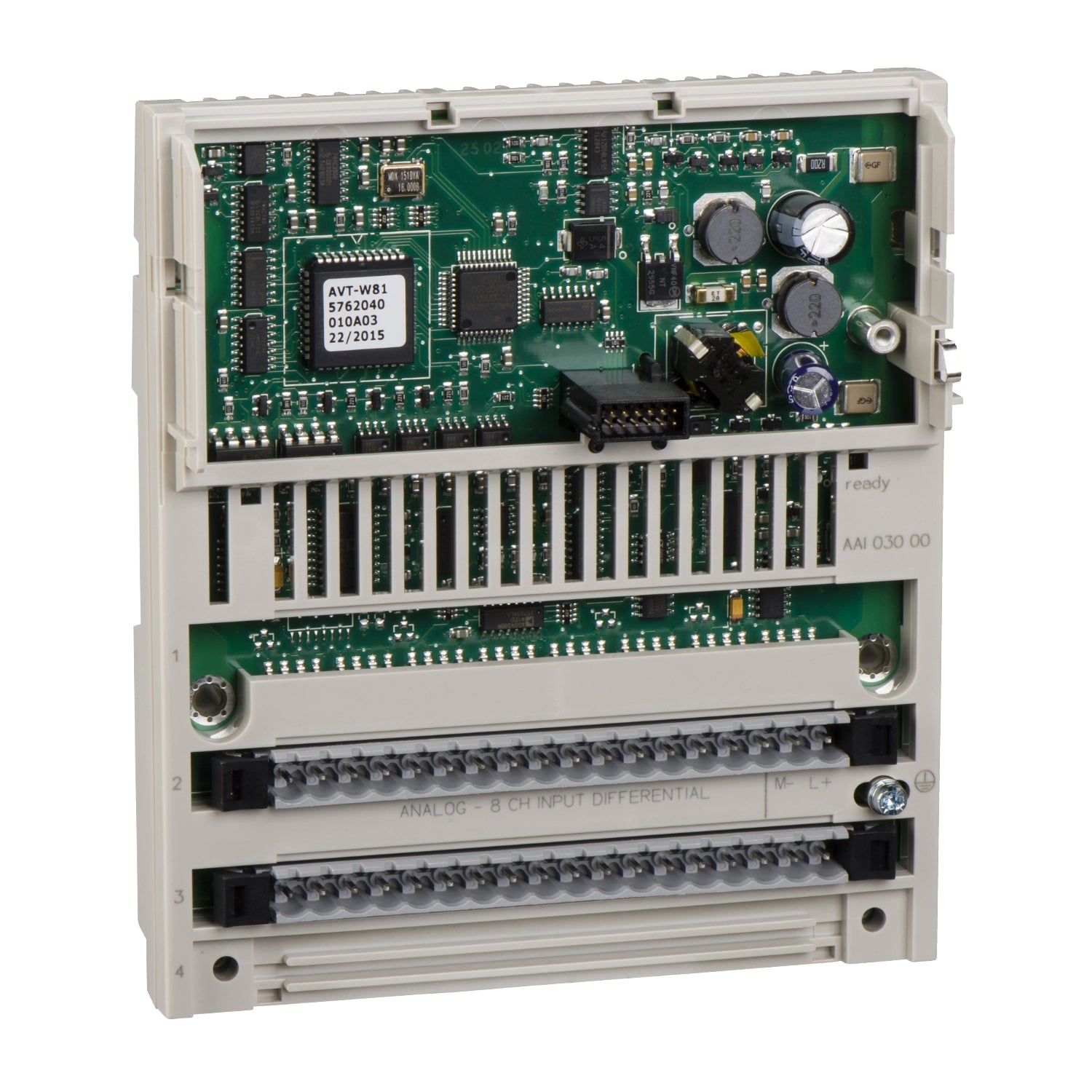

The 170AAI14000 is a distributed analog input module within the Modicon Momentum product line, designed specifically for IP20 monoblock I/Os. Featuring 16 inputs, this analog input base provides a full 16-bit signed resolution for precise data acquisition. It supports analog input ranges spanning from 4mA to 20mA, as well as ±10V and ±5V input ranges.
This module ensures high levels of safety with isolation between channels and ground rated at 1780V AC, and between supply and ground at 500V. It comes equipped with 2 removable terminal blocks for easy electrical connections, facilitating installation and maintenance procedures.
Channel status signaling is enhanced through the inclusion of 16 LEDs, providing clear visual feedback for monitoring and diagnostics. The module's compact dimensions of 141.5mm (width) x 47.5mm (depth) x 125mm (height) and lightweight construction weighing 0.215kg make it suitable for various infrastructures, energy systems, material handling setups, and simple machine control applications.
Certified by CE, CSA, FM Class 1 Division 2, and UL, the 170AAI14000 module adheres to stringent quality and safety standards. It is designed for wall-mounting, offering flexible deployment options to suit diverse industrial environments.
The Modicon Momentum series is renowned for its modular and versatile design, allowing components to seamlessly integrate and configure for a wide range of distributed I/O and control applications. Comprising 4 fundamental components, the Momentum system facilitates easy assembly, enabling users to create customized control systems or subsystems tailored to specific requirements.
