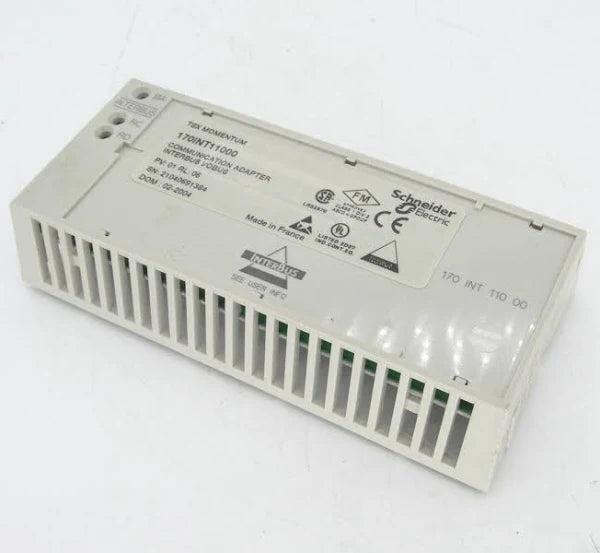

170INT11000 | Schneider Electric Modicon Momentum - Interbus communication adaptor - twisted pair
- Regular price
- $242.00
- Sale price
- $242.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 170INT11000
Description
The Schneider Electric 170INT11000 is a Modicon Momentum Interbus communication adaptor for twisted pair wiring, enabling seamless communication in industrial automation systems.
Technical Specifications
| Brand | Schneider Electric |
| Category | Computer |
| Subcategory | Communication Cable/Adaptor |
| Part Number | 170INT11000 |
| Enclosure | IP20 |
| Indicator | BUS ENABLE (BA) 1 LED GREEN)-REMOTE BUS CHECK (RC) 1 LED GREEN)-REMOTE BUS DISABLED (RD) 1 LED GREEN) |
| Power Supply | FROM I/O BASE |
| Storage Temperature | -40-85 degrees C |
| Temperature Rating | 0-60 A degrees C |
| Type | Interbus communication adaptor |
| For Use With | Modicon M221, M241, M251 Logic Controller |
| Series | Modicon Momentum Series |
| Local signalling | 1 LED green module powered up or in service (RUN) 1 LED red fault state (ERR) 1 LED yellow recieve or send data (COM) |
| Communication port protocol | Interbus generation SUPI 2 |
| Method of access | Continuous shift register Master/Slave |
| Transmission rate | 500 kbit/s |
| Transmission support medium | Twisted pair |
| Topology | Ring |
| Number of devices | 0...254 |
| Cable length | <= 41994.75 ft (12800 m) <= 1312.34 ft (400 m) between two modules |
| Fail state | Fail safe |
| Control parameter | CRC-16 |
| Supply | From I/O base |
| Marking | CE |
Information About 170INT11000
This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The Interbus communication adaptor supports ring topology. It offers twisted pair cable transmission support medium and 500kbps data transmission rate. The adaptor is accessible through the continuous shift register and master/slave method. It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Disctrete I/O Bases Features:
IP20 monoblock I/O bases: Provide the foundation for the rest of the Momentum control system and serve as the mounting base for communication adapters, processors or option adapters. > 30 I/O module types available: analogue, discrete, multi-function, etc.
Processor adapters: Operate with a single local I/O module, or in systems with up to 128 modules servicing 8192 I/O points. Built-in distributed I/O communication port, Modbus TCP/IP-Ethernet or Modbus RS232 serial communication, and embedded Web pages
Option adapters: Provide additional networking capabilities to the processors, as well as a time-of-day clock and battery back up
Communication adapters: Snap onto any of the I/O modules, including Modbus TCP/IP, Modbus Plus, FIPIO, INTERBUS, PROFIBUS DP, and DeviceNet
