171CBU98090 | Schneider Electric Unity M1E processor
- Regular price
- $2,794.00
- Sale price
- $2,794.00
- Regular price
-
Do you need help?

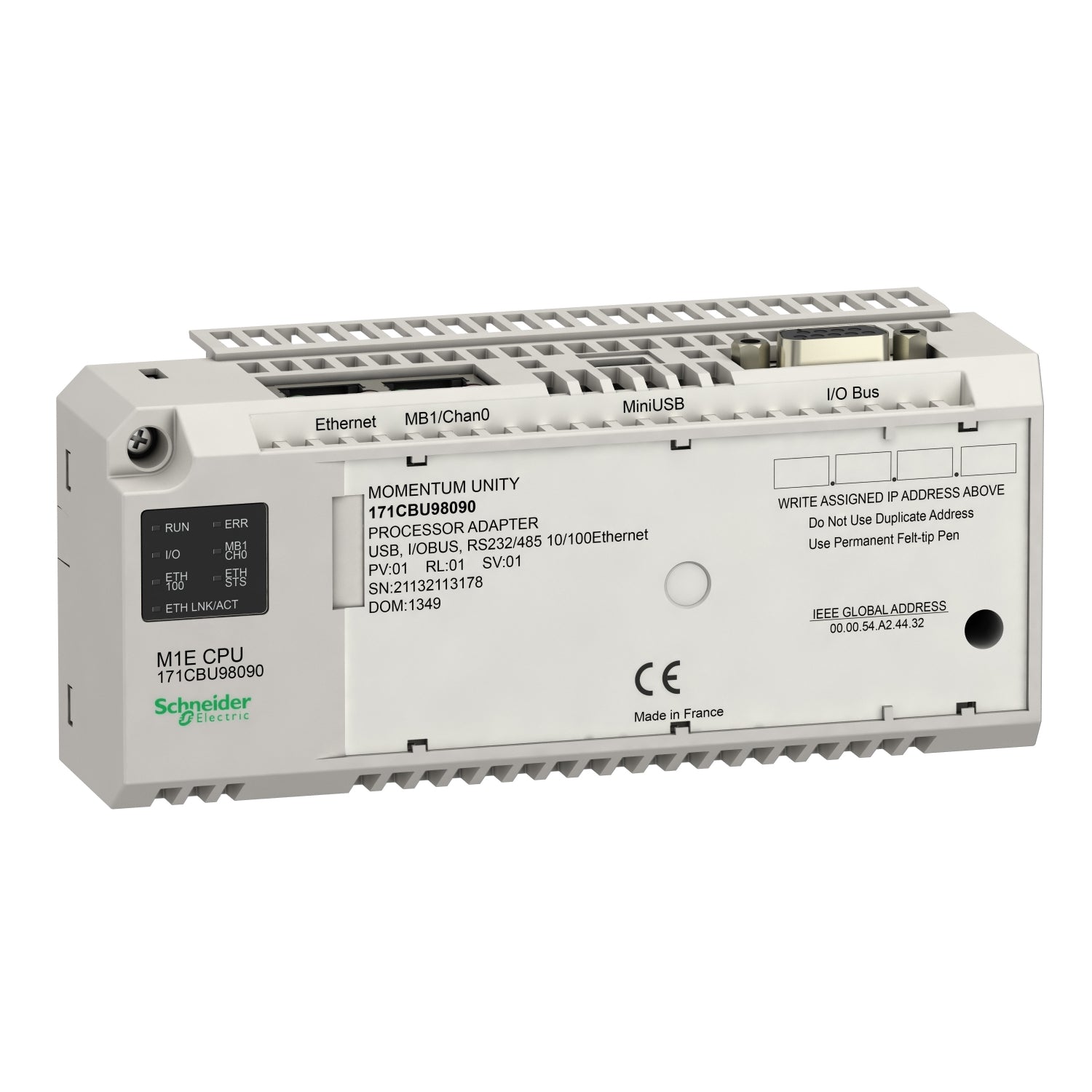

Product Description P/N: 171CBU98090
Description
The 171CBU98090, classified as a Unity M1E processor, is a component within the Modicon Momentum range, designed for distributed control architecture with IP20 monoblock I/Os. Equipped with integrated Ethernet, USB, RS232/485 connection ports, this processor facilitates seamless communication and connectivity.
Utilizing the Spear 320s processor, the Unity M1E processor supports Modbus messaging of 125 words and 200 I/O messages per second. Enhanced with Unity Pro software, it offers web services including CPU status, Ethernet statistics, bandwidth monitoring, home pages, and properties.
With dimensions measuring 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighing 0.163kg, it conforms to IP20 standards, ensuring protection against ingress of solid objects.
Primarily applied in infrastructures and energy, material handling, and simple machine control, this product is certified by CE, FM, and C-Tick, meeting UL 508, CSA C22.2 No 142, and EN/IEC 61131-2 standards. It is compatible with Modicon STB I/O and supports 35mm symmetrical DIN rail mount.
Technical Specifications
Part # |
171CBU98090 |
Manufacturer |
SCHNEIDER ELECTRIC |
Brand |
MODICON |
Category |
PLCs/Machine Control |
Subcategory |
PLC Module/Rack |
Range of Product |
Modicon Momentum automation platform |
Product or component type |
Processor |
Product compatibility |
Modicon STB I/O |
Integrated connection type |
Ethernet |
Software designation |
Unity Pro |
Communication service |
- Modbus messaging: 125 words, 200 I/O message per second |
Processor name |
Spear 320s |
Word length |
32 bit |
Supply voltage limits |
4.75…5.25 V |
Clock frequency |
333 MHz |
Register words |
26048 |
I/O limit processor capacity |
2048 inputs/2048 outputs |
Number of devices |
32 Modbus |
Exact time for 1 Kinstruction |
83 ns |
Marking |
CE |
Current consumption |
500 mA at 5 V DC |
Module format |
Standard |
Product mounting |
35 mm symmetrical DIN rail |
Height |
60.6 mm |
Width |
144 mm |
Depth |
53.47 mm |
Net weight |
0.163 kg |
IP degree of protection |
IP20 |
Shock resistance |
15 gn during 11 ms sinusoidal vibrations |
Resistance to electromagnetic fields |
15 V/m 80...2700 MHz conforming to EN/IEC 61000-4-3 |
Ambient air temperature for operation |
0…60 °C |
Ambient air temperature for storage |
-40…85 °C |
Relative humidity |
5…96 % |
Operating altitude |
<= 2000 m |
Information About 171CBU98090
The 171CBU98090, known as the Unity M1E processor, is a component of the Modicon Momentum range, designed for distributed control architecture and featuring IP20 monoblock I/Os. This processor is equipped with integrated Ethernet and USB connection ports, providing enhanced connectivity options.
Powered by the Spear 320s processor, the Unity M1E offers efficient communication services, including Modbus messaging at 125 words and support for 200 I/O messages per second. With Unity Pro software, users gain access to a range of web services such as CPU status, Ethernet statistics, bandwidth monitoring, and configurable home pages and properties.
The IP20-rated Unity M1E processor has compact dimensions of 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighs 0.163kg, making it suitable for various applications. Its primary usage areas include infrastructures, energy management, material handling, and simple machine control.
This product holds certifications from CE, FM, and C-Tick, and complies with standards such as UL 508, CSA C22.2 No 142, and EN/IEC 61131-2, ensuring its adherence to quality and safety regulations. Additionally, it is compatible with Modicon STB I/O systems and supports mounting on 35mm symmetrical DIN rails for easy installation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The 171CBU98090, classified as a Unity M1E processor, is a component within the Modicon Momentum range, designed for distributed control architecture with IP20 monoblock I/Os. Equipped with integrated Ethernet, USB, RS232/485 connection ports, this processor facilitates seamless communication and connectivity.
Utilizing the Spear 320s processor, the Unity M1E processor supports Modbus messaging of 125 words and 200 I/O messages per second. Enhanced with Unity Pro software, it offers web services including CPU status, Ethernet statistics, bandwidth monitoring, home pages, and properties.
With dimensions measuring 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighing 0.163kg, it conforms to IP20 standards, ensuring protection against ingress of solid objects.
Primarily applied in infrastructures and energy, material handling, and simple machine control, this product is certified by CE, FM, and C-Tick, meeting UL 508, CSA C22.2 No 142, and EN/IEC 61131-2 standards. It is compatible with Modicon STB I/O and supports 35mm symmetrical DIN rail mount.
Technical Specifications
Part # |
171CBU98090 |
Manufacturer |
SCHNEIDER ELECTRIC |
Brand |
MODICON |
Category |
PLCs/Machine Control |
Subcategory |
PLC Module/Rack |
Range of Product |
Modicon Momentum automation platform |
Product or component type |
Processor |
Product compatibility |
Modicon STB I/O |
Integrated connection type |
Ethernet |
Software designation |
Unity Pro |
Communication service |
- Modbus messaging: 125 words, 200 I/O message per second |
Processor name |
Spear 320s |
Word length |
32 bit |
Supply voltage limits |
4.75…5.25 V |
Clock frequency |
333 MHz |
Register words |
26048 |
I/O limit processor capacity |
2048 inputs/2048 outputs |
Number of devices |
32 Modbus |
Exact time for 1 Kinstruction |
83 ns |
Marking |
CE |
Current consumption |
500 mA at 5 V DC |
Module format |
Standard |
Product mounting |
35 mm symmetrical DIN rail |
Height |
60.6 mm |
Width |
144 mm |
Depth |
53.47 mm |
Net weight |
0.163 kg |
IP degree of protection |
IP20 |
Shock resistance |
15 gn during 11 ms sinusoidal vibrations |
Resistance to electromagnetic fields |
15 V/m 80...2700 MHz conforming to EN/IEC 61000-4-3 |
Ambient air temperature for operation |
0…60 °C |
Ambient air temperature for storage |
-40…85 °C |
Relative humidity |
5…96 % |
Operating altitude |
<= 2000 m |
Information About 171CBU98090
The 171CBU98090, known as the Unity M1E processor, is a component of the Modicon Momentum range, designed for distributed control architecture and featuring IP20 monoblock I/Os. This processor is equipped with integrated Ethernet and USB connection ports, providing enhanced connectivity options.
Powered by the Spear 320s processor, the Unity M1E offers efficient communication services, including Modbus messaging at 125 words and support for 200 I/O messages per second. With Unity Pro software, users gain access to a range of web services such as CPU status, Ethernet statistics, bandwidth monitoring, and configurable home pages and properties.
The IP20-rated Unity M1E processor has compact dimensions of 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighs 0.163kg, making it suitable for various applications. Its primary usage areas include infrastructures, energy management, material handling, and simple machine control.
This product holds certifications from CE, FM, and C-Tick, and complies with standards such as UL 508, CSA C22.2 No 142, and EN/IEC 61131-2, ensuring its adherence to quality and safety regulations. Additionally, it is compatible with Modicon STB I/O systems and supports mounting on 35mm symmetrical DIN rails for easy installation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
