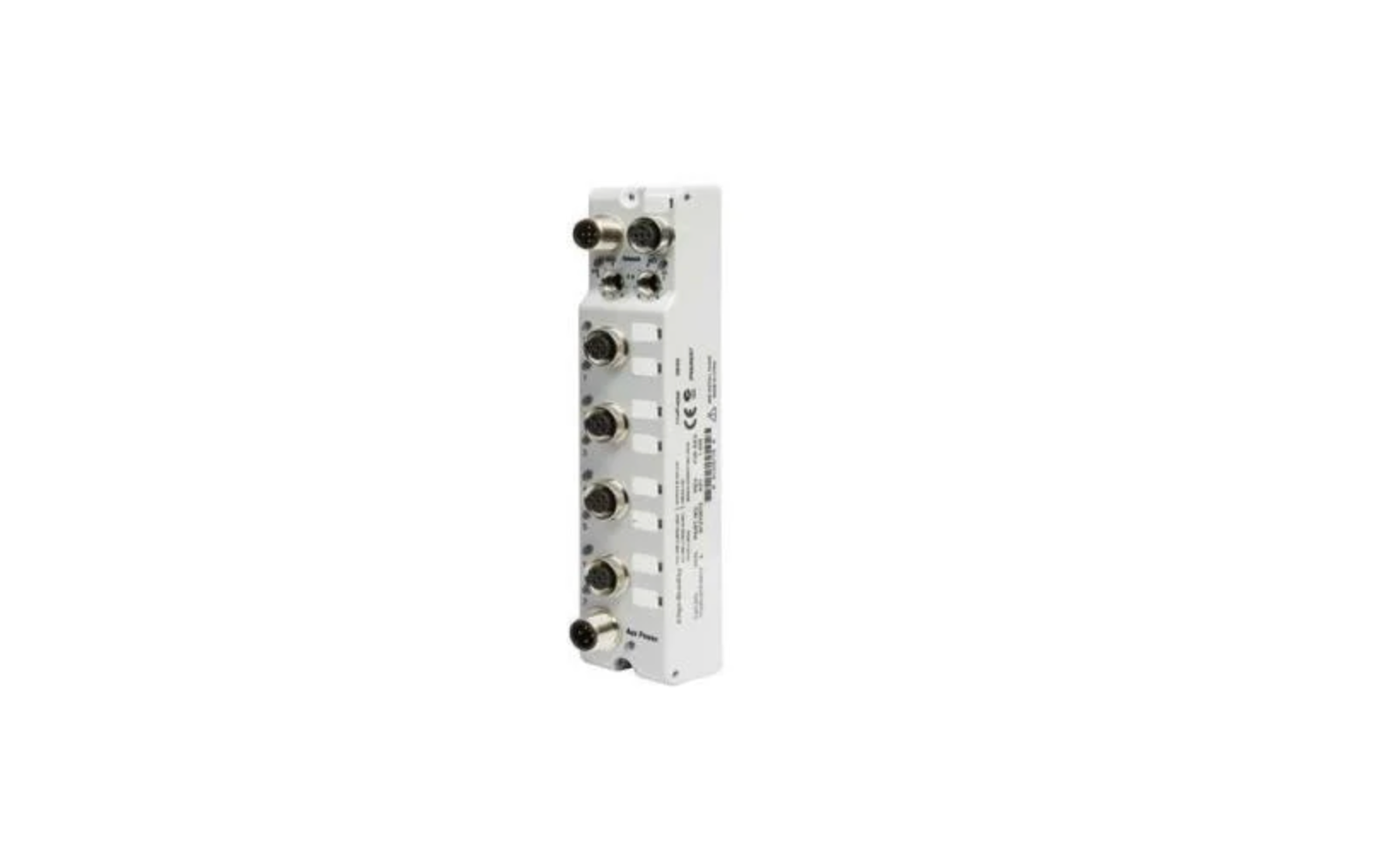

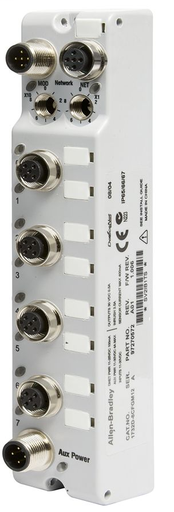

1732P-8CFGM12 | Allen-Bradley PROFIBUS 24VDC 8 SELECTABLE POINTS W/M12
- Regular price
- $3,524.00
- Sale price
- $3,524.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1732P-8CFGM12
Description
The Allen-Bradley 1732P-8CFGM12 is an ArmorBlock Guard I/O module designed for safety-rated distributed control over EtherNet/IP. It provides eight configurable safety I/O points with M12 connections for field devices.
Technical Specifications
| Degree of protection (IP) | IP65 |
| Depth | 174 mm |
| Front built-in possible | yes |
| Height | 48 mm |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Output current | 0.5 A |
| Permitted voltage at input | 24...24 V |
| Permitted voltage at output | 24...24 V |
| Type of electric connection | Screw connection |
| Type of output voltage | DC |
| Type of voltage (input voltage) | DC |
| Wall mounting/direct mounting | yes |
| Width | 69 mm |
Information About 1732P-8CFGM12
The 1732P-8CFGM12 is part of the Allen-Bradley ArmorBlock Guard I/O 1732 series, developed to deliver safety-rated modular I/O in a rugged, on-machine form factor. This module offers 8 configurable I/O points that can be set as inputs or outputs, supporting safety functions such as emergency stops, light curtains, and interlock devices. It communicates over EtherNet/IP using CIP Safety protocol, ensuring safe and reliable data exchange with GuardLogix controllers. Featuring sealed M12 connectors, the 1732P-8CFGM12 is IP67-rated, allowing direct installation on machines without protective enclosures. Its diagnostics capabilities and LED indicators simplify system monitoring and reduce troubleshooting time. Designed for harsh environments, it supports flexible topologies and enhances safety system integration.
Key Features:
- Design: Rugged ArmorBlock I/O design with IP67 rating for on-machine installation.
- Configurable I/O: 8 safety-rated configurable points, selectable as inputs or outputs.
- Connectivity: M12 connectors for direct connection to field devices.
- Network: EtherNet/IP with CIP Safety communication for safe data exchange.
- Compatibility: Integrates with GuardLogix controllers in safety systems.
- Diagnostics: LED indicators and built-in diagnostics for simplified troubleshooting.
- Safety/Protection: Supports functional safety applications such as E-stops and light curtains.
- Application Range: Ideal for robotics, machine safety, and distributed control in harsh environments.
The 1732P-8CFGM12 delivers the rugged performance and safety integration required for distributed I/O in modern industrial automation systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
