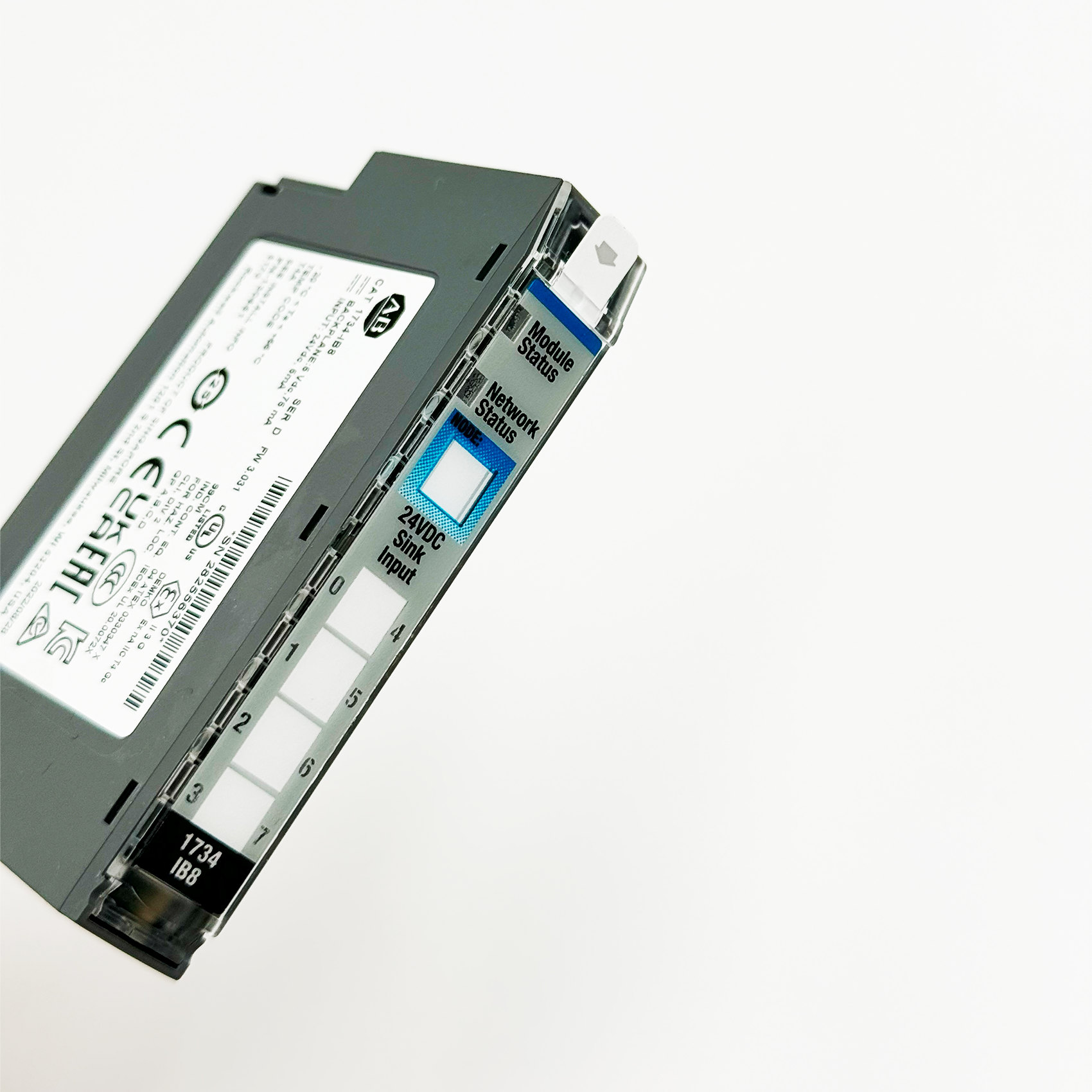

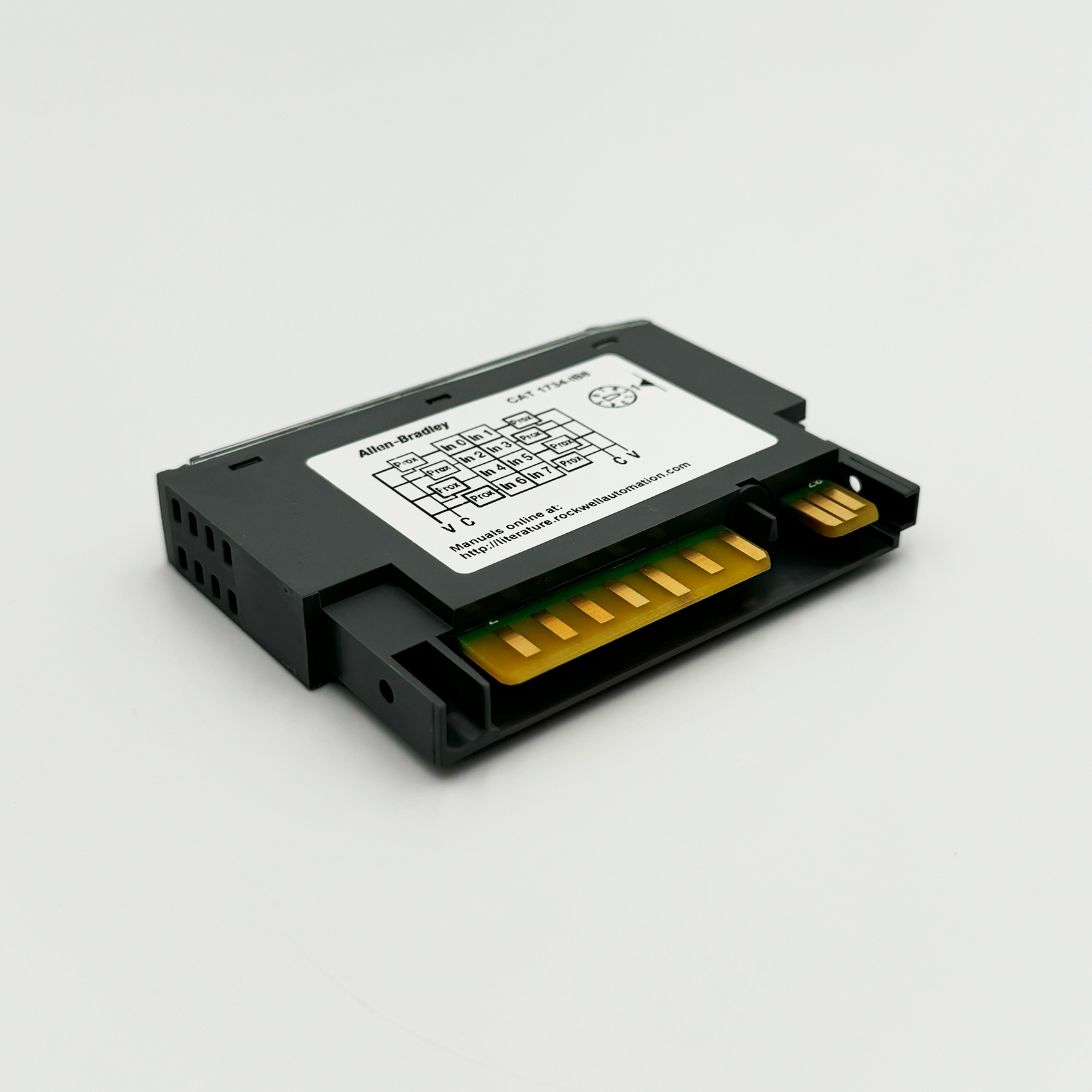

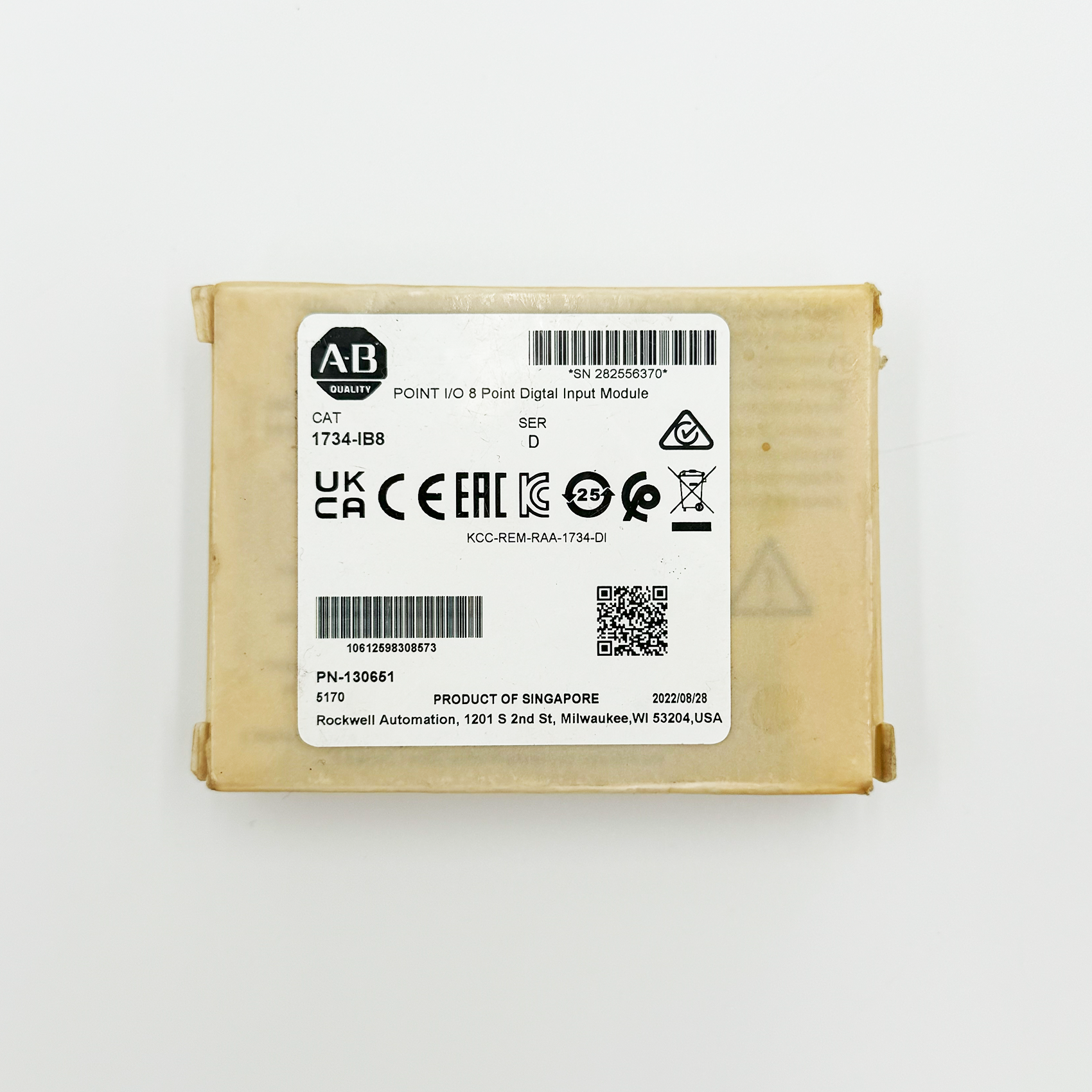

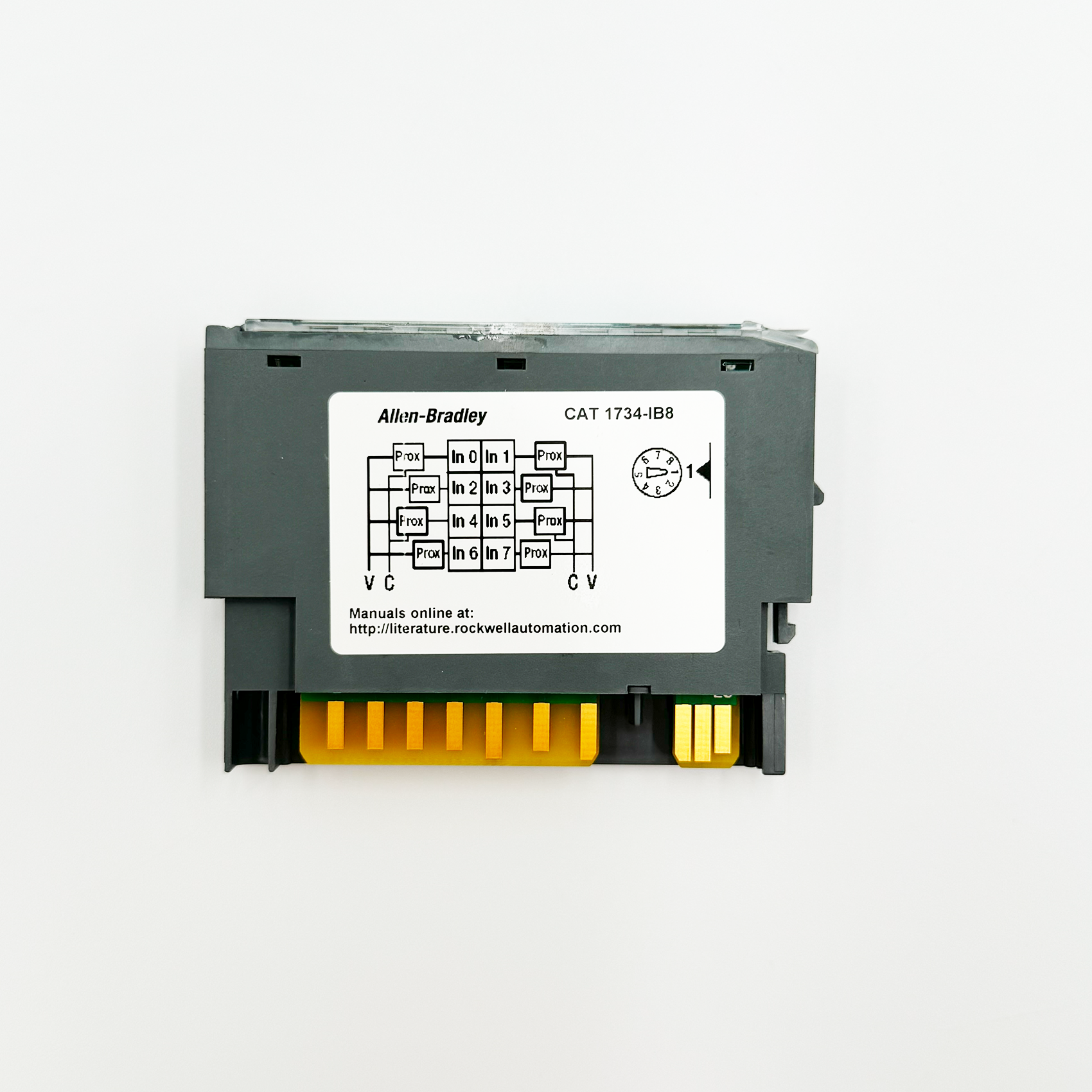

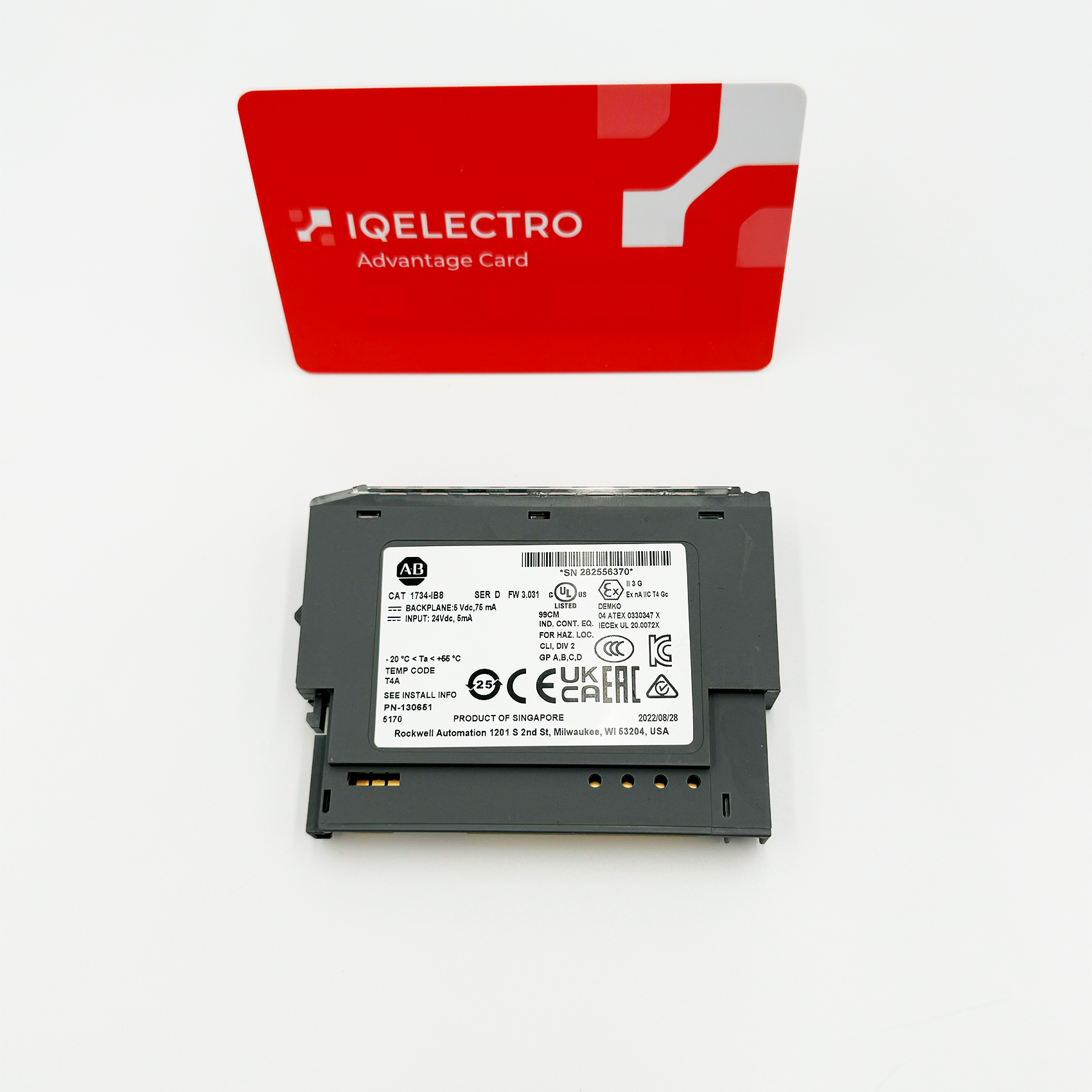

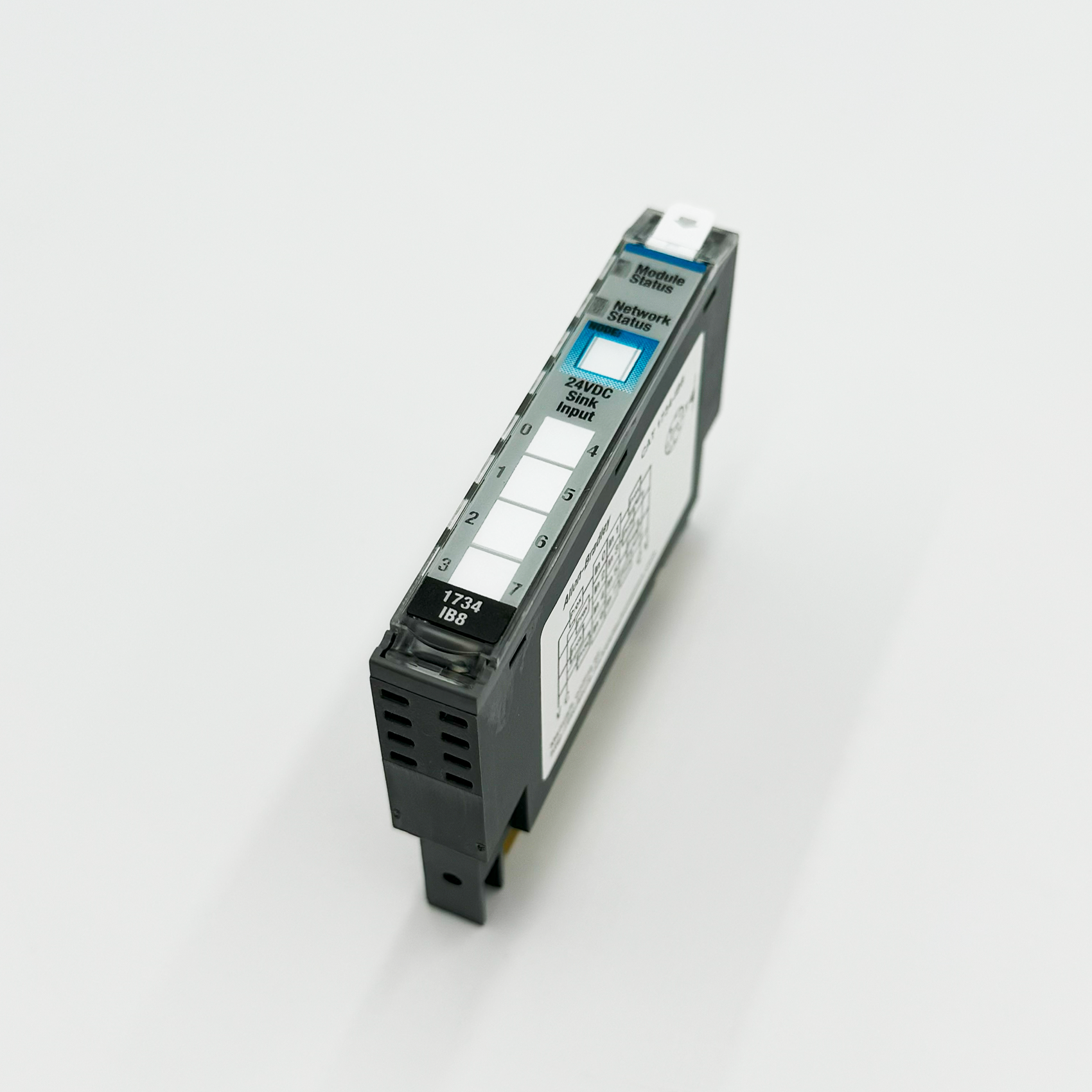

1734-IB8 | Allen-Bradley POINT Digital DC Input Module 24V DC 8Ch Sink
- Regular price
- $47.00
- Sale price
- $47.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1734-IB8
Description
The Allen-Bradley 1734-IB8 is a POINT I/O input module designed for monitoring discrete signals in automation systems. It provides 8 current sink (sinking) inputs for digital sensing applications. This unit is widely used in manufacturing, process control, and industrial automation environments.
Technical Specifications
| Condition | New / Never Used Surplus |
| Manufacturer | Rockwell Automation |
| No. of Inputs | 8; Sinking input |
| Input status indicators | 8 yellow, logic side |
| Module Status indicators | 1 green/red, logic sid |
| Module Location | 1734-TB or 1734-TBS wiring base assembly |
| Keyswitch position | 1 |
| Enclosure type rating | None (open-style) |
| Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Input Filter Time | 0.5 ms hardware plus 0...63 ms (user-selectable) |
| Input Current, nominal | 4mA @24VDC |
| Input Current range | 2-5mA |
| Input Voltage range | 10-28.8VDC |
| Power Dissipation | 1.6 Watt/5.5 BTU/hour |
| Brand | Allen-Bradley |
| Series | POINT I/O |
| Module Type | Digital DC Sinking Input |
| Input Voltage | 24 Volts DC |
| Part Number/Catalog No. | 1734-IB8 |
| POINTBus Current | 75 mA |
| Input Current Maximum | 5 milliamps |
Information About 1734-IB8
The 1734-IB8 is part of the Allen-Bradley POINT I/O 1734 series, developed for modular and distributed I/O applications. This module offers 8 sinking inputs with a 24V DC nominal voltage rating, allowing reliable signal acquisition from field devices such as switches and sensors. The unit connects to POINTBus backplanes and integrates with Logix controllers for seamless data exchange and control. Its compact design enables efficient installation on DIN rails while supporting high-density I/O configurations. Designed for flexible automation systems, the 1734-IB8 ensures reliable operation in demanding industrial environments.
Key Features:
- Design: Compact modular I/O design for distributed control systems.
- Input Channels: 8 sinking digital inputs for 24V DC field devices.
- Connectivity: Integrates via POINTBus backplane for communication with Logix controllers.
- Performance: Supports fast and reliable signal acquisition from sensors and switches.
- Compatibility: Works seamlessly with Allen-Bradley Logix family controllers and POINT I/O system.
- Installation: DIN rail mounting with modular expansion capability.
- Safety/Protection: Built with diagnostic and status indicators for monitoring channel operation.
- Application Range: Suitable for machine control, factory automation, and process industries.
The 1734-IB8 delivers the reliability and precision required for modern industrial automation.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
