1734-IE4S | Allen-Bradley POINT Guard I/O Safety 4-Channel Analog Input
- Regular price
- $602.00
- Sale price
- $602.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1734-IE4S
Description

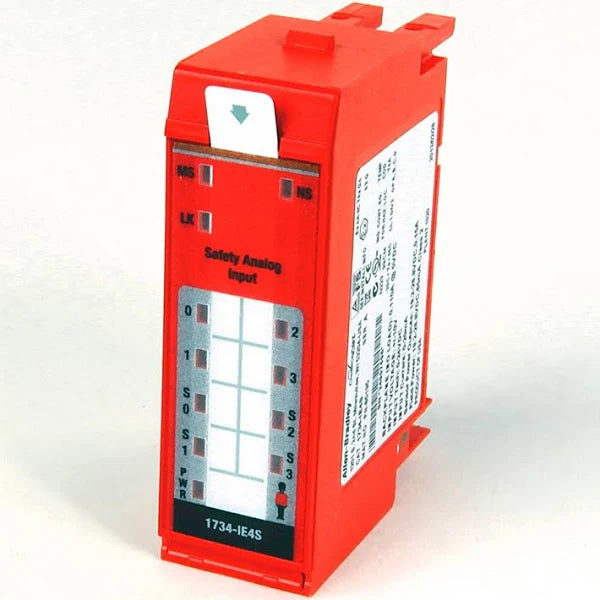

The Allen-Bradley 1734-IE4S is a POINT Guard I/O safety analog input module. It provides four single-ended input channels that can be configured for voltage, current, or tachometer signals. Designed for integration into GuardLogix safety systems via EtherNet/IP with CIP Safety, the module offers reliable signal acquisition for safety-critical industrial applications.
Technical Specifications
| Brand | Allen-Bradley |
| Series | POINT I/O |
| Part Number | 1734-IE4S |
| Manufacturer | Rockwell Automation |
| Module Type | Safety Analog Input Module |
| Inputs | 4 single-ended/module |
| Input Type | Voltage, Current, or Tachometer |
| Modes | Bipolar or Unipolar |
| ADC Resolution | 12 bits |
Information About 1734-IE4S
The 1734-IE4S belongs to the POINT Guard I/O family, which allows mixing standard and safety I/O on the same POINTBus platform. Each of its four inputs can be configured independently for ±5 V, ±10 V, 0–5 V, 0–10 V, 0–20 mA, 4–20 mA, or 0–24 V tachometer signals. The tachometer input supports frequencies from 1 Hz to 1000 Hz with configurable ON/OFF thresholds in 1 V increments. The module uses a 12-bit ADC with built-in filtering options (1, 5, 10, or 50 Hz), providing flexible trade-offs between speed and noise immunity. Accuracy is ±0.5% full scale in voltage mode, ±0.6% in current mode, and ±2% in tachometer mode at 25 °C. It is factory-calibrated and does not require user calibration. Power is supplied via the POINTBus (110 mA at 5 VDC) and external field power (19.2–28.8 VDC, 65 mA). The module also provides four 24 VDC sensor power outputs (150 mA each, 600 mA total) with overcurrent and open-load detection. It operates in the –20…55 °C range with shock/vibration resistance suitable for industrial environments.
Key Features:
- Design: POINT Guard I/O safety analog input module.
- Channels: 4 single-ended inputs, configurable per channel.
- Signal Types: Voltage (±5 V, ±10 V, 0–5 V, 0–10 V), Current (0–20 mA, 4–20 mA), Tachometer (0–24 V, 1–1000 Hz).
- Resolution: 12-bit ADC with selectable digital filters (1, 5, 10, 50 Hz).
- Accuracy: ±0.5% full scale (voltage), ±0.6% (current), ±2% (tachometer).
- Diagnostics: Over-range, under-range, open-load, and overcurrent detection.
- Sensor Power Outputs: 4 × 24 VDC outputs, 150 mA each, 600 mA total.
- Power Requirements: 110 mA from POINTBus (5 VDC); 65 mA from 24 VDC field power.
- Environmental Ratings: Operating –20…55 °C, 5–95% RH, 30 G shock, 5 G vibration.
- Integration: Communicates via CIP Safety over EtherNet/IP for GuardLogix systems.
The 1734-IE4S combines flexible analog input capability with safety-rated design, making it a robust solution for monitoring sensors and feedback devices in safety-critical automation systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
