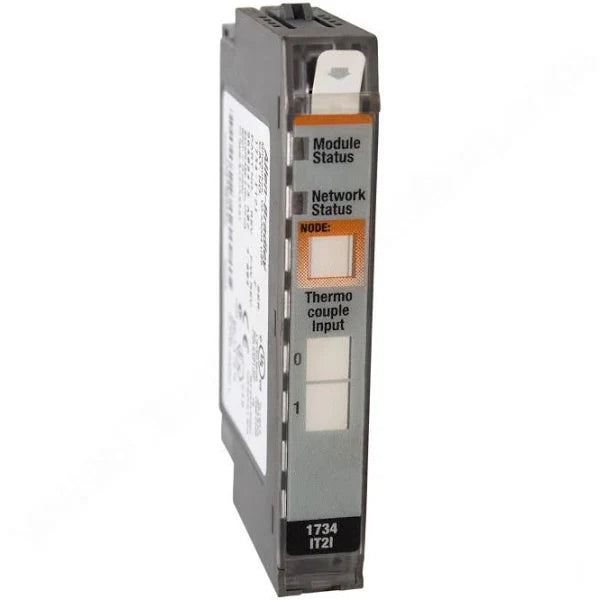

1734-IT2I | Allen-Bradley POINT I/O 24V DC 2-Channel Thermocouple Input Module
- Regular price
- $208.00
- Sale price
- $208.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1734-IT2I
Description
The Allen-Bradley 1734-IT2I is a POINT I/O Analog Temperature Input Module. It has 2 Thermocouple Inputs and a Resolution of 15 bits with an Input Voltage of 75 mV.
Technical Specifications
| Brand | Allen-Bradley |
| Series | POINT I/O |
| Part Number | 1734-IT2I |
| Manufacturer | Rockwell Automation |
| Module Type | Analog Temperature Input Module |
| Key Switch Position | 6 |
| Inputs | 2 Thermocouple |
| Resolution | 15 bits |
| Input Voltage | 75 mV |
| POINTBus Current | 175 milliamps |
Information About 1734-IT2I
The Allen-Bradley 1734-IT2I is a POINT isolated analog temperature input module. Two differential individually-isolated thermocouple inputs are available with this module. Eight bytes of scanner data (scanner Rx) and fault status data can be produced without consuming I/O data (scanner Tx). Status indicators let the users monitor the network status, module status, the status of input 0, and the status of input 1 in real time. The 1734-IT2I comes with a resolution of 15 bits at 2.5 µV/cnt. No external DC power supply is necessary, but the 1734-IT2I can only be installed to the 1734-TBCJC wiring base assembly. The 1734-IT2I measures 2.21 x 0.47 x 2.97 inches and it weighs 0.08 pounds or 0.036 kilograms. It has an open-style enclosure.
It has signed integer data formats with 4 temperature scales, Celsius, Fahrenheit, Kelvin, and Rankine, and 1 mV custom scale are available with the 1734-IT2I module and its conversion type is Delta Sigma. It also features alarms for conditions including under-range, over-range, cold junction compensation (CJC) open-wire detection, and level (low-low, low, high, high-high). The input voltage of the 1734-IT2I is +/- 75 mV, the voltage rating is 24 Volts DC, and the POINTbus current is 175 mA at 5 Volts DC. It has an impedance of 100 kiloohms and a resistance of 1 megaohm. It has a maximum power dissipation of 1 Watt and a maximum thermal dissipation of 3.3 BTU/hour. The continuous isolation voltage is 50 Volts, the operating temperature is -20 to 55 degrees Celsius, and the storage temperature is -4 to 85 degrees Celsius. The 1734-IT2I has a non-condensing relative humidity of 5 to 95% and an operating vibration of 5 g at 10 to 500 Hertz. The operating shock is 30 g and the non-operating shock is 50 g.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
