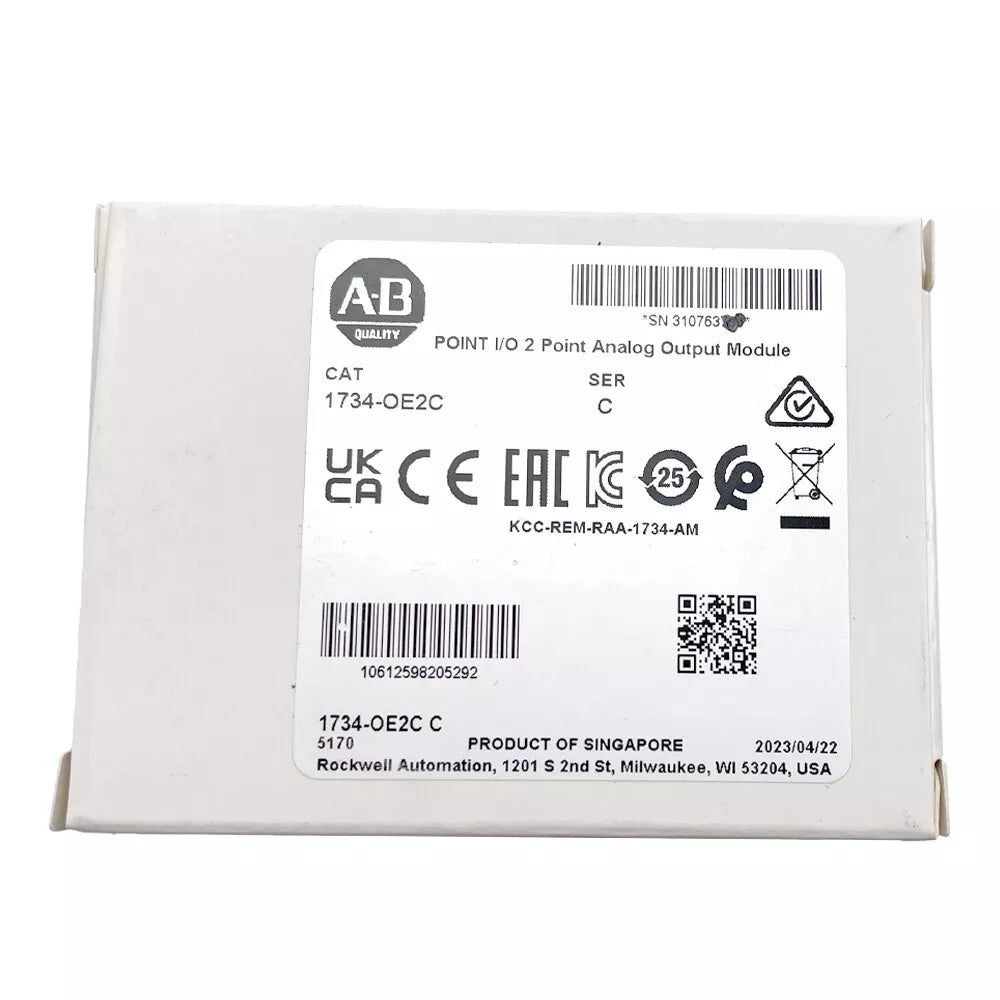

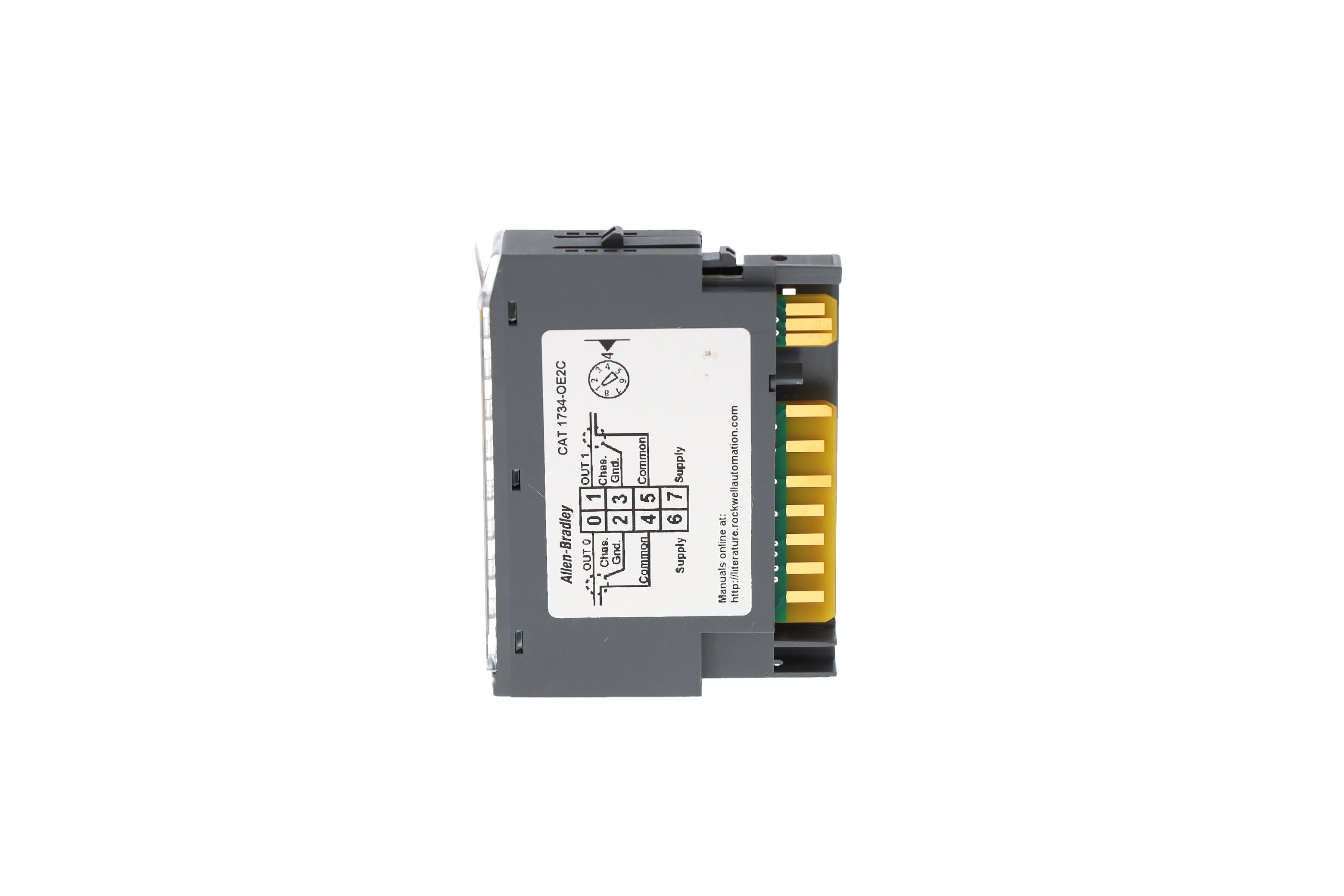

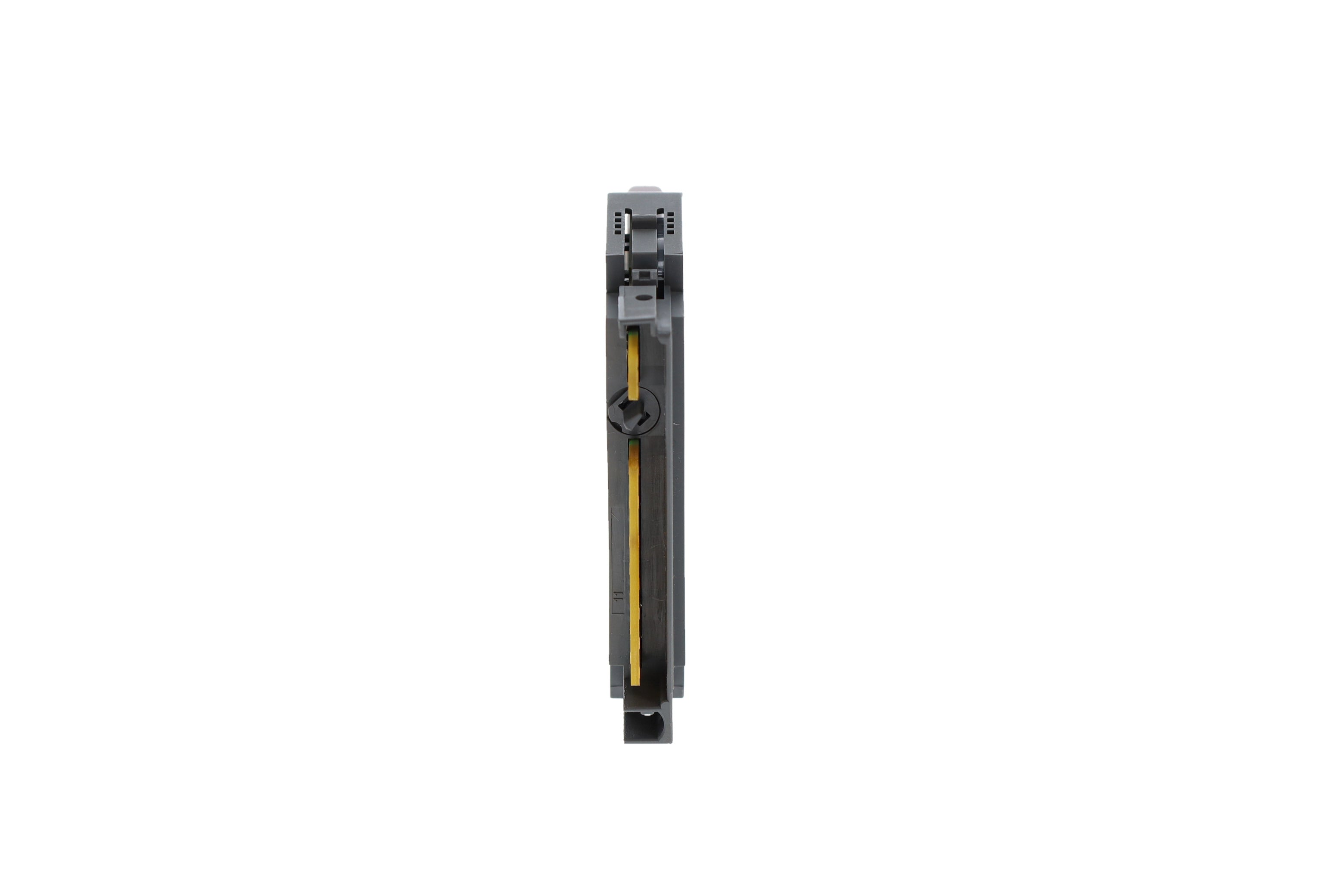

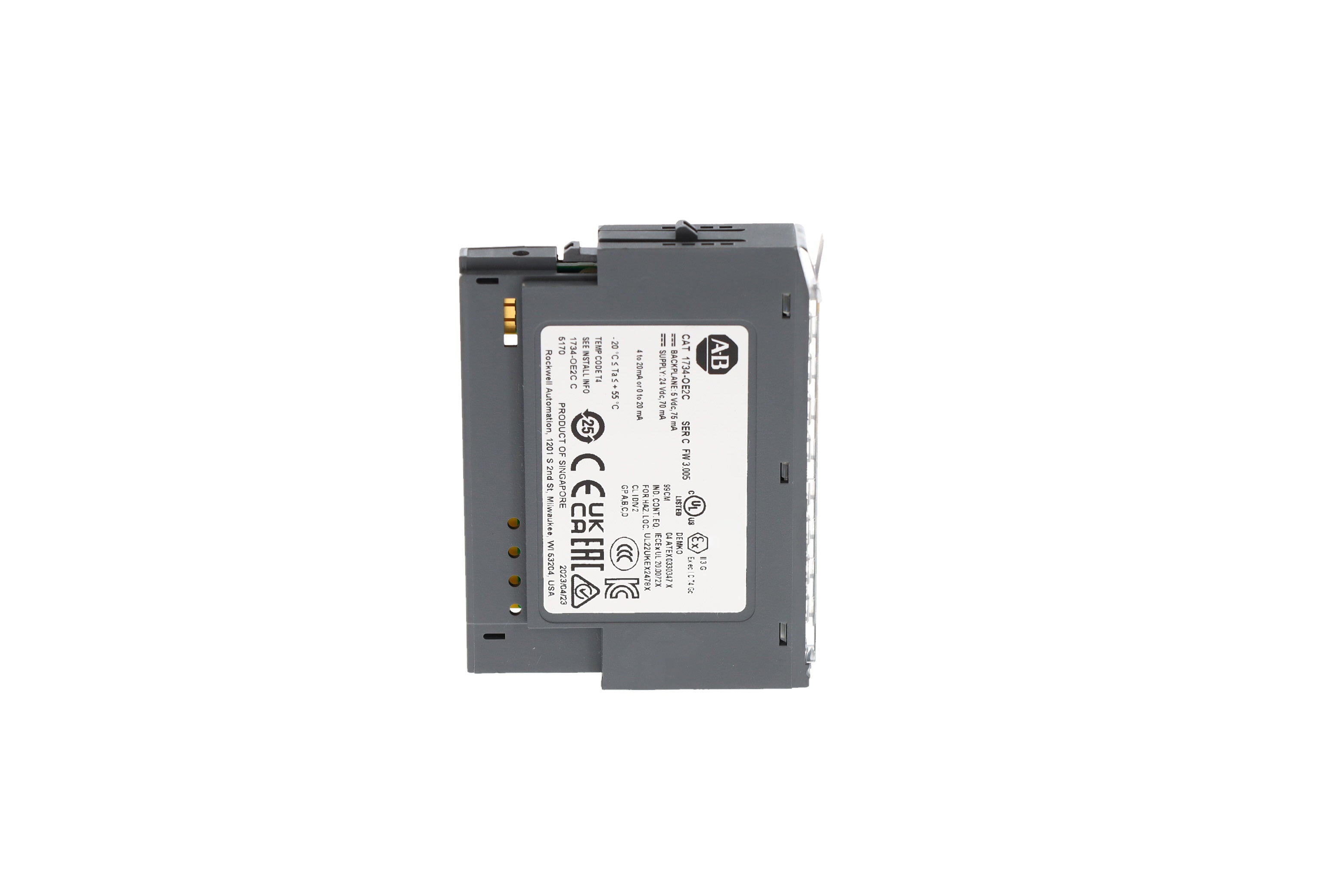

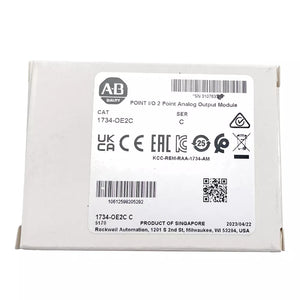

1734-OE2C | Allen-Bradley POINT I/O 24VDC 2-Channel Analog Current Output Module C
- Regular price
- $224.00
- Sale price
- $224.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1734-OE2C
Description
The Allen-Bradley 1734-OE2C is a POINT IO module that features Two (2) single-ended, non-isolated Current output channels. Each channel is configurable for 0-20 mA and 4-20 mA output signals with absolute accuracy of 0.1% Full Scale @ 25 Deg. Celsius. It is compatible with any POINT IO communication adapter for implementing distributed I/O architecture. This module requires 1734-TB, 1734-TBS, 1734-TB3, 17340TB3S wiring base assemblies.
Technical Specifications
| Condition | New / Never Used Surplus |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |

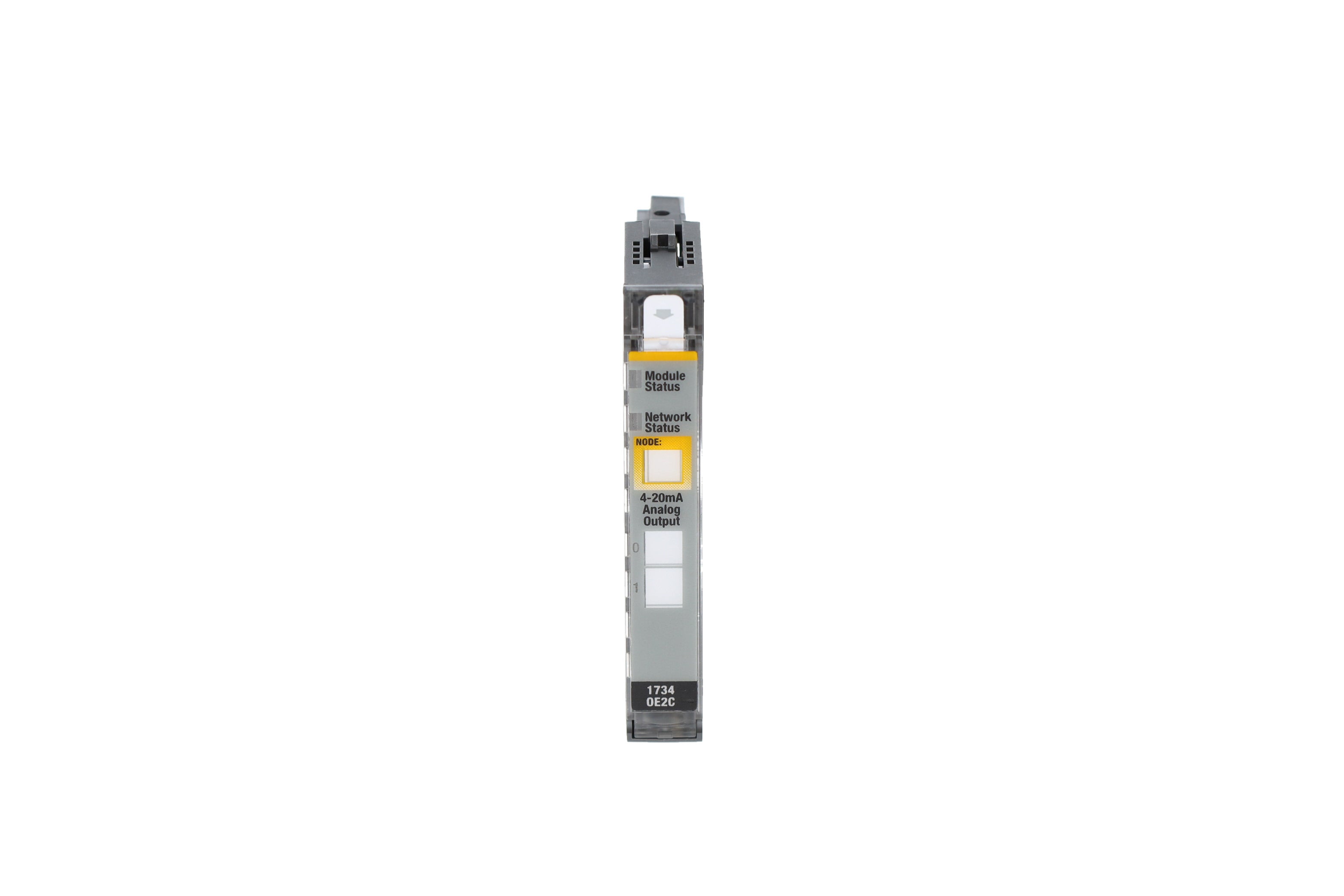

| Status indicators | 1 green/red module status indicator, logic side 1 green/red network status indicator, logic side 2 green/red output status indicators, logic side |
| Module Location | 1734-TB, 1734-TBS, 1734-TB3, 17340TB3S wiring base assembly |
| Keyswitch position | 4.00E+00 |
| Enclosure type rating | None (open-style) |
| Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Current Draw | 75 mA @5V dc |
| Data Format | Signed Integer |
| Converter Type | Digital to analog converter |
| Step Response (63% of FS) | 24 µs |
| Absolute Accuracy | 0.1% Full Scale @ 25 Deg. Celsius |
| Output signal | 0-20 mA; 4-20 mA |
| No. of outputs | Two (2) Single-ended, non-isolated channels |
| Series | POINT I/O |
| Module Type | Analog Output Module |
| Conversion Rate | 16µs |
| Part Number/Catalog No. | 1734-OE2C |
| Resolution | 13 bits - over 0-21mA 2.5µA/cnt (average value - typical range: 2.3...2.7µA/cnt) |
| Outputs | 2 Single-Ended, Non-Isolated |
| Supply Voltage | 24 Volts DC |
| Output Current | 4-20 or 0-20 milliamps |
| Isolation Voltage | 50 Volts Continuous |
| Conversion Type | Digital-Analog |
| POINTBus Current | 75 milliamps (at 5 Volts DC) |
| Enclosure | Open |
| Dimensions | (H x W x L) 2.21 x 0.47 x 2.97 inches |
| Operating Temperature | -20-55 Celsius |
Information About 1734-OE2C
The Allen-Bradley 1734-OE2C has 2 single-ended and non-isolated current outputs. Its module operates in a Unipolar mode, consumes 4 bytes, and produces 2 data bytes. Its 2-channel analog output module converts a digital code into an analog output signal. The module resolution is 13 bits ranging from 0-21 mA.
In setting an individual mode, the 1734-OE2C has 2 modes to choose from 0-20mA and 4-20mA (default). It has a default scaling points of 1638 at 4 mA and 8191 at 20 mA. The model has a general status bit set whenever an open-wire happens. The channel indicator blinks red whenever there is an open wire or a loss of field power. The Allen-Bradley 1734-OE2C has an absolute accuracy of 0.1% full-scale at 25 Deg. Celsius. Its accuracy drift with temperature is 30 ppm/ Deg. Celsius. It has a step response of up to 63% of FS is 24 µs and a current conversion rate of 16 µs. The 1734-OE2C has a resistive load on the voltage output that ranges from 0-750 Ohms. Its point-bus current is 75 mA at 5V DC and its power dissipation is 1.23 Watts. The 1734-OE2C’s thermal dissipation is 4.19 BTU/Hr. and an isolation voltage of 50V continuous tested to withstand 2200V DC for the 60s. It has an external DC supply voltage of 24V DC, nominal and voltage range from 10-28.8V DC. It supplies a current of 70mA at 24V DC which includes outputs at 20mA. The 1734-OE2C comes with a 4 key-switch position and a dimension of 56 x 12 x 75.5 mm. It has a mass of approximately 36g.
The 1734-OE2C is commonly used to actuate modulating Final Control Elements (FCE) such as Control Valves, Variable Frequency Drives (VFD), Dampers, Louvers and other similar devices. It may also be used for re-transmitting analog data for use by data loggers or recorders, panel meters, totalizers, signal converters and isolators.
When installing the 1734-OE2C and the entire POINT I/O system, it is recommended to use a zinc-plated, yellow-chromated steel DIN rail. This type of DIN rail offers higher resistance against corrosion as POINT I/O module grounding are connected via the DIN rail. DIN rails made of non-conductive material and materials greatly affected by corrosion, oxidation may result to intermittent grounding connection.
Additionally, the 1734-OE2C series C module is compatible with DeviceNet and Profibus communication adapters.
