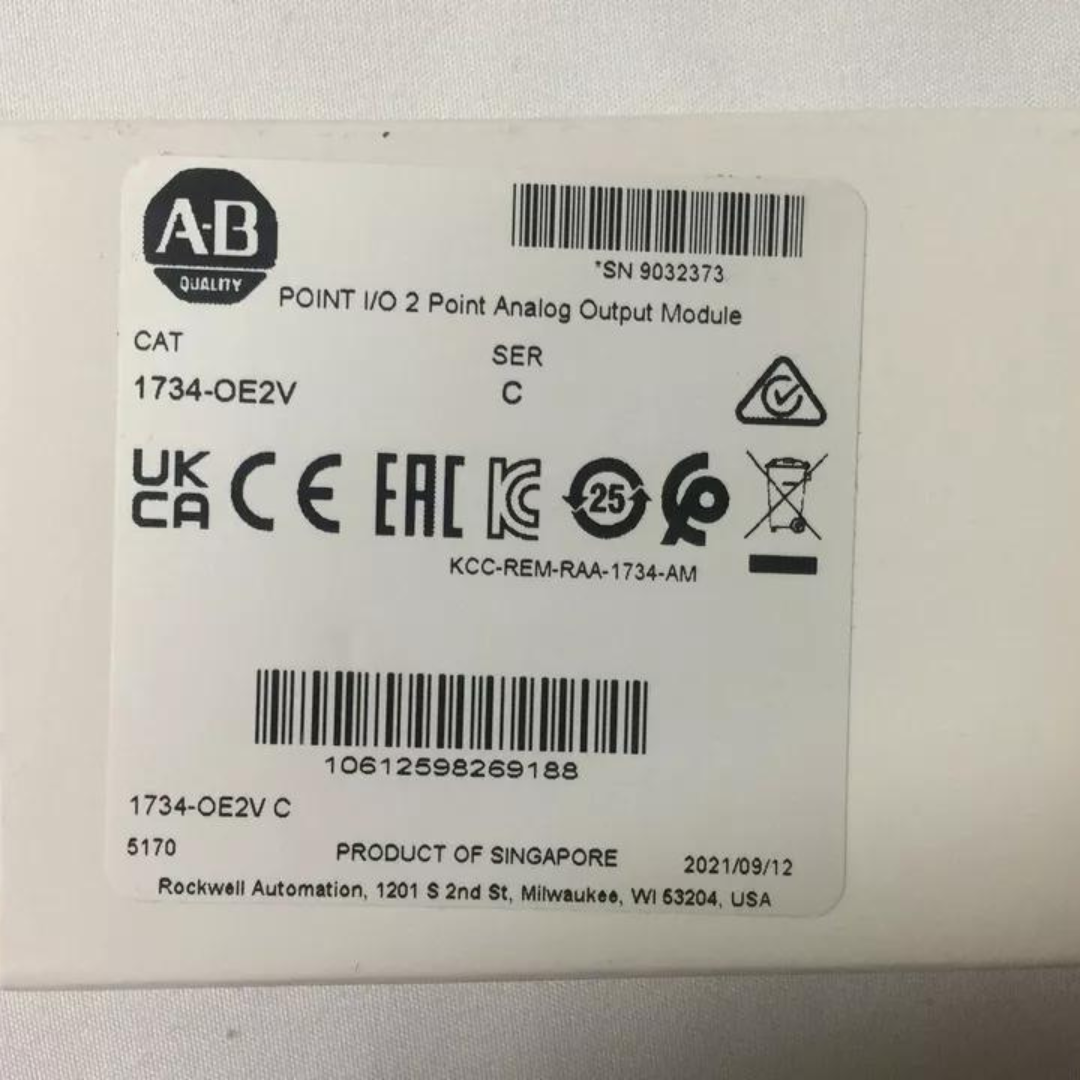

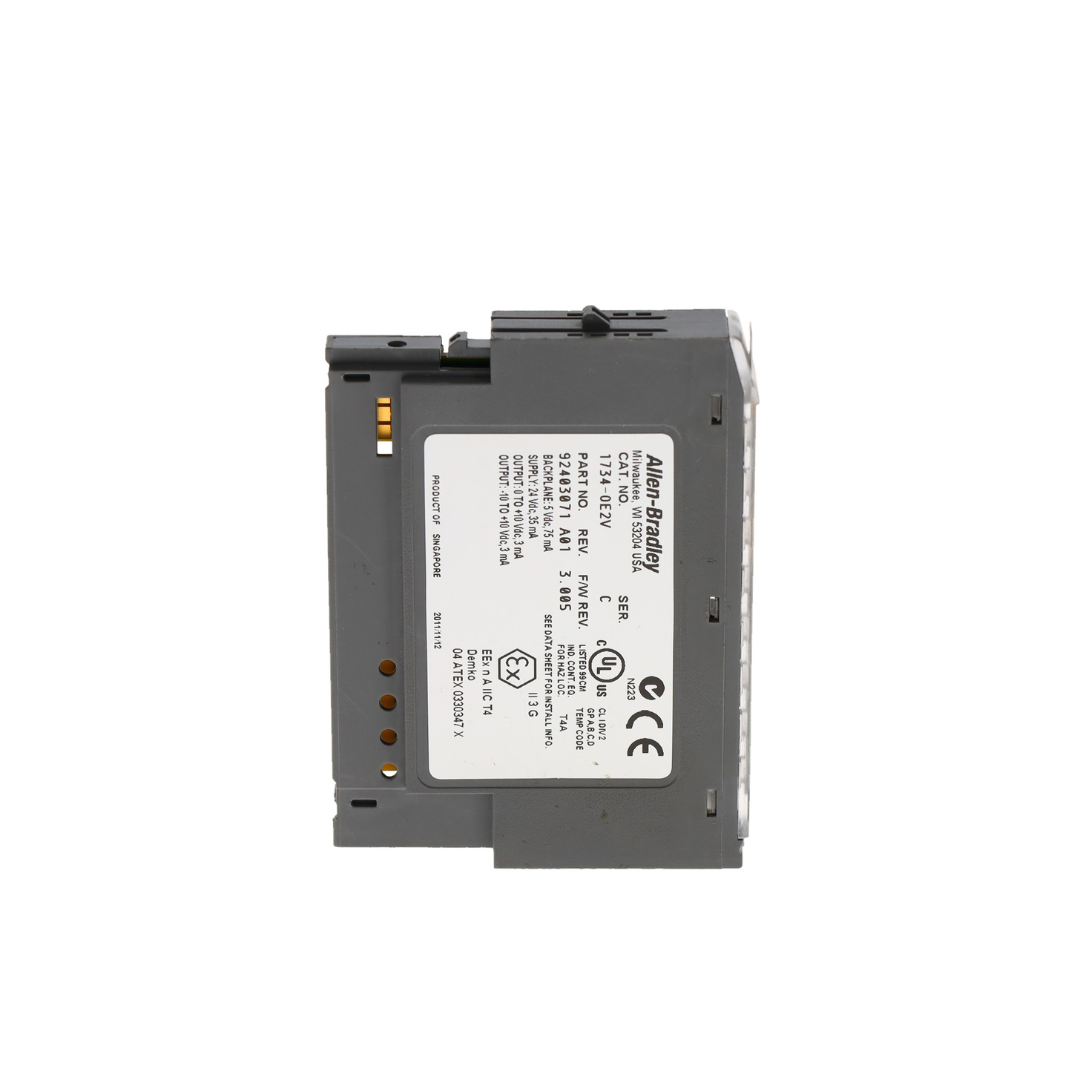

Part #: 1734-OE2V Manufactured by: Allen-Bradley
Regular price
$229.00
Sale price
$229.00
Regular price
13 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1734-OE2V is a POINT I/O Analog Output Module. It has 2 Single-Ended, Non-Isolated Outputs and an Output...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1734-OE2V
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1734-OE2V

Description / Specifications

Description

The Allen-Bradley 1734-OE2V is a POINT I/O Analog Output Module. It has 2 single-ended, non-isolated, voltage output with range of 0-10VDC or +/- 10VDC. It has an integrated analog to Digital converter circuitry with conversion resolution of 14 Bits and absolute accuracy of 0.1% full scale @ 25 °C.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series POINT I/O
Part Number 1734-OE2V
Manufacturer Rockwell Automation
Module Type Analog Output Module
Outputs 2 Single-Ended, Non-Isolated
Output Voltage 0-10 Volts
Current Load 3 milliamps
Conversion Type Digital-Analog
Conversion Rate 20 microseconds
Data Format Signed Integer
Resolution 14 bits
Dimensions (HxWxL) 2.21 x 0.47 x 2.97 inches
Operating Temperature -20-55 Celsius





Information About 1734-OE2V

The 1734-OE2V is an analog output module capable of producing Voltage signal with range of 0-10VDC or +/- 10VDC. This module is manufactured by Allen-Bradley for the POINT IO product family of compact emote IO modules.

Analog output modules are used to control modulating devices such as Control Valves, Variable Frequency Drives (VFD) or Variable Speed Drives (VSD), Dampers, Louvers and other converters and actuators.

The analog output comes from the internal conversion of digital data within the Programmable Logic Controller’s (PLC) register. The digital data is converted with the use of Digital to Analog converter circuit that is integral to the module. The digital data being converted may come direct manipulation of a PLC register, a result of a mathematical operation, pre-defined values or output of a Proportional-Integral-Derivative (PID) controller.

Aside from actuators, analog output signals from this module may also be used to interface with remote indicators, data loggers, recorders or even used as a pass through or signal multiplexer.

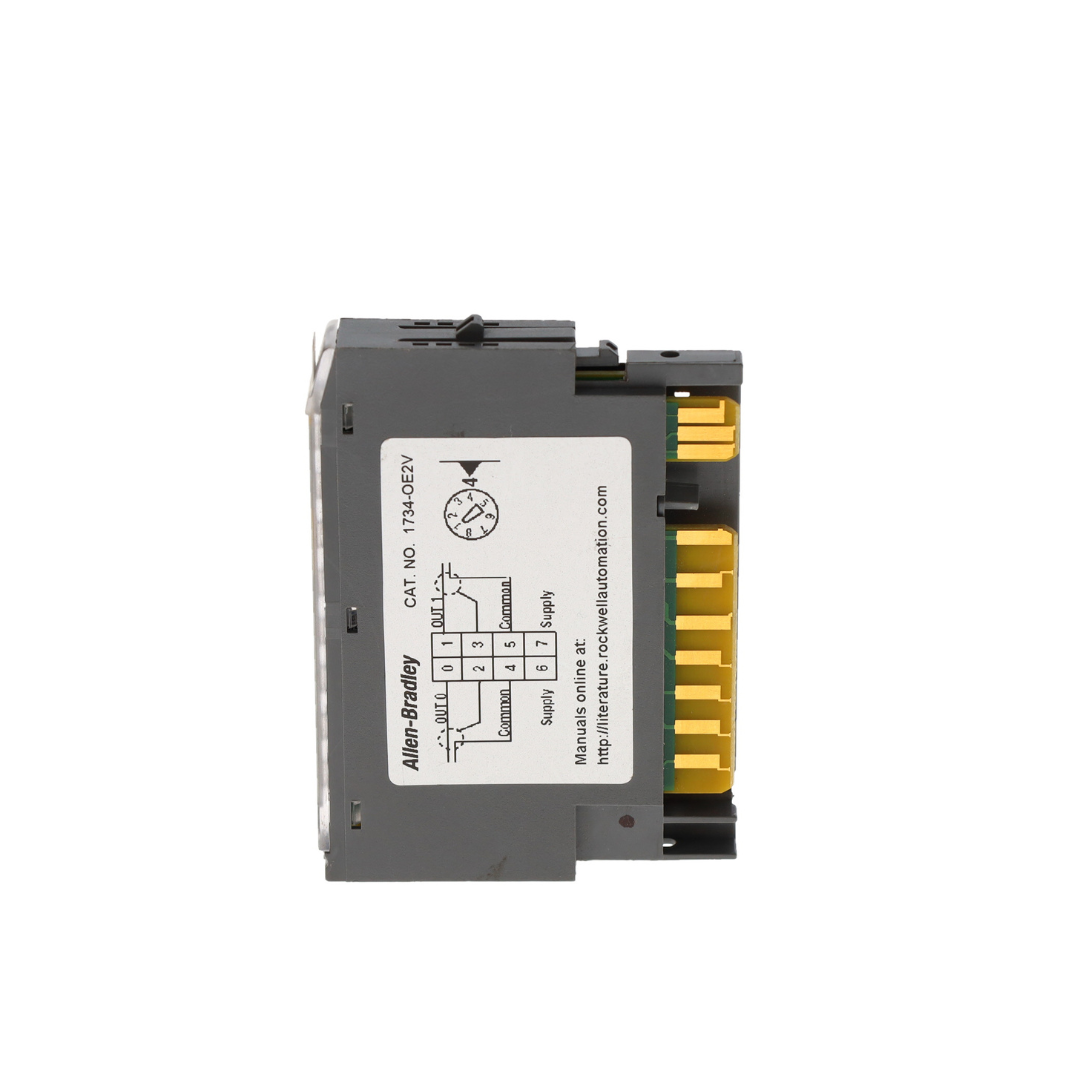

This module requires a wiring base assembly of 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S,1734-TOP, or 1734-TOPS wiring base assembly. It has integrated indicators such as 1 green/red for module status, 1 green/red for network status and 2 green/red for output status. This module keyswitch position is No.4. When wiring signal to this module, the recommended wire size are 0.25 to 2.5 sq. mm. or 22 to 14 AWG solid or stranded copper wire rated at 75 °C or 167 °F or greater and max insulation of 1.2 mm or 3/64 in.

The Allen-Bradley 1734-OE2V POINT I/O Analog Output Module with single-ended, non-isolated 2-channels that converts digitally processed data to analog output voltage. The module has a resolution of 14 bits (13 plus sign) 1.28C/cnt in unipolar or bipolar modules. Until the communication is set, it has a 0V output voltage. Its user-configurable output voltage is 0-10V. (-0.0V under, +0.5V over) +10V user configurable (-0.5V under, +0.5V over). The 1734-OE2V operates Uni-polar or Bipolar modules. Its default module mode is 0-10V DC and it has a typical mode of -10 - +10V DC. It has a default scaling point of 0 - 10000. The 1734-OE2V’s absolute accuracy comes with a 0.1% full scale at 25°C. Its accuracy drift with temperature is 5ppm/deg. C.

The Allen-Bradley 1734-OE2V has a current load on the voltage output of 3 mA with a digital to analog conversion type. Its conversion rate is 20’s, it is factory-calibrated, and it has a format of signed integers. Its max point-bus current is 75 mA at 5V DC and it has a max power dissipation of 1W. Its thermal dissipation is 3.4BTU/hr. The 1734-OE2V has an isolation voltage of 50V continuous and the module has been tested to withstand 2200V DC at 60 s. It has a nominal voltage of 24V DC and a voltage range from 10-28.8V DC. Its current supply is 35 mA at 24V DC including outputs of 3mA.

The 1734-OE2V has several indicators: 1 green/red for the module status, 1 green/red for the network status, and 2 green/red for the output status. Its dimensions are 56 x 12 x 75.5 mm. Its wire category is 1 on the signal ports. The model’s wire size is 0.25-2.5 mm2 solid or stranded copper wire rated at 75 deg. C or greater with 1.2mm insulation max. The 1734-OE2V weighs approximately 36g and its terminal base screw torque’s mass is 0.6 Nm. It has an operating temperature of -20-55 deg. C, a maximum air surrounding temperature of 55 deg. C, and a storage temperature of -40-85 deg. C. The 1734-OE2V has a relative humidity of 5-95% non-condensing and a vibration of 5g at 10-500 Hz. Its operational shock is 30g and its non-operational shock is 50g. The 1734-OE2V module produces 0 Volts output before communication is established. Once communication is established, the output voltage is user-configurable anywhere from 0-10 Volts. Additionally, the 1734-OE2V module’s current load on voltage output is 3 mA.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 1734-OE2V
Question: What is the 1734-OE2V module and what are its key features?
Date Update:04/06/2025
Answer:

The Allen-Bradley 1734-OE2V is a compact analog output module designed for the POINT I/O™ system. Key features include:

  • Output Channels: 2 single-ended, non-isolated channels.
  • Output Voltage Range: 0 to 10 V DC or ±10 V DC, user-configurable.
  • Output Current Load: 3 mA per channel.
  • Conversion Type: Digital-to-Analog.
  • Conversion Rate: 20 microseconds.
  • Data Format: Signed Integer.
  • Resolution: 14 bits.
  • Indicators: Module status, network status, and output status LEDs.
  • Dimensions: 56 x 12 x 75.5 mm.
  • Weight: Approximately 36 grams.
  • Operating Temperature: -20 to 55°C.
  • Storage Temperature: -40 to 85°C.
  • Relative Humidity: 5% to 95% (non-condensing).
  • Shock Rating: 30 g operational, 50 g non-operational.
  • Vibration Rating: 5 g at 10–500 Hz.

This module is ideal for applications requiring precise voltage output control, such as driving actuators, valves, or other analog devices.

Question: What terminal bases are compatible with the 1734-OE2V module?
Date Update:04/06/2025
Answer:

The 1734-OE2V module is compatible with the following terminal bases:

  • 1734-TB: Standard terminal base.
  • 1734-TBS: Spring-clamp terminal base.
  • 1734-TB3S: Spring-clamp terminal base with 3 positions.
  • 1734-TOP: One-piece terminal base.
  • 1734-TOPS: One-piece terminal base with spring clamps.

These bases provide the necessary connections for the module to interface with the backplane and field devices.

Question: How is the 1734-OE2V module configured and calibrated?
Date Update:04/06/2025
Answer:

The 1734-OE2V module is configured and calibrated using the following steps:

  1. Configuration: Use Studio 5000 Logix Designer or RSLogix 5000 software to configure the module's parameters, such as output range, fault modes, and alarm settings.
  2. Calibration: Calibrate the module using the software tools to ensure accurate output voltage levels.
  3. Scaling: Apply appropriate scaling to match the module's output to the desired engineering units.

Detailed instructions for configuration and calibration are provided in the module's user manual.

Question: What are the wiring requirements for the 1734-OE2V module?
Date Update:04/06/2025
Answer:

Wiring the 1734-OE2V module requires the following considerations:

  • Wire Category: Category 1 for signal ports.
  • Wire Size: 0.25 to 2.5 mm² (24 to 12 AWG) solid or stranded copper wire.
  • Insulation: Wire insulation rated for 75°C or greater, with a maximum insulation thickness of 1.2 mm.
  • Termination Torque: Screw terminals should be tightened to a torque of 0.6 Nm.

Proper wiring ensures reliable operation and compliance with safety standards.

Question: What certifications does the 1734-OE2V module have?
Date Update:04/06/2025
Answer:

The 1734-OE2V module complies with the following certifications:

  • CE: Conforms to European Union directives.
  • UL: Listed under UL 508 for industrial control equipment.
  • CSA: Certified by the Canadian Standards Association.
  • C-Tick: Meets Australian EMC requirements.
  • KC: Certified for use in South Korea.

These certifications ensure the module meets international safety and electromagnetic compatibility standards.
