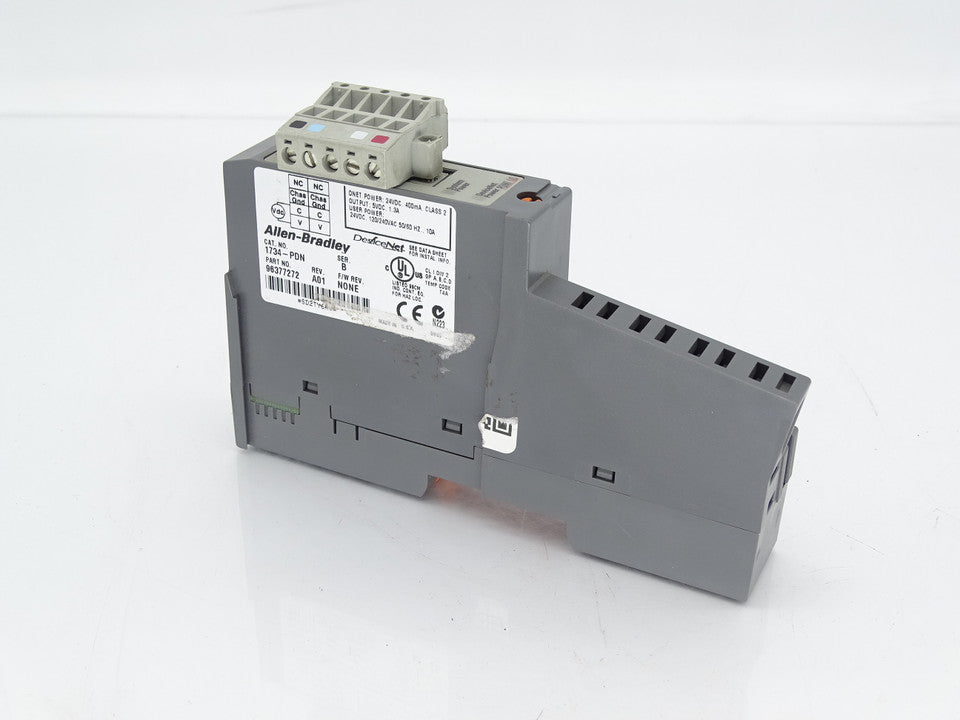

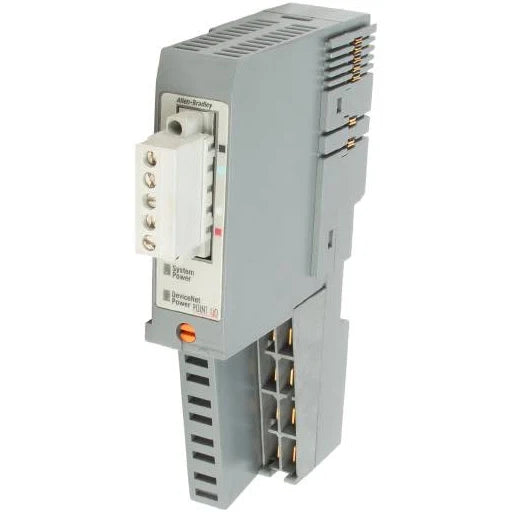

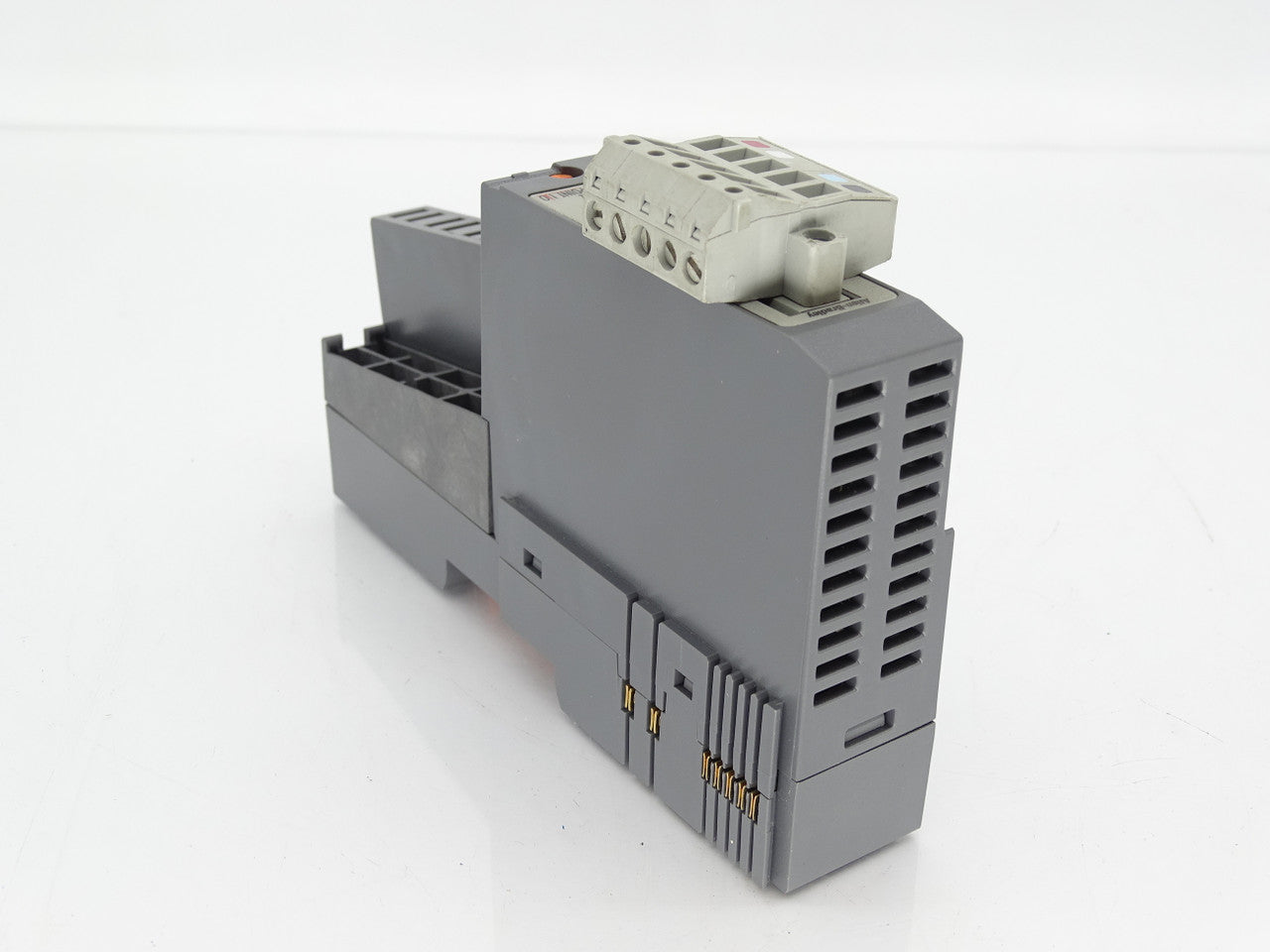

1734-PDN | Allen-Bradley POINT I/O DeviceNet Adapter, 24V DC, 1.3 A POINTBus
- Regular price
- $99.00
- Sale price
- $99.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1734-PDN
Description
The Allen-Bradley 1734-PDN is a DeviceNet communication adapter for the POINT I/O platform, enabling distributed I/O integration over DeviceNet networks. Operating on 24V DC, it supplies up to 1.3 A POINTBus current and supports as many as 17 POINT I/O modules for compact, modular automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation |
| Part Number | 1734-PDN |
| Subcategory | Network Interface Modules |
| Series | POINT I/O |
| Module Type | DeviceNet Adapter |
| Input Voltage | 24 VDC |
| Field Side Power | 400 mA |
| POINTBus Current | 1.3 A max |
| Inrush Current | 6 A |
| Power Consumption | 8 W |
| Power Dissipation | 1.2 W at 25 V |
| Max Modules Supported | 17 POINT I/O modules |
| Max I/O Capacity | 136 points |
| Baud Rates Supported | 125, 250, 500 kbps |
| Communication Type | DeviceNet |
| Connector Type | Screw terminal |
| Voltage Rating | 25 V (DeviceNet supply handling) |
| Mounting Type | 15 mm DIN rail |
| Enclosure | Open-style |
| Environmental Rating | -20 to 55 °C; 5 g vibration; 30 g shock |
| Standards | C-TICK, CE, cUL, GOST, KC, Marine, UL |
| Applications | In-cabinet distributed I/O networks |
| Dimensions | Approx. 3 × 1 × 5.25 in |
| Weight | 0.5 lb |
Information About 1734-PDN
The 1734-PDN belongs to Rockwell Automation’s POINT I/O system, enabling flexible and compact distributed control over DeviceNet networks. It serves as the communication backbone for up to 17 POINT I/O modules, distributing both data and backplane power through its 1.3 A POINTBus output. Installation is streamlined through DIN rail mounting and the system’s interlocking mechanical design, which simplifies assembly and module expansion. The adapter supports standard DeviceNet communication rates—125, 250, and 500 kbps—allowing integration into a wide range of network architectures. Built-in status LEDs provide immediate diagnostics for both network activity and power conditions, ensuring quick troubleshooting. With rugged environmental tolerance and reverse polarity protection, the 1734-PDN is well suited for harsh industrial automation environments.
Key Features:
- DeviceNet Network Adapter: Provides DeviceNet communication for POINT I/O modules within distributed control systems.
- High Module Capacity: Supports up to 17 POINT I/O modules and 136 I/O points depending on backplane power usage.
- Reliable Power Distribution: Delivers 1.3 A POINTBus current and handles 6 A inrush for stable module operation.
- Flexible Communication Speeds: Operates at 125, 250, or 500 kbps, supporting both standard and high-speed DeviceNet applications.
- Integrated Diagnostics: Features LED indicators for DeviceNet status and system power, simplifying maintenance.
- Rugged Environmental Performance: Rated for -20 to 55 °C operation with strong vibration and shock resistance.
- Simple Installation: DIN rail mountable with removable screw-terminal connectors for fast wiring.
- Compact Open-Style Design: Reduces panel space requirements and wiring complexity in distributed I/O setups.
The 1734-PDN delivers the reliability and precision required for DeviceNet-based distributed control and modular POINT I/O architectures.
