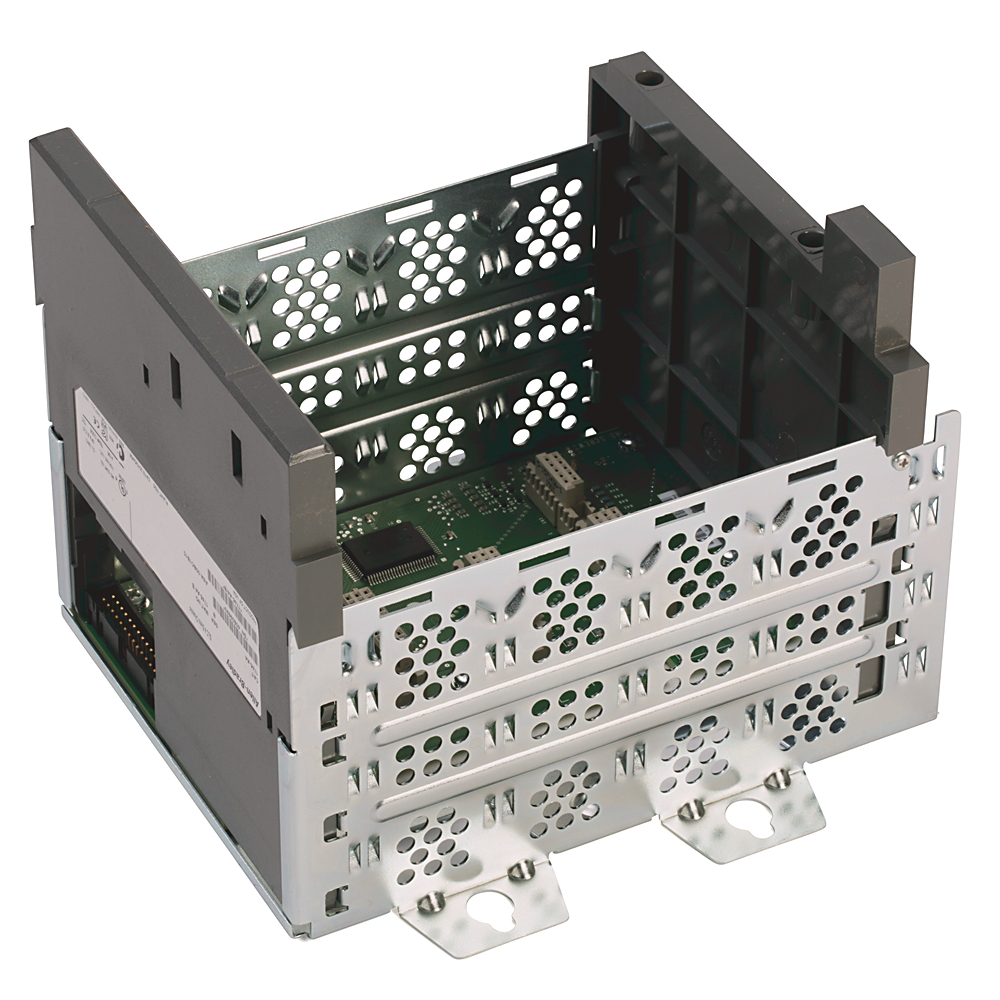

1746-A4 | Allen-Bradley SLC 500 4 Slot Modular I/O Chassis for 1746 I/O Modules
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1746-A4
Description
The Allen-Bradley 1746-A4 is a 4-slot I/O chassis designed for the SLC 500 platform, providing a compact housing and backplane connection for modular control systems. It supports installation of up to four I/O or specialty modules, offering a reliable structure for small to medium automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation |
| Part Number | 1746-A4 |
| Subcategory | I/O Chassis |
| Series | SLC 500 |
| Hardware Type | 4-Slot Chassis |
| Slots | 4 |
| Backplane Current (5.1 VDC) | 10 A |
| Backplane Current (24 VDC) | 2.88 A |
| Mounting Type | Panel Mount (Back-Panel) |
| Standards | GOST, KC, Marine |
| Operating Temperature | 0–60 °C (32–140 °F) |
| Humidity Rating | 5–95% non-condensing |
| Expansion Support | Up to 3 interconnected chassis (30 slots total) |
| Compatible Modules | SLC 500 processors, I/O, and specialty modules |
| Dimensions | 6.73 × 6.97 × 5.71 in |
| Type | Manual (chassis assembly) |
| Weight | 2.5 lb |
Information About 1746-A4

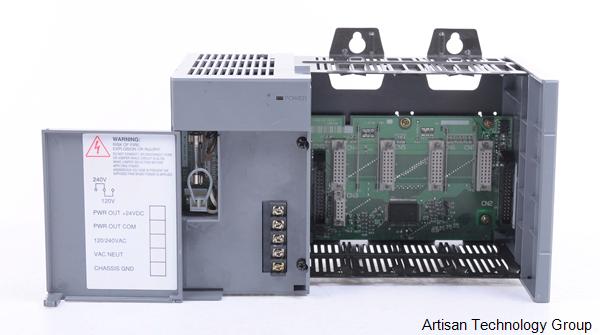

The 1746-A4 is part of Rockwell Automation’s SLC 500 family and serves as a modular chassis for small and mid-range control systems. It includes four slots for I/O modules and mounts securely onto a back panel using integrated panel-mount tabs. To supply power to the modules, the chassis requires a compatible SLC 500 power supply installed on the left end of the assembly. For expanded applications, up to three chassis—including the 1746-A4—can be interconnected using 1746-C7, 1746-C9, or 1746-C16 cables, allowing a total of 30 slots across multiple racks. With robust backplane current ratings and environmental durability, this chassis supports dependable operation in a wide range of industrial automation environments.
Key Features:
- Compact 4-Slot Design: Provides four module positions for processors, I/O, or specialty modules within small to medium SLC 500 systems.
- Integrated Backplane: Delivers up to 10 A at 5.1 VDC and 2.88 A at 24 VDC to support reliable module power distribution.
- Panel-Mount Construction: Includes mounting tabs for secure back-panel installation in industrial control enclosures.
- Expansion Capability: Supports interconnection of up to three SLC chassis for a combined total of 30 I/O slots.
- Broad Compatibility: Works with all SLC 500 controllers, discrete/analog modules, and specialty communication modules.
- Industrial Durability: Rated for operation from 0–60 °C with up to 95% non-condensing humidity, ensuring reliable performance.
- Standards Compliance: Meets GOST, KC, and Marine classifications for global industrial use.
- Reliable Mechanical Build: Provides a sturdy enclosure for protecting modules and maintaining stable system operation.
The 1746-A4 delivers the reliability and precision required for industrial control systems using the Allen-Bradley SLC 500 platform.
