1746-C7 | Allen-Bradley SLC-500 6-Inch Rack Interconnect Cable
- Regular price
- $266.05
- Sale price
- $266.05
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1746-C7
Description

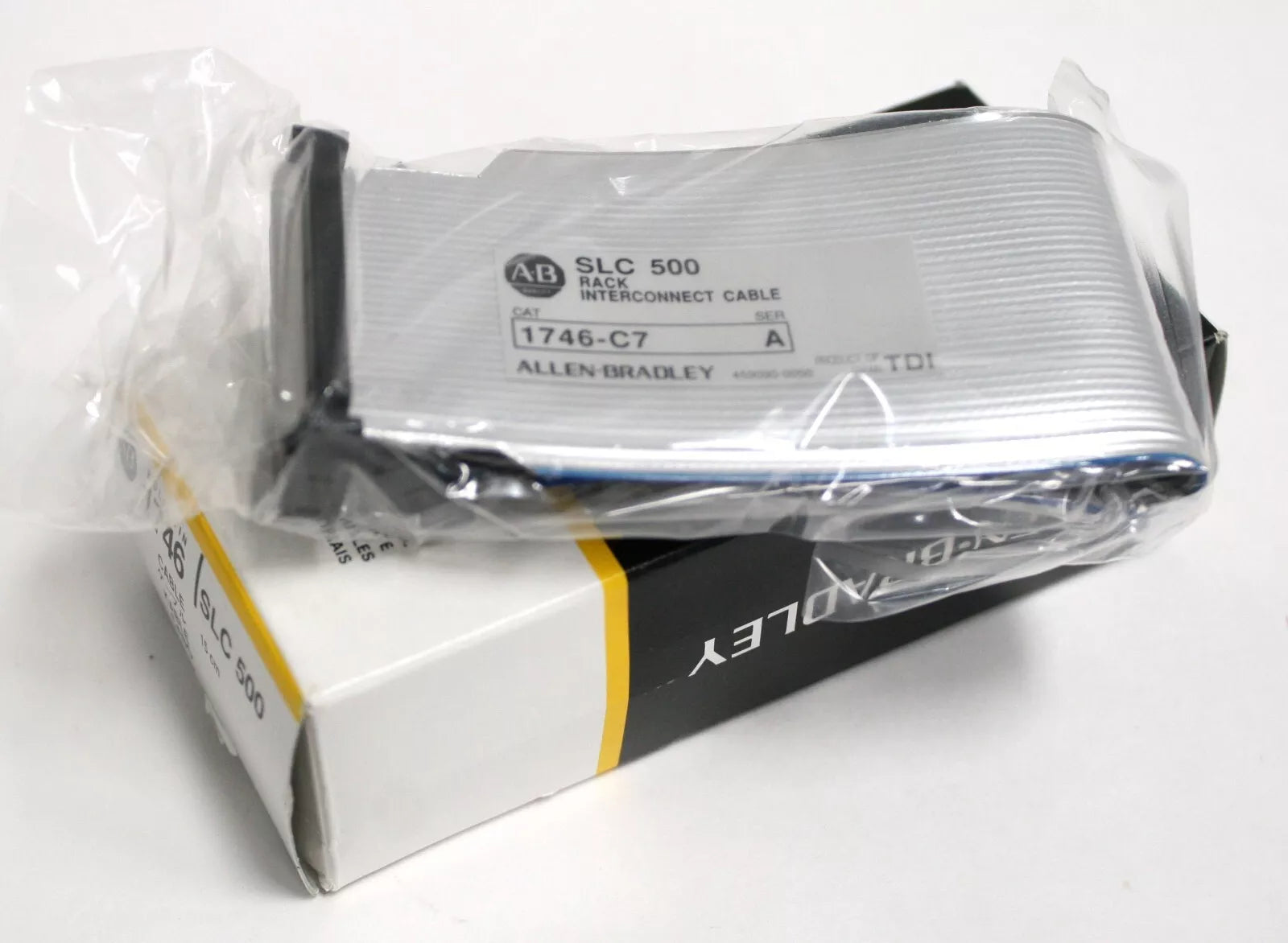

The Allen-Bradley 1746-C7 is a chassis interconnect cable from the SLC 500 series. It is a 0.5-foot (0.15 m) ribbon cable designed to connect controllers and chassis side by side in industrial control systems.
Technical Specifications
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1746-C7 |
| Series | SLC 500 |
| Hardware Type | Chassis Interconnect Cable |
| Length | 0.5 feet (0.15 meters) |
| Analog Inputs | Thermocouple |
| Backplane Current (5 Volts) | 110 milliamps |
| Backplane Current (24 Volts) | 85 milliamps |
| Slots | 1 |
| Connection Hardware | 1746-RT32 |
Information About 1746-C7
The 1746-C7 is part of the Allen-Bradley SLC 500 family and serves as a dedicated interconnect cable for linking controllers and chassis. Measuring 6 inches in length, it is designed to maintain correct spacing between connected units, requiring 2.5–4 inches between controllers and chassis, and a maximum of 2.5 inches between 1746-P4 power supplies. It carries backplane currents of 110 mA at 5V and 85 mA at 24V, ensuring stable power delivery. This cable must only be used for side-by-side connections, as stacked installations are not supported. Its compact size, secure ribbon-style construction, and reliable performance make it a practical accessory for maintaining proper system configuration in SLC 500 installations.
Key Features:
- Design: Ribbon-style chassis interconnect cable built for compact industrial installations.
- Length: Measures 0.5 feet (0.15 m) or approximately 6 inches, optimized for short interconnections.
- Compatibility: Works with SLC 500 controllers, chassis, and Allen-Bradley 1746-P4 power supplies.
- Backplane support: Handles 110 mA at 5V DC and 85 mA at 24V DC for proper system power distribution.
- Spacing requirements: Maintains 2.5–4 inch spacing for controllers-to-chassis connections and 2.5 inches max for power supplies.
- Installation: Side-by-side mounting only, preventing misalignment or unsupported stacked configurations.
- Durability: Constructed for industrial reliability, ensuring stable signal and power transfer between connected units.
- Application: Provides a secure link for SLC 500 system expansion and controller integration.
The 1746-C7 delivers the reliability and precision required for safe and efficient interconnection of SLC 500 controllers and chassis.
