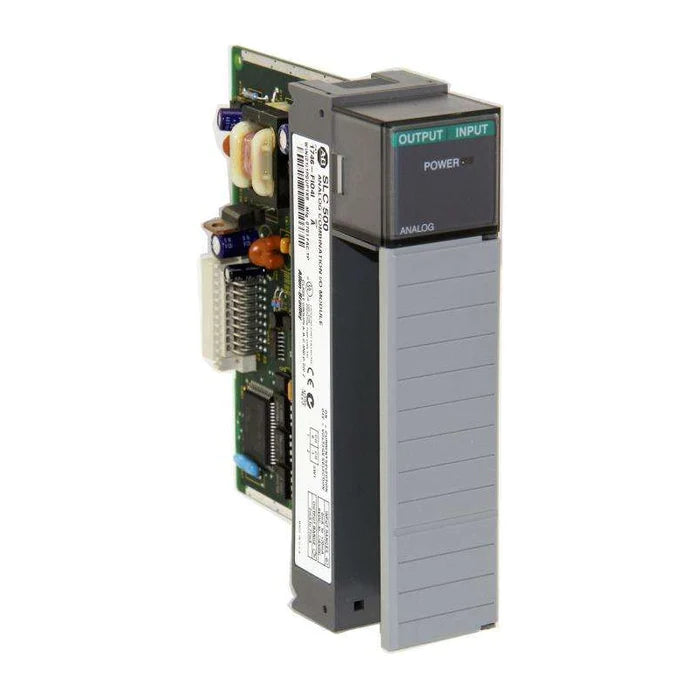

Part #: 1746-FIO4I Manufactured by: Allen-Bradley
Regular price
$2,354.00
Sale price
$2,354.00
Regular price
7 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1746-FIO4I combines high-speed analog input and output channels into a single slot for SLC 500 controlle...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1746-FIO4I
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1746-FIO4I

Description / Specifications

Description

The Allen-Bradley 1746-FIO4I is a fast analog I/O module from the SLC 500 series. It provides two configurable analog inputs (0–10V DC or 0–20 mA) and two analog current outputs (0–20 mA) for precise process control.





Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1746-FIO4I
Series SLC 500
Module Type Analog Combination Module
Inputs 2
Outputs 2
Backplane Current (5 Volts) 55 milliamps
Input signals 0-10 VDC; 0-20 mA
Backplane Current (24 Volts) 150 milliamps
Track and Hold Time before conversion 1.5 µs
Conversion method Successive approximation
Bandwidth 7 kilohertz
Update Time 512 microseconds
Conversion time 7.5 µs every 512 µs
Resolution 12 bits in, 14 bits out
Input resolution 12 bit
Step Response 100 milliseconds in, 2.5 milliseconds out
Output resolution 14-bit
Conversion method R-2R Ladder
Module width Single slot
Compatible Hardware SLC 500 Fixed and Modular style





Information About 1746-FIO4I

The 1746-FIO4I is part of the Allen-Bradley SLC 500 product family, combining analog input and output functionality in a single module for efficient use of limited chassis slots. It features two differential analog inputs with 12-bit resolution and two analog outputs with 14-bit resolution, using successive approximation conversion for inputs and an R–2R ladder for outputs. With fast input response (7.5 µs conversion time every 512 µs) and a 100 µs step response, it is well-suited for capturing rapidly changing signals. This module consumes 55 mA from the 5V backplane and 150 mA from the 24V backplane, and is compatible with both fixed and modular SLC 500 systems. The 1746-FIO4I offers input accuracy of ±0.440% at 25 °C and ±0.750% at 60 °C, while its outputs achieve ±0.298% accuracy at 25 °C and ±0.541% across the full operating range. Designed with shielded cabling recommendations (Belden #8761), it ensures reliable performance in industrial automation.

Key Features:

  • Module type: Fast analog combination module providing both input and output functions in one slot.
  • Inputs: Two differential channels configurable for 0–10V DC or 0–20 mA current, with 12-bit resolution.
  • Outputs: Two analog channels rated for 0–20 mA, using 14-bit R–2R ladder conversion for precise output control.
  • Conversion speed: Input conversion time of 7.5 µs every 512 µs with track-and-hold time of 1.5 µs, enabling fast response to signal changes.
  • Accuracy: Input accuracy ±0.440% of full scale at 25 °C and ±0.750% at 60 °C; output accuracy ±0.298% at 25 °C and ±0.541% across 0–60 °C.
  • Bandwidth: 7 kHz input bandwidth supports high-speed data acquisition.
  • Backplane current: Draws 55 mA at 5V DC and 150 mA at 24V DC from the chassis.
  • Expansion compatibility: Works with both fixed (1747-L20, L30, L40) and modular style SLC 500 controllers, alongside multiple I/O modules.
  • Step response: Achieves 100 µs response for fast analog output changes.
  • Wiring: Supports shielded Belden #8761 cable with up to 2.5 mm² (14 AWG) wire size for noise-resistant signal transmission.

The 1746-FIO4I delivers the reliability and precision required for high-speed analog input/output processing in Allen-Bradley SLC 500 automation systems.





Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 1746-FIO4I
Question: What is the main function of the 1746-FIO4I module?
Date Update:23/05/2025
Answer:

The 1746-FIO4I is a fast analog I/O module designed for the SLC 500 system. It combines two differential analog input channels and two current output channels in a single module. This integration allows for compact installation while supporting both monitoring and control tasks. It is ideal for applications that require real-time analog signal processing.

Question: Is the module compatible with all SLC 500 systems?
Date Update:23/05/2025
Answer:

Yes, the 1746-FIO4I is compatible with both fixed and modular SLC 500 hardware. It can be used alongside various I/O modules like 1746-IA8, -IB16, -OB8, -NO4I, and others. This compatibility makes it suitable for system expansions or upgrades. It occupies a single slot in the chassis, saving space.

Question: Does the 1746-FIO4I have electrical isolation?
Date Update:23/05/2025
Answer:

Yes, it provides 500V DC isolation between the backplane and the I/O channels. This helps protect the system from electrical interference or voltage spikes. Isolation improves the overall reliability and safety of the control system. It’s a key feature for analog modules working in noisy environments.

Question: What types of signals does the 1746-FIO4I accept and produce?
Date Update:23/05/2025
Answer:

The analog inputs can handle either 0–10 VDC voltage or 0–20 mA current signals. The outputs are 0–20 mA current signals with a full-scale output of 21 mA and up to 5% overrange. This versatility allows the module to interface with a wide range of analog sensors and actuators. The signal types can be selected per channel, offering configuration flexibility.

Question: Is the 1746-FIO4I still manufactured by Rockwell Automation?
Date Update:23/05/2025
Answer:

As of the latest product lifecycle information, the 1746-FIO4I is listed as a legacy product and may be discontinued. However, it is still available through surplus suppliers and refurbishers. Users planning new projects are encouraged to explore CompactLogix or ControlLogix systems. Check the official Rockwell Automation website for the most up-to-date lifecycle status.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1746-FIO4I is a fast analog I/O module from the SLC 500 series. It provides two configurable analog inputs (0–10V DC or 0–20 mA) and two analog current outputs (0–20 mA) for precise process control.





Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1746-FIO4I
Series SLC 500
Module Type Analog Combination Module
Inputs 2
Outputs 2
Backplane Current (5 Volts) 55 milliamps
Input signals 0-10 VDC; 0-20 mA
Backplane Current (24 Volts) 150 milliamps
Track and Hold Time before conversion 1.5 µs
Conversion method Successive approximation
Bandwidth 7 kilohertz
Update Time 512 microseconds
Conversion time 7.5 µs every 512 µs
Resolution 12 bits in, 14 bits out
Input resolution 12 bit
Step Response 100 milliseconds in, 2.5 milliseconds out
Output resolution 14-bit
Conversion method R-2R Ladder
Module width Single slot
Compatible Hardware SLC 500 Fixed and Modular style





Information About 1746-FIO4I

The 1746-FIO4I is part of the Allen-Bradley SLC 500 product family, combining analog input and output functionality in a single module for efficient use of limited chassis slots. It features two differential analog inputs with 12-bit resolution and two analog outputs with 14-bit resolution, using successive approximation conversion for inputs and an R–2R ladder for outputs. With fast input response (7.5 µs conversion time every 512 µs) and a 100 µs step response, it is well-suited for capturing rapidly changing signals. This module consumes 55 mA from the 5V backplane and 150 mA from the 24V backplane, and is compatible with both fixed and modular SLC 500 systems. The 1746-FIO4I offers input accuracy of ±0.440% at 25 °C and ±0.750% at 60 °C, while its outputs achieve ±0.298% accuracy at 25 °C and ±0.541% across the full operating range. Designed with shielded cabling recommendations (Belden #8761), it ensures reliable performance in industrial automation.

Key Features:

  • Module type: Fast analog combination module providing both input and output functions in one slot.
  • Inputs: Two differential channels configurable for 0–10V DC or 0–20 mA current, with 12-bit resolution.
  • Outputs: Two analog channels rated for 0–20 mA, using 14-bit R–2R ladder conversion for precise output control.
  • Conversion speed: Input conversion time of 7.5 µs every 512 µs with track-and-hold time of 1.5 µs, enabling fast response to signal changes.
  • Accuracy: Input accuracy ±0.440% of full scale at 25 °C and ±0.750% at 60 °C; output accuracy ±0.298% at 25 °C and ±0.541% across 0–60 °C.
  • Bandwidth: 7 kHz input bandwidth supports high-speed data acquisition.
  • Backplane current: Draws 55 mA at 5V DC and 150 mA at 24V DC from the chassis.
  • Expansion compatibility: Works with both fixed (1747-L20, L30, L40) and modular style SLC 500 controllers, alongside multiple I/O modules.
  • Step response: Achieves 100 µs response for fast analog output changes.
  • Wiring: Supports shielded Belden #8761 cable with up to 2.5 mm² (14 AWG) wire size for noise-resistant signal transmission.

The 1746-FIO4I delivers the reliability and precision required for high-speed analog input/output processing in Allen-Bradley SLC 500 automation systems.





Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
