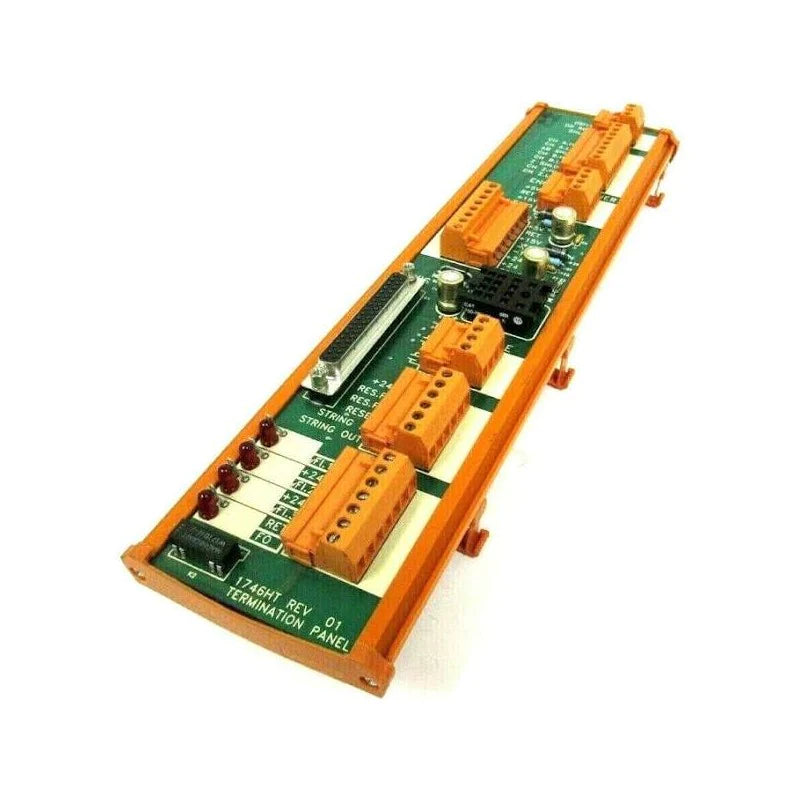

1746-HT | Allen-Bradley SLC 500 HSRV/IMC 110 Termination Panel, DINRail mount
- Regular price
- $715.00
- Sale price
- $715.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1746-HT
Description
The Allen-Bradley 1746-HT is a thermocouple and millivolt input module designed for precise temperature measurement within SLC 500 control systems. It supports multiple thermocouple types and low-level mV inputs, providing accurate, high-resolution monitoring for industrial process applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | I/O Modules |
| Part Number | 1746-HT |
| Subcategory | Temperature Input Modules |
| Series | SLC 500 |
| Hardware Type | Termination Panel / Input Module |
| Supported Inputs | Thermocouples (J, K, T, E, N, R, S), mV signals |
| Mounting | Rack-mounted (SLC chassis) |
| Input Frequency | 250 kHz |
| Output Type | Digital (to SLC processor) |
| Backplane Current (5V) | 200 mA |
| Backplane Current (24V) | 90 mA |
| Slot Requirement | 1 |
| I/O Connections | 1746-HT and 1746-HCA |
| Step Response | 100 ms input, 2.5 ms output |
| Resolution | 16-bit |
| Temperature Compensation | Cold-junction compensation |
Information About 1746-HT
The 1746-HT is part of the Allen-Bradley SLC 500 I/O family, developed to support precision analog measurement in distributed control systems. This module accepts inputs from a wide range of thermocouple types (J, K, T, E, N, R, and S) as well as low-level millivolt signals. It offers multiple input channels with high accuracy and cold-junction compensation, ensuring reliable temperature measurement in industrial environments. Data is digitized with 16-bit resolution for precise control and monitoring. The 1746-HT communicates with the SLC processor through the backplane, providing seamless integration with the system. Designed for panel-mounted SLC racks, this module delivers dependable performance in temperature-critical applications.
Key Features:
- Design: Thermocouple/mV input module for SLC 500 systems.
- Inputs: Supports multiple thermocouple types (J, K, T, E, N, R, S) and millivolt inputs.
- Resolution: 16-bit conversion for accurate signal measurement.
- Compensation: Cold-junction compensation ensures precise temperature readings.
- Compatibility: Works with Allen-Bradley SLC 500 processors and chassis.
- Diagnostics: Status indicators and fault detection for reliable monitoring.
- Installation: Rack-mounted design for SLC 500 I/O systems.
- Application Range: Suitable for process control, industrial furnaces, and temperature monitoring.
The 1746-HT delivers the accuracy, flexibility, and reliability required for high-performance temperature measurement in SLC 500 automation systems.
