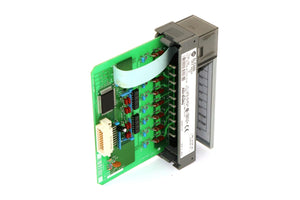

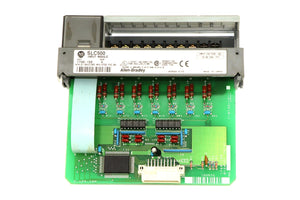

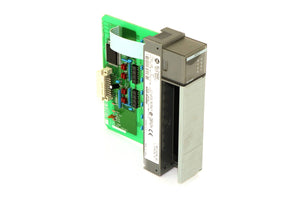

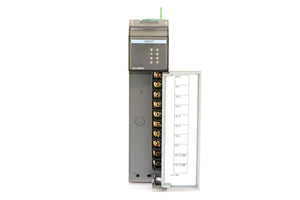

Part #: 1746-IB8 Manufactured by: Allen Bradley
Regular price
$224.00
Sale price
$224.00
Regular price
17 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1746-IB8 is an 8-channel sinking digital input module for SLC 500 systems, supporting 24V DC signals. It...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1746-IB8
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1746-IB8

Description / Specifications

Description

The Allen-Bradley 1746-IB8 is a digital input module for the SLC 500 system, featuring 8 sinking input channels. It supports 24V DC signals and offers reliable monitoring of discrete inputs in industrial automation applications.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen Bradley
Category PLCs/Machine Control
Part Number 1746-IB8
Subcategory
PLC Module/Rack
Weight  0.35 lbs
Voltage Range 10-30 Volts DC Sink
Inputs 8
Backplane Current (5 Volts DC) 50 milliamps
Off State Current 1 milliamps
Signal Delay 8 milliseconds
I/O Connection 1746-HT and 1746-HCA
Step Response 100 milliseconds in, 2.5 milliseconds out
Temperature 0 and 60 °C (32 and 140 °F)
Relative Humidity 5 to 95% without condensation
Vibration 2.5G at 57-500Hz
Shock Rating 30G





Information About 1746-IB8

The Allen-Bradley 1746-IB8 is a digital input module designed for the SLC 500 series, providing reliable and efficient monitoring of DC signals in industrial automation systems. This sinking input module is well-suited for various control applications requiring precise detection of discrete inputs.

Key Features:

  • Model: 1746-IB8
  • Type: Digital Input Module (Sinking)
  • Manufacturer: Allen-Bradley
  • Input Channels: 8 sinking input channels
  • Voltage Range: Supports 24V DC signals
  • Current Draw: Designed for low-power consumption to improve system efficiency
  • LED Indicators: Displays the status of each input for easy diagnostics
  • Compatibility: Works seamlessly with SLC 500 controllers and chassis
  • Compact Design: Optimized for space-saving installations in control panels

Applications:

  • Industrial Automation: Monitors discrete inputs from switches, sensors, and other devices
  • Process Control: Detects and manages digital signals for precise control in manufacturing and processing
  • Machine Control: Supports input signal acquisition for machinery and equipment
  • Distributed Control Systems: Ideal for use in scalable and modular automation systems

The Allen-Bradley 1746-IB8 digital input module offers robust performance and versatility, making it a dependable component in SLC 500-based automation systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
