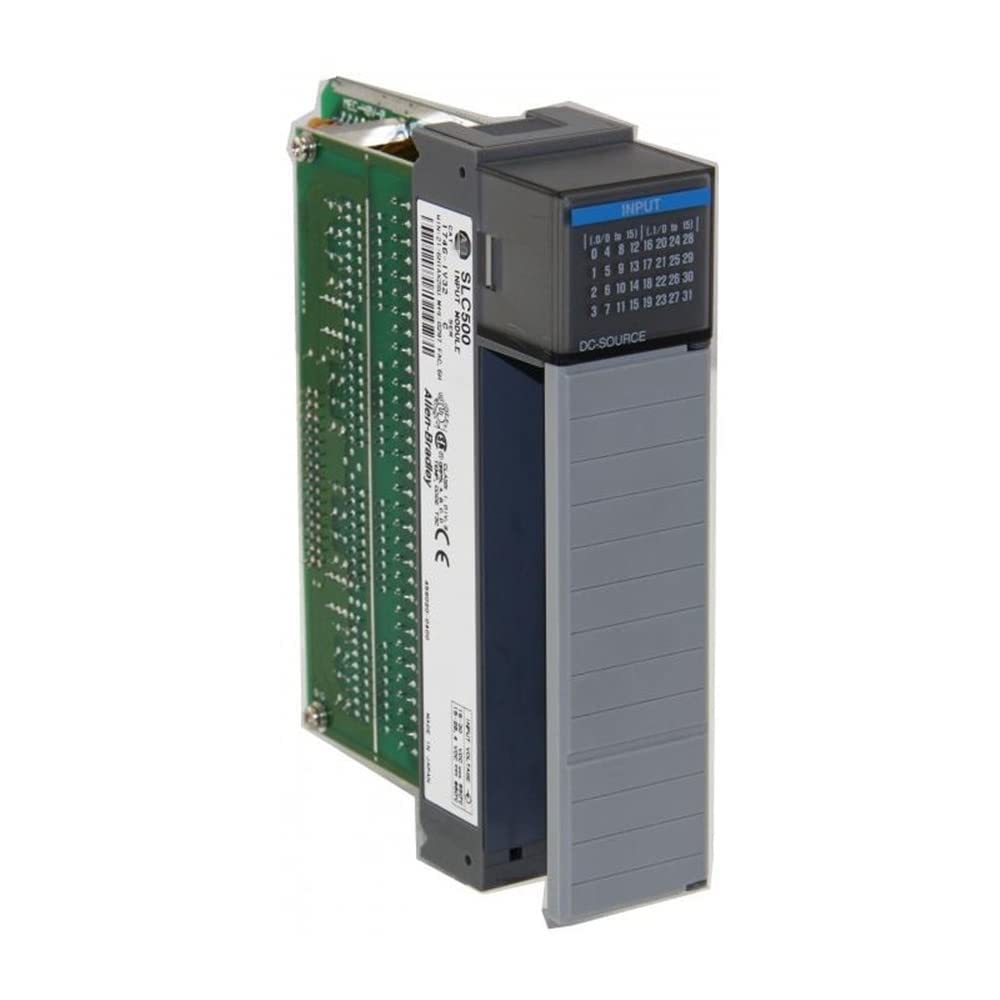

Part #: 1746-IV32 Manufactured by: Allen Bradley
Regular price
$134.00
Sale price
$134.00
Regular price
12 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1746-IV32 is a discrete input module for SLC 500 systems, featuring 32 sourcing input channels and suppo...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1746-IV32
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1746-IV32

Description / Specifications

Description

The Allen-Bradley 1746-IV32 is a discrete input module for SLC 500 systems, featuring 32 sourcing input channels. It supports 24V DC signals, providing reliable signal monitoring for industrial automation applications.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen Bradley
Category PLCs/Machine Control
Part Number 1746-IV32
Subcategory
PLC Module/Rack
Weight  0.35 lbs
Signal Delay ON = 3 ms; OFF = 8 ms
No. of groups 4
Input Voltage Range 15 to 30V dc at 50° C; 15 to 26.4V dc at 60° C
On-state Voltage, min. 15.0V DC
Off-state Voltage, max 5.0V DC
Off-state Current, max 1.5 mA
Input Current 5.1 mA at 24V dc
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Temperature 0...+60 °C (+32...+140 °F)
Relative Humidity 5 to 95% without condensation
Agency Certification UL / C-UL listed Class I, Division 2, Groups A, B, C, D CE marked for all applicable directives C-Tick marked for all applicable acts
Voltage Range 15-30 Volts DC Source
Inputs 32
Backplane Current (5 Volts DC) 106 milliamps
Off State Current 1 milliamp
Applications Combination 120 Volts AC I/O





Information About 1746-IV32

The Allen-Bradley 1746-IV32 is a discrete input module designed for the SLC 500 series, offering reliable monitoring of DC signals in industrial automation systems. With 32 sourcing input channels, it provides high-density input capabilities, making it ideal for space-constrained applications requiring extensive signal monitoring.

Key Features:

  • Model: 1746-IV32
  • Type: Discrete Input Module (Sourcing)
  • Manufacturer: Allen-Bradley
  • Input Channels: 32 sourcing input channels for efficient signal monitoring
  • Voltage Range: Supports 24V DC signals
  • Current Rating: Designed for low power consumption to improve overall system efficiency
  • LED Indicators: Includes status indicators for each input channel to simplify diagnostics
  • Compact Design: High-density module saves space in control panels
  • Compatibility: Fully compatible with SLC 500 controllers and chassis

Applications:

  • Industrial Automation: Monitors discrete signals from sensors, switches, and other field devices
  • Process Control: Detects and manages signals in manufacturing and processing environments
  • Machine Control: Supports input acquisition for controlling complex machinery
  • Distributed Control Systems: Ideal for scalable and modular automation architectures

The Allen-Bradley 1746-IV32 discrete input module is a robust and efficient solution for monitoring digital signals in various industrial applications, offering dependability and performance in a compact form.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1746-IV32 is a discrete input module for SLC 500 systems, featuring 32 sourcing input channels. It supports 24V DC signals, providing reliable signal monitoring for industrial automation applications.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen Bradley
Category PLCs/Machine Control
Part Number 1746-IV32
Subcategory
PLC Module/Rack
Weight  0.35 lbs
Signal Delay ON = 3 ms; OFF = 8 ms
No. of groups 4
Input Voltage Range 15 to 30V dc at 50° C; 15 to 26.4V dc at 60° C
On-state Voltage, min. 15.0V DC
Off-state Voltage, max 5.0V DC
Off-state Current, max 1.5 mA
Input Current 5.1 mA at 24V dc
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Temperature 0...+60 °C (+32...+140 °F)
Relative Humidity 5 to 95% without condensation
Agency Certification UL / C-UL listed Class I, Division 2, Groups A, B, C, D CE marked for all applicable directives C-Tick marked for all applicable acts
Voltage Range 15-30 Volts DC Source
Inputs 32
Backplane Current (5 Volts DC) 106 milliamps
Off State Current 1 milliamp
Applications Combination 120 Volts AC I/O





Information About 1746-IV32

The Allen-Bradley 1746-IV32 is a discrete input module designed for the SLC 500 series, offering reliable monitoring of DC signals in industrial automation systems. With 32 sourcing input channels, it provides high-density input capabilities, making it ideal for space-constrained applications requiring extensive signal monitoring.

Key Features:

  • Model: 1746-IV32
  • Type: Discrete Input Module (Sourcing)
  • Manufacturer: Allen-Bradley
  • Input Channels: 32 sourcing input channels for efficient signal monitoring
  • Voltage Range: Supports 24V DC signals
  • Current Rating: Designed for low power consumption to improve overall system efficiency
  • LED Indicators: Includes status indicators for each input channel to simplify diagnostics
  • Compact Design: High-density module saves space in control panels
  • Compatibility: Fully compatible with SLC 500 controllers and chassis

Applications:

  • Industrial Automation: Monitors discrete signals from sensors, switches, and other field devices
  • Process Control: Detects and manages signals in manufacturing and processing environments
  • Machine Control: Supports input acquisition for controlling complex machinery
  • Distributed Control Systems: Ideal for scalable and modular automation architectures

The Allen-Bradley 1746-IV32 discrete input module is a robust and efficient solution for monitoring digital signals in various industrial applications, offering dependability and performance in a compact form.
