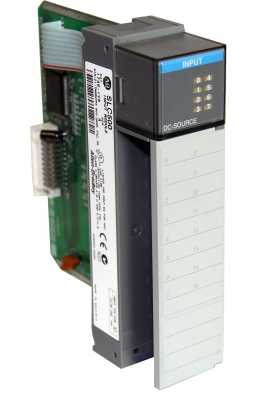

1746-IV8 | Allen Bradley Discrete Input Module
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1746-IV8
Description
The Allen-Bradley 1746-IV8 is a Discrete Input Module for the SLC 500 system, featuring 8 input channels with 24V DC signal compatibility, providing reliable input processing for industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category |
PLCs/Machine Control
|
| Part Number | 1746-IV8 |
| Subcategory |
PLC Module/Rack
|
| Weight | 0.35 lbs |
| No. of Groups | 1 |
| Input Voltage Range | 10-30 VDC |
| Off-state Voltage | 5.0V DC |
| Off-state Current | 1 mA |
| Input Current | 8 mA @ 24V DC, nom |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0...+60 °C (+32...+140 °F) |
| Relative Humidity | 5 to 95% without condensation |
| Inputs | 8 |
| Backplane Current (5 Volts DC) | 50 milliamps |
| Off State Current | 1 milliamps |
| Applications | Combination 120 Volts AC I/O |
Information About 1746-IV8
The Allen-Bradley 1746-IV8 is a Discrete Input Module designed for use with the SLC 500 series controllers. This module features 8 input channels, providing reliable 24V DC signal processing for industrial automation systems. It is ideal for applications where discrete input signals, such as those from push buttons or limit switches, need to be captured and processed by the SLC 500 system.
Key Features:
- Model: 1746-IV8
- Type: Discrete Input Module
- Manufacturer: Allen-Bradley
- Inputs: 8 discrete input channels
- Input Voltage: 24V DC
- Signal Compatibility: Accepts standard industrial digital inputs such as contacts, switches, and sensors
- Diagnostic LEDs: Provides real-time status and fault indicators for each input channel
- Compatibility: Fully integrates with the SLC 500 series PLCs for industrial automation tasks
- Form Factor: Standard SLC 500 I/O module form, easily installed in the chassis
- Environmental Rating: Designed for industrial environments with reliable performance under harsh conditions
- Certifications: Meets UL, CE, and other relevant industry certifications
Applications:
- Industrial Automation: Used to capture discrete signals from field devices in SLC 500 systems
- Machine Control: Interfaces with sensors, limit switches, and other devices in automation and control systems
- Process Control: Provides input channels for monitoring equipment and systems in manufacturing processes
- Discrete Monitoring: Ideal for monitoring digital on/off signals in industrial control applications
The Allen-Bradley 1746-IV8 Discrete Input Module is a reliable solution for processing 24V DC digital inputs in SLC 500 systems, offering flexibility and robustness for industrial automation applications.
