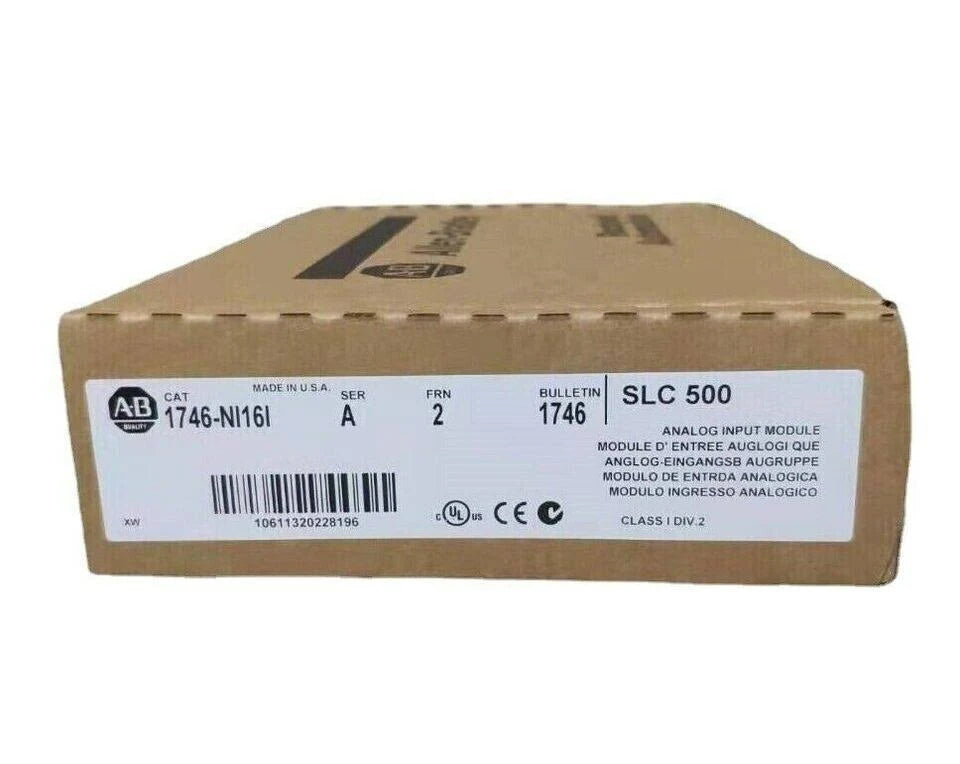

1746-NI16I | Allen-Bradley SLC 500 Analog Current Input Module 16-Inputs
1746-NI16I | Allen-Bradley SLC 500 Analog Current Input Module 16-Inputs
Part #: 1746-NI16I Manufactured by: Allen-Bradley

1746-NI16I | Allen-Bradley SLC 500 Analog Current Input Module 16-Inputs

Regular price
$899.00
Sale price
$899.00
Regular price
Never Used Surplus
25 in Stock
Product Overview
The Allen-Bradley 1746-NI16I is a SLC 500 Analog I/O Module. This Analog I/O Module has 16 Inputs and a Backplane Current ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1746-NI16I
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1746-NI16I | Allen-Bradley SLC 500 Analog Current Input Module 16-Inputs
    1746-NI16I | Allen-Bradley SLC 500 Analog Current Input Module 16-Inputs
1746-NI16I | Allen-Bradley SLC 500 Analog Current Input Module 16-Inputs
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1746-NI16I

Description / Specifications

Description

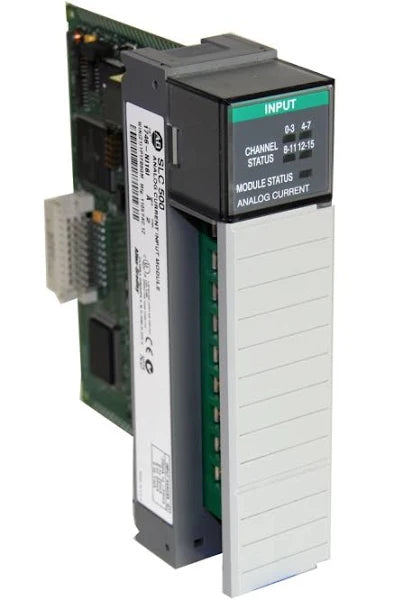

The Allen-Bradley 1746-NI16I is a SLC 500 Analog I/O Module. This Analog I/O Module has Sixteen (16) Inputs configurable for 0 to 20 mA, 4 to 20 mA, ±20 mA, and 0 to 1 mA. This module is a single-slot module.



Technical Specifications



Brand Allen-Bradley
Series SLC 500
Part Number 1746-NI16I
Manufacturer Rockwell Automation
Module Type Analog I/O Module
Backplane Current (5 Volts) 125 milliamps
Inputs 16
Backplane Current (24 Volts DC) 75 milliamps
Electrical Signal type 0 to 20 mA, 4 to 20 mA, ±20 mA, and 0 to 1 mA
Bandwidth 6-250 Hertz
Chassis location Any I/O module slot except slot 0
Step Response 9-630 milliseconds
Backplane Current (5 Volts) 125 mA;(24 Volts DC)75 mA
Conversion type Sigma - Delta
Thermal Dissipation 2.43 Watts
Input Filtering Low-pass digital filter with programmable filter frequencies
Applications Combination 120 Volts AC I/O
Input Filter Frequencies 6 Hz, 10 Hz, 20 Hz, 40 Hz, 60 Hz, 80 Hz, 100 Hz, 250 Hz
Isolation 500V ac isolation for 1 second
LED Indicators 5 green status indicators one for each group of 4 channels, and one for module status





Information About 1746-NI16I

The Allen Bradley 1746-NI16I is an Analog Input Module, with 16-bit resolution and 16 input channels. This module falls into a Voltage Category of -20 to 20 mA. Its backplane current at 5 Volts is 125 mA, while 24 Volts results in 75 mA. Its backplane power consumption is 2.425 Watts maximum (0.625 Watts at 5 Volts DC and 1.8 Watts at 24 Volts DC). The common mode voltage range of this module is +/-10.25 Volts relative to the analog common terminal.

This unit has a relative humidity of 5% to 95% without condensation. Its operating temperature range is -25 to 60 degrees Celsius (-13 to 140 degrees Fahrenheit) while its nonoperating temperature lies between -40 and 85 degrees Celsius (-40 and 185 degrees Fahrenheit). Its Input impedance is 249; its maximum voltage input is ±8 Volts between analog common and any input terminal, and the maximum current input is ±30 mA. The thermal dissipation of this module is 2.43 Watts, and the AIFM Connector of this module is 25-pin D-shell. When installing modules in the chassis, it is not necessary to remove the terminal blocks from the module. However, if the terminal block is removed, use the label located next to the terminal block to identify the location and type of module.

Analog inputs are used to interface analog process variables to measure its magnitude. It is primarily used to monitor or used as feedback signal for closed loop control systems to implement manual or automatic control with the use of control methods typically Proportional-Integral-Derivative (PID) algorithm. Without this feedback signal, automatic control cannot be fully implemented.

Other parameters may also be defined to fine tune the module’s operation. It has a user selectable Data Format that such as Engineering Units, Scaled for PID, Proportional Counts with -32,768 to +32,767 range and Proportional Counts with User-Defined Range, Class 3 only. This module also features capability of detecting an open circuit with reference to the input channel. The module’s time to actuate is less than 5 Seconds. When wiring signals to the module, recommended cable is Belden #8761 or any equivalent may be used. Use a maximum wire size of 14 AWG. Up to Two (2) wires may be terminated per terminal. These are recommended to avoid cluttering and difficulty to close the module door.

This High-Resolution Analog Input module has 5 green status indicators one for each group of 4 channels, and one for module status to provide visual indication regarding the module’s state and channel operation.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1746-NI16I is a SLC 500 Analog I/O Module. This Analog I/O Module has Sixteen (16) Inputs configurable for 0 to 20 mA, 4 to 20 mA, ±20 mA, and 0 to 1 mA. This module is a single-slot module.



Technical Specifications



Brand Allen-Bradley
Series SLC 500
Part Number 1746-NI16I
Manufacturer Rockwell Automation
Module Type Analog I/O Module
Backplane Current (5 Volts) 125 milliamps
Inputs 16
Backplane Current (24 Volts DC) 75 milliamps
Electrical Signal type 0 to 20 mA, 4 to 20 mA, ±20 mA, and 0 to 1 mA
Bandwidth 6-250 Hertz
Chassis location Any I/O module slot except slot 0
Step Response 9-630 milliseconds
Backplane Current (5 Volts) 125 mA;(24 Volts DC)75 mA
Conversion type Sigma - Delta
Thermal Dissipation 2.43 Watts
Input Filtering Low-pass digital filter with programmable filter frequencies
Applications Combination 120 Volts AC I/O
Input Filter Frequencies 6 Hz, 10 Hz, 20 Hz, 40 Hz, 60 Hz, 80 Hz, 100 Hz, 250 Hz
Isolation 500V ac isolation for 1 second
LED Indicators 5 green status indicators one for each group of 4 channels, and one for module status





Information About 1746-NI16I

The Allen Bradley 1746-NI16I is an Analog Input Module, with 16-bit resolution and 16 input channels. This module falls into a Voltage Category of -20 to 20 mA. Its backplane current at 5 Volts is 125 mA, while 24 Volts results in 75 mA. Its backplane power consumption is 2.425 Watts maximum (0.625 Watts at 5 Volts DC and 1.8 Watts at 24 Volts DC). The common mode voltage range of this module is +/-10.25 Volts relative to the analog common terminal.

This unit has a relative humidity of 5% to 95% without condensation. Its operating temperature range is -25 to 60 degrees Celsius (-13 to 140 degrees Fahrenheit) while its nonoperating temperature lies between -40 and 85 degrees Celsius (-40 and 185 degrees Fahrenheit). Its Input impedance is 249; its maximum voltage input is ±8 Volts between analog common and any input terminal, and the maximum current input is ±30 mA. The thermal dissipation of this module is 2.43 Watts, and the AIFM Connector of this module is 25-pin D-shell. When installing modules in the chassis, it is not necessary to remove the terminal blocks from the module. However, if the terminal block is removed, use the label located next to the terminal block to identify the location and type of module.

Analog inputs are used to interface analog process variables to measure its magnitude. It is primarily used to monitor or used as feedback signal for closed loop control systems to implement manual or automatic control with the use of control methods typically Proportional-Integral-Derivative (PID) algorithm. Without this feedback signal, automatic control cannot be fully implemented.

Other parameters may also be defined to fine tune the module’s operation. It has a user selectable Data Format that such as Engineering Units, Scaled for PID, Proportional Counts with -32,768 to +32,767 range and Proportional Counts with User-Defined Range, Class 3 only. This module also features capability of detecting an open circuit with reference to the input channel. The module’s time to actuate is less than 5 Seconds. When wiring signals to the module, recommended cable is Belden #8761 or any equivalent may be used. Use a maximum wire size of 14 AWG. Up to Two (2) wires may be terminated per terminal. These are recommended to avoid cluttering and difficulty to close the module door.

This High-Resolution Analog Input module has 5 green status indicators one for each group of 4 channels, and one for module status to provide visual indication regarding the module’s state and channel operation.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
