Part #: 1746-NI4 Manufactured by: Allen-Bradley
Regular price
$239.00
Sale price
$239.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1746-NI4 is a SLC 500 Analog I/O Module. This Analog I/O Module has 4 Inputs and a Backplane Current (5 ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1746-NI4
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1746-NI4

Description / Specifications

Description

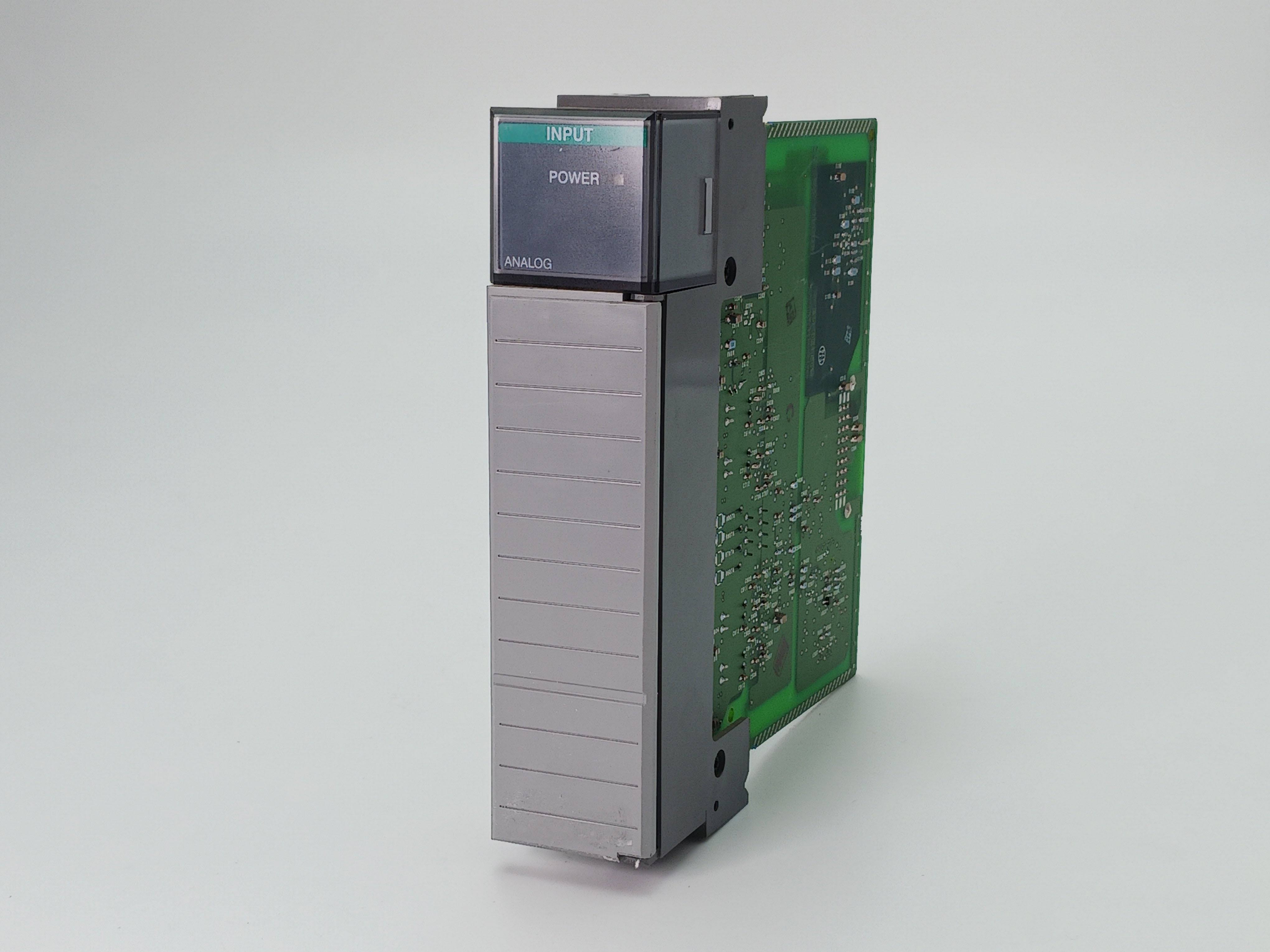

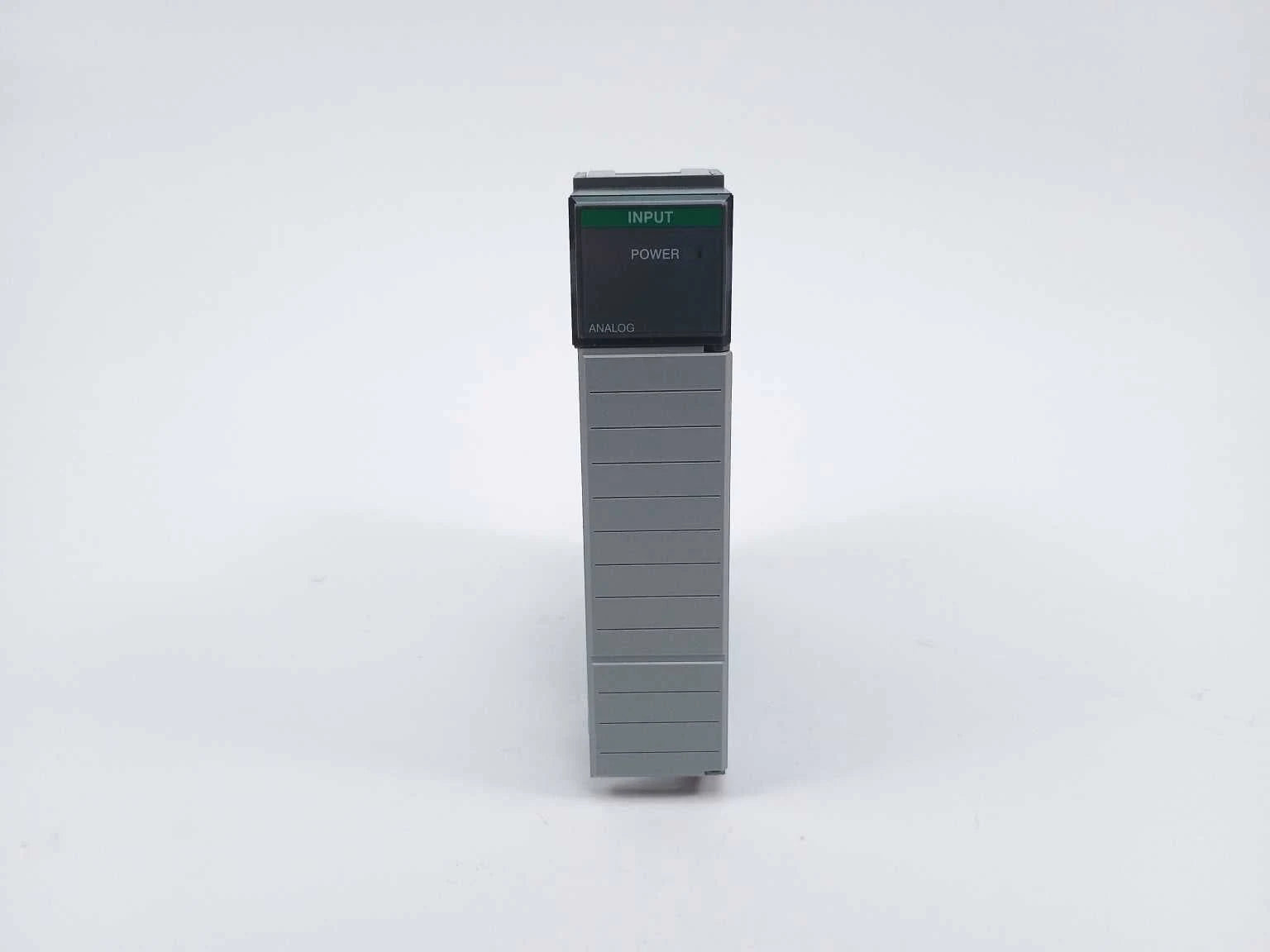

The Allen-Bradley 1746-NI4 is a SLC 500 Analog I/O Module. This Analog I/O Module has Four (4) non-isolated differential, voltage or current selectable input channels. This module occupies single slot of the SLC 500 chassis and compatible with fixed or modular style hardware.



Technical Specifications



Brand Allen-Bradley
Series SLC 500
Part Number 1746-NI4
Manufacturer Rockwell Automation
Module Type Analog I/O Module
Backplane Current (5 Volts) 25 milliamps
Backplane Current (24 Volts DC) 85 milliamps
Input signal Category -20 to +20 mA (or) -10 to +10V dc
Bandwidth 10 Hertz
Current Input Coding -16,384 to +16,384
Update Time 512 microseconds
Voltage Input Coding -32,768 to +32,767
Resolution 16 bits
Chassis location Any I/O module slot except slot 0
Backplane Current (5 Volts) 35 mA;(24 Volts DC) 85 mA
Step Response 60 milliseconds
Conversion type Delta–Sigma Modulation
Applications Combination 120 Volts AC I/O
Converter Resolution 16 bit
Cable Lengths 0.5, 1, 2.5, or 5.0 meters.
Repeatability ±1 LSB





Information About 1746-NI4

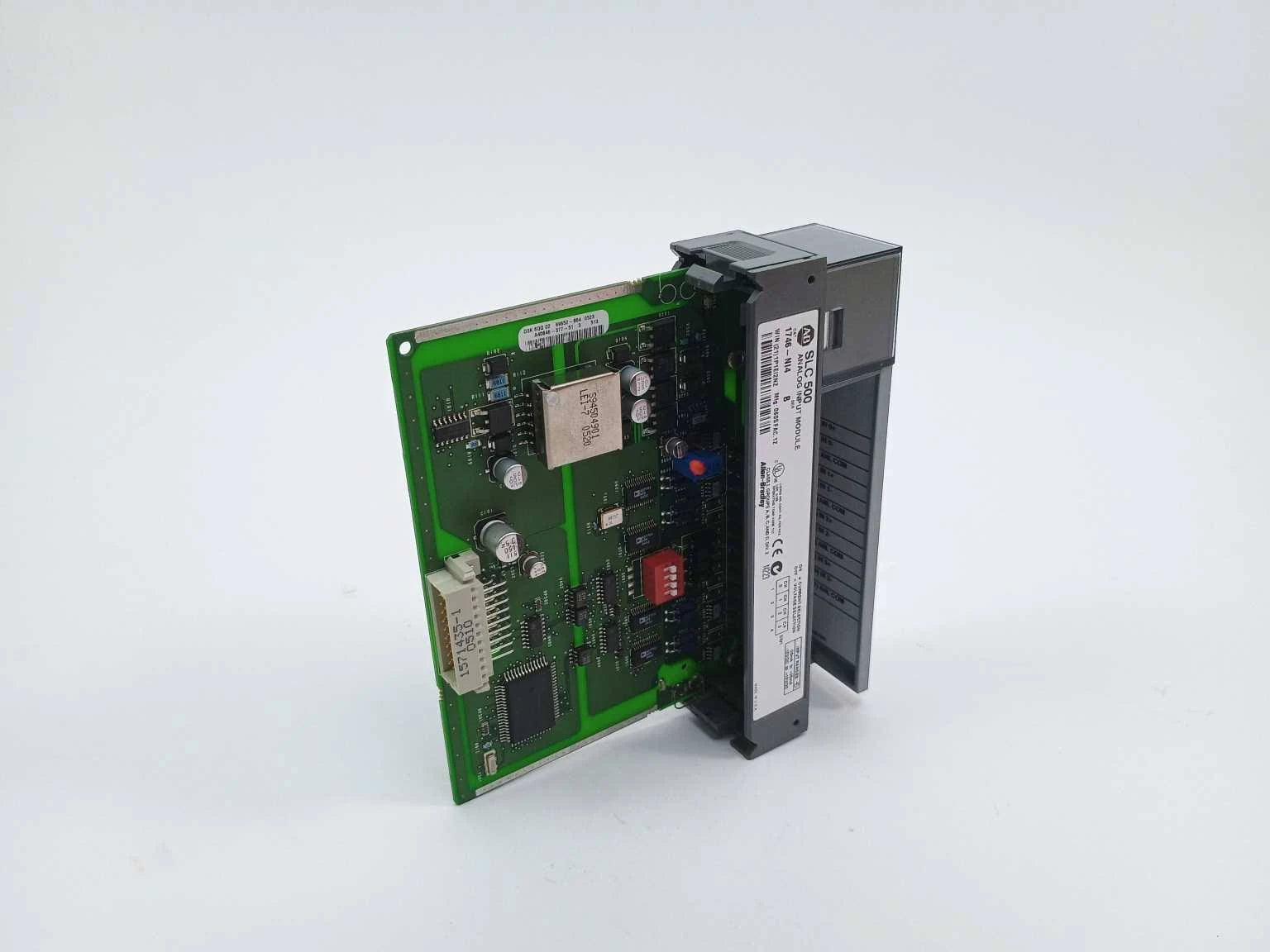

The Allen Bradley 1746-NI4 is an SLC 500 Four (4) Channel Analog Input Module. It has user-selectable analog channels for voltage or current to support multiple monitoring and control applications; it has a 16-bit resolution and contains a removable terminal block that provides connections analog input channel. This channel can be connected as a differential input. There is a DIP that switches on the circuit board to select the input or current voltage. The Backplane current at 5 Volts of this module is 25 mA; at 24 Volts, the current is 85 mA. Caution should be given to avoid connecting the voltage source without the transmitter current, etc. to the channel configured for current input. Incorrect module operation or module damage may occur.

The 1746-NI4 has Standard Cable Lengths of 0.5, 1, 2.5, and 5.0 meters. The AIFM Connector of this module is 15-pin D-shell. The Allen Bradley 1746-NI4 has Current Loop Input Specifications: the input range is +/-20 mA (nominal) and +/-30 mA (maximum). The Input impedance is 250 Ohms with a resolution of 1.22070 & µA per LSB and an approximate Gain error drift of +/-67 ppm/degrees Celsius. The overall accuracy at 25 degrees Celsius is +/- 0.365% of full scale, +/- 0.642% at 60 degrees Celsius. The overall accuracy drift is +79 ppm/degree Celsius of full scale. The 1746-NI4’s input voltage range is +/-10 Volts DC -1 LSB. Its impedance is 1 mega Ohms. The accuracy drift is +63 ppm/ degrees Celsius of full scale. The Resolution is 305.176 & µV per LSB, with a Gain error drift at +/- 57 ppm/degree Celsius. The Overall accuracy at 25 degrees Celsius is +/-0.284% of full scale, and +/-0.504% at 60 degrees Celsius.

The 1746-NI4 is an analog input module from the SLC 500 series of Allen-Bradley. It features Four (4) differential non-isolated input channels, individually selectable for voltage or current input. Selectable input signals ranges include -20 to +20 mA (or) -10 to +10V dc.

The module operates by converting the analog input signal via the Delta–Sigma Modulation with range of -16,384 to +16,384 for Current input and -32,768 to +32,767 for Voltage input. The converted data may be processed with the use of Scaling algorithm to display the measured process variable. Both method produces the same scaled output.

This module is compatible of being used with a fixed or modular hardware style SLC 500 controller. The Fixed hardware version of SLC 500 comes with embedded I/O channels with limited expansion capabilities. The modular hardware SLC 500 PLC features a fully modular and customizable system.

This module has built-in LED indicator for indicating the status of each channel and the overall status of the module’s operation. This provides quick module diagnostic which may also be accessed via the controller’s diagnostic interrupt. This system of reporting allows faster troubleshooting period and increases the availability of the module.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1746-NI4 is a SLC 500 Analog I/O Module. This Analog I/O Module has Four (4) non-isolated differential, voltage or current selectable input channels. This module occupies single slot of the SLC 500 chassis and compatible with fixed or modular style hardware.



Technical Specifications



Brand Allen-Bradley
Series SLC 500
Part Number 1746-NI4
Manufacturer Rockwell Automation
Module Type Analog I/O Module
Backplane Current (5 Volts) 25 milliamps
Backplane Current (24 Volts DC) 85 milliamps
Input signal Category -20 to +20 mA (or) -10 to +10V dc
Bandwidth 10 Hertz
Current Input Coding -16,384 to +16,384
Update Time 512 microseconds
Voltage Input Coding -32,768 to +32,767
Resolution 16 bits
Chassis location Any I/O module slot except slot 0
Backplane Current (5 Volts) 35 mA;(24 Volts DC) 85 mA
Step Response 60 milliseconds
Conversion type Delta–Sigma Modulation
Applications Combination 120 Volts AC I/O
Converter Resolution 16 bit
Cable Lengths 0.5, 1, 2.5, or 5.0 meters.
Repeatability ±1 LSB





Information About 1746-NI4

The Allen Bradley 1746-NI4 is an SLC 500 Four (4) Channel Analog Input Module. It has user-selectable analog channels for voltage or current to support multiple monitoring and control applications; it has a 16-bit resolution and contains a removable terminal block that provides connections analog input channel. This channel can be connected as a differential input. There is a DIP that switches on the circuit board to select the input or current voltage. The Backplane current at 5 Volts of this module is 25 mA; at 24 Volts, the current is 85 mA. Caution should be given to avoid connecting the voltage source without the transmitter current, etc. to the channel configured for current input. Incorrect module operation or module damage may occur.

The 1746-NI4 has Standard Cable Lengths of 0.5, 1, 2.5, and 5.0 meters. The AIFM Connector of this module is 15-pin D-shell. The Allen Bradley 1746-NI4 has Current Loop Input Specifications: the input range is +/-20 mA (nominal) and +/-30 mA (maximum). The Input impedance is 250 Ohms with a resolution of 1.22070 & µA per LSB and an approximate Gain error drift of +/-67 ppm/degrees Celsius. The overall accuracy at 25 degrees Celsius is +/- 0.365% of full scale, +/- 0.642% at 60 degrees Celsius. The overall accuracy drift is +79 ppm/degree Celsius of full scale. The 1746-NI4’s input voltage range is +/-10 Volts DC -1 LSB. Its impedance is 1 mega Ohms. The accuracy drift is +63 ppm/ degrees Celsius of full scale. The Resolution is 305.176 & µV per LSB, with a Gain error drift at +/- 57 ppm/degree Celsius. The Overall accuracy at 25 degrees Celsius is +/-0.284% of full scale, and +/-0.504% at 60 degrees Celsius.

The 1746-NI4 is an analog input module from the SLC 500 series of Allen-Bradley. It features Four (4) differential non-isolated input channels, individually selectable for voltage or current input. Selectable input signals ranges include -20 to +20 mA (or) -10 to +10V dc.

The module operates by converting the analog input signal via the Delta–Sigma Modulation with range of -16,384 to +16,384 for Current input and -32,768 to +32,767 for Voltage input. The converted data may be processed with the use of Scaling algorithm to display the measured process variable. Both method produces the same scaled output.

This module is compatible of being used with a fixed or modular hardware style SLC 500 controller. The Fixed hardware version of SLC 500 comes with embedded I/O channels with limited expansion capabilities. The modular hardware SLC 500 PLC features a fully modular and customizable system.

This module has built-in LED indicator for indicating the status of each channel and the overall status of the module’s operation. This provides quick module diagnostic which may also be accessed via the controller’s diagnostic interrupt. This system of reporting allows faster troubleshooting period and increases the availability of the module.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
