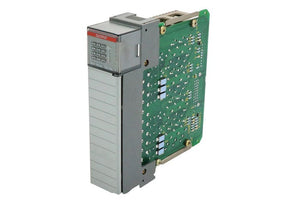

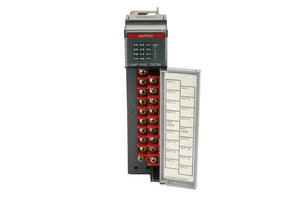

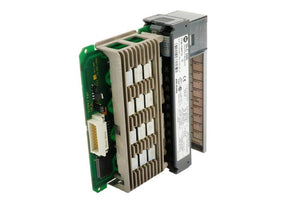

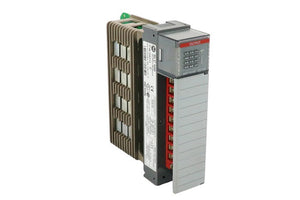

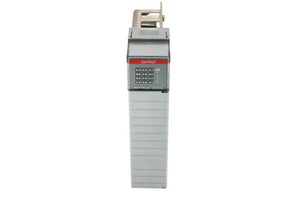

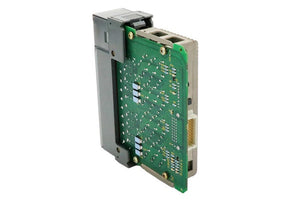

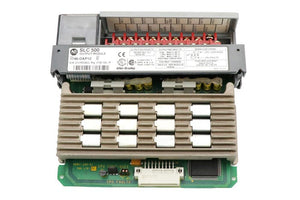

1746-OAP12 | Allen Bradley Output Module SLC 500
- Regular price
- $775.00
- Sale price
- $775.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: 1746-OAP12
Description
The Allen Bradley 1746-OAP12 is a high-performance output module for SLC 500 systems, delivering reliable control for industrial applications. With 12 high-current outputs, it operates at 120/240 VAC, ensuring efficient power handling for demanding operations.
Technical Specifications
Condition | New/Never Used Surplus |
Brand | Allen Bradley |
Category | PLCs and Accessories |
Series | SLC500 |
Part Number | 1746-OAP12 |
Subcategory | PLC Expansion Modules |
No. of Outputs | 12 Inputs |
Output Voltage | 120 / 240VAC output |
Operating Voltage Range | 85-264 VAC |
Output Delay Time, OFF to ON | 11 ms |
Output Delay Time, ON to OFF | 1 ms |
OFF state leakage current | 2 mA |
Load Current | 10 mA |
Information About 1746-OAP12
The 1746-OAP12 is designed to provide twelve high-current outputs, making it ideal for applications requiring robust power control. It operates within a voltage range of 85-264 VAC, ensuring compatibility with various industrial environments. The module features fast response times, with an 11 ms delay from OFF to ON and 1 ms from ON to OFF, enhancing operational efficiency. Leakage current in the OFF state is limited to 2 mA, ensuring minimal energy loss.
Key Features:
- 12 high-current outputs
- Operating voltage range: 85-264 VAC
- Output voltage: 120/240 VAC
- Fast switching with 11 ms OFF to ON and 1 ms ON to OFF delay
- Low OFF-state leakage current of 2 mA
With its reliable performance and high current capacity, the 1746-OAP12 is a valuable addition to any SLC 500 control system. It ensures smooth operation, reducing downtime and increasing productivity.
