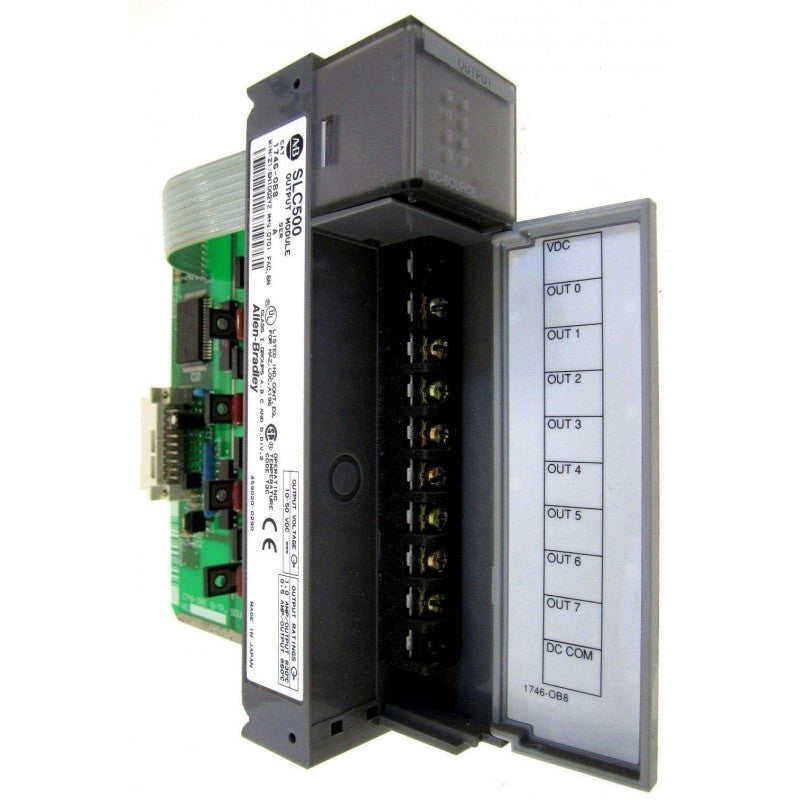

1746-OB8 | Allen Bradley SLC 500 8-Channel DC Output Module
- Regular price
- $359.00
- Sale price
- $359.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1746-OB8
Description
The Allen-Bradley 1746-OB8 is an 8-channel Digital DC Output Module from the SLC 500 series. Designed for industrial automation, it supports a voltage range of 10-50V DC with reliable performance for output control tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1746-OB8 |
| Subcategory | PLC Expansion Modules |
| Series | SLC 500 |
| Module Type | Digital DC Output Module |
| Voltage Range | 10-50 Volts DC Source |
| Outputs | 8 |
| Current/Output | 1 or 0.5 amps |
| Current/Module | 8 or 4 amps |
| Backplane Current (5 Volts) | 135 milliamps |
| Applications | High Current |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
Information About 1746-OB8
The 1746-OB8 is a high-performance DC output module from Allen-Bradley’s SLC 500 series, featuring 8 output channels for efficient and reliable control. Operating within a voltage range of 10-50V DC, each output channel can handle up to 1A or 0.5A of current, depending on system requirements. The module is designed for seamless integration into SLC 500 systems, with a backplane current consumption rating of 0.135A at 5V DC. With a total heat dissipation of 6.9W and 0.775W per output point, the module ensures energy efficiency while maintaining robust performance.
Key Features:
- Outputs: 8 digital DC output channels for versatile control.
- Voltage Range: Operates between 10-50V DC, ensuring compatibility with various systems.
- Current Rating: Each output supports 1A or 0.5A of current, suitable for multiple applications.
- Heat Dissipation: Total dissipation of 6.9W and 0.775W per point for efficient energy management.
The Allen-Bradley 1746-OB8 offers reliable performance and efficient energy use, making it an ideal solution for DC output control in industrial automation systems. Its durability and flexibility ensure long-term functionality in demanding environments.
