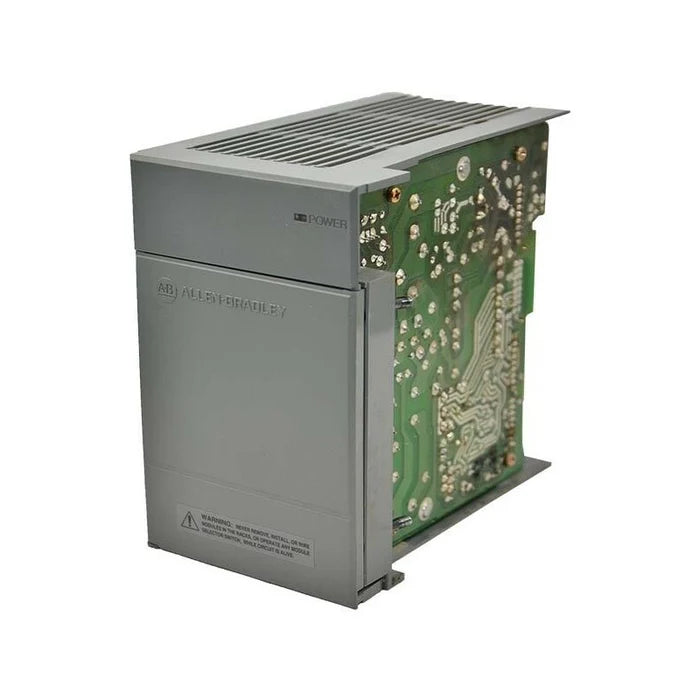

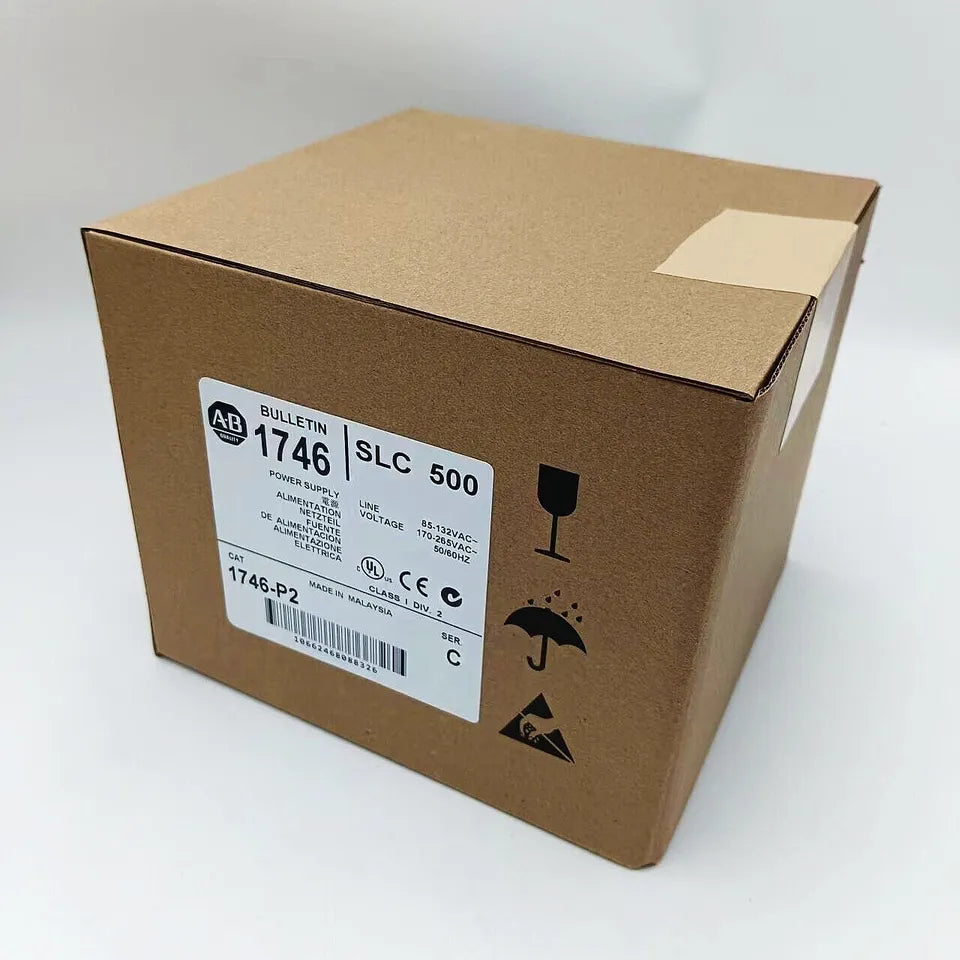

1746-P2 | Allen-Bradley SLC 500 Rack Mount Power Supply 120/240V AC 5A, Series C
1746-P2 | Allen-Bradley SLC 500 Rack Mount Power Supply 120/240V AC 5A, Series C
Part #: 1746-P2 Manufactured by: Allen-Bradley

1746-P2 | Allen-Bradley SLC 500 Rack Mount Power Supply 120/240V AC 5A, Series C

Regular price
$875.00
Sale price
$875.00
Regular price
Never Used Surplus
25 in Stock
Product Overview
The Allen-Bradley 1746-P2 is a SLC 500 Power Supply. This Power Supply has an Input Voltage of 120/220 Volts AC and an Inp...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1746-P2
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1746-P2 | Allen-Bradley SLC 500 Rack Mount Power Supply 120/240V AC 5A, Series C
    1746-P2 | Allen-Bradley SLC 500 Rack Mount Power Supply 120/240V AC 5A, Series C
1746-P2 | Allen-Bradley SLC 500 Rack Mount Power Supply 120/240V AC 5A, Series C
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1746-P2

Description / Specifications

Description


The Allen-Bradley 1746-P2 is a SLC 500 Power Supply. This Power Supply has a nominal Input Voltage of 120/220 Volts AC. It has an internal Current capacity of 5 A at 5V dc 0.96 A at 24V dc. It provides a 24VDC voltage output with built-in fuse protection.



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1746-P2
Series SLC 500
Module Type Power Supply
Input Power 70 Watts
Input Voltage 120 to 220 Volts AC
Typical line power requirement 180VA
Inrush Current 20 Amps
Backplane Current (5 Volts) 5 amps
Internal Current Capacity 5 A at 5V dc; 0.96 A at 24V dc
Output Voltage Range 18 to 30 Volts DC
CPU Hold up time 20 ms (full load) 3000 ms (no load)
Backplane Current (24 Volts) 0.46 Amps
Frequency 47 to 63 Hertz
Location 1746 Chassis
Dimensions 5.5 x 3.3 x 5.7 inches
Operating Temperature 0 to 60 Celsius
Fuse Protection 1746-F1 or equivalent





Information About 1746-P2

The Allen-Bradley 1746-P2 is an SLC 500 modular power supply. It comes with an input voltage of 85-132 or 170-265V AC at 47-63 Hz. Its internal current capacity at 5V is 5 A and it is 0.96 A at 24V. This power supply also comes with a maximum user-supplied overcurrent protection of 15 A and a maximum inrush current of 20 A. It has a 180 VA typical line power requirement and an input terminal and backplane isolation of 1800V AC RMS for 1 s. User-power current capacity at 24V DC is 200 mA and the user-power voltage range of the power supply, also at 24V DC, is 18-30V DC.

It has a maximum of two AWG wires per terminal. Fuse protection is present with the 1746-P2 power supply but it is limited to guarding against fire hazards due to short-circuit conditions. It comes with an open-type enclosure and can only be installed in a 1746 chassis. The entire power supply measures 5.5 x 2.9 x 5.7 inches and weighs 1.1 kg or 2.5 lbs. Its operating temperature is from 0-60 Deg. Celsius.

This power supply module has a jumper terminal that is used to set the input voltage to be applied to the device.

When undervoltage operation happens, the 1746-P2 power supply will continue to power up the SLC 500 controllers for a short period. When the power supply continues to receive input voltage that is lower than the recommended operating range for a period of time longer than the CPU hold-up time, the controllers will turn off. It will only resume operations automatically when the power supply receives the recommended operating input voltage.

For overcurrent conditions, the 1746-P2 Series A and B will undergo a power supply shutdown and CPU fault. The recovery procedure is to reload the user program. For the 1746-P2 Series C, it will have a 24V DC user shutdown but the CPU continues its operation and the recovery procedure is to correct the overcurrent condition.

The 1746-P2 is a Power supply module primarily designed for use with the SLC 500 automation system platform. This power supply is installed in the leftmost of the SLC chassis.

The installation location of this power supply is not included in the slot count. The slot counting starts with Slot Zero (0) which is reserved for the Programmable Logic Controller’s (PLC) processor or SLC 500 communication adapter.

When the front cover of the power supply is opened, the power supply’s front panel is exposed. This power supply has Five (5) terminals, jumper pins and internal fuse. These terminals are designed to accommodate AC line connection and DC power connection. One terminal function as ground terminal. The internal fuse has an equivalent part number replacement of 1746-F2. The jumper pins are used to set the correct input voltage setting, whether 100/120 VAC or 200 / 240 VAC.

Avoid electrical arc when working with the power supply. Disconnecting or connecting a wire with active supply may produce an electric arc which may damage the electronic backplane. It is important to perform operation when the input power is inactive. The power supply module itself is sensitive to voltage surges that may occur when starting high-inductive electrical loads. To avoid damage to the power supply module, isolation transformer may be installed to prevent voltage surges from entering the power supply.

This power supply features a hold-up time of 20 ms (full load) 3000 ms (no load). This feature allows the PLC processor to continue functioning even when power supply input voltage falls below the nominal supply level.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description


The Allen-Bradley 1746-P2 is a SLC 500 Power Supply. This Power Supply has a nominal Input Voltage of 120/220 Volts AC. It has an internal Current capacity of 5 A at 5V dc 0.96 A at 24V dc. It provides a 24VDC voltage output with built-in fuse protection.



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1746-P2
Series SLC 500
Module Type Power Supply
Input Power 70 Watts
Input Voltage 120 to 220 Volts AC
Typical line power requirement 180VA
Inrush Current 20 Amps
Backplane Current (5 Volts) 5 amps
Internal Current Capacity 5 A at 5V dc; 0.96 A at 24V dc
Output Voltage Range 18 to 30 Volts DC
CPU Hold up time 20 ms (full load) 3000 ms (no load)
Backplane Current (24 Volts) 0.46 Amps
Frequency 47 to 63 Hertz
Location 1746 Chassis
Dimensions 5.5 x 3.3 x 5.7 inches
Operating Temperature 0 to 60 Celsius
Fuse Protection 1746-F1 or equivalent





Information About 1746-P2

The Allen-Bradley 1746-P2 is an SLC 500 modular power supply. It comes with an input voltage of 85-132 or 170-265V AC at 47-63 Hz. Its internal current capacity at 5V is 5 A and it is 0.96 A at 24V. This power supply also comes with a maximum user-supplied overcurrent protection of 15 A and a maximum inrush current of 20 A. It has a 180 VA typical line power requirement and an input terminal and backplane isolation of 1800V AC RMS for 1 s. User-power current capacity at 24V DC is 200 mA and the user-power voltage range of the power supply, also at 24V DC, is 18-30V DC.

It has a maximum of two AWG wires per terminal. Fuse protection is present with the 1746-P2 power supply but it is limited to guarding against fire hazards due to short-circuit conditions. It comes with an open-type enclosure and can only be installed in a 1746 chassis. The entire power supply measures 5.5 x 2.9 x 5.7 inches and weighs 1.1 kg or 2.5 lbs. Its operating temperature is from 0-60 Deg. Celsius.

This power supply module has a jumper terminal that is used to set the input voltage to be applied to the device.

When undervoltage operation happens, the 1746-P2 power supply will continue to power up the SLC 500 controllers for a short period. When the power supply continues to receive input voltage that is lower than the recommended operating range for a period of time longer than the CPU hold-up time, the controllers will turn off. It will only resume operations automatically when the power supply receives the recommended operating input voltage.

For overcurrent conditions, the 1746-P2 Series A and B will undergo a power supply shutdown and CPU fault. The recovery procedure is to reload the user program. For the 1746-P2 Series C, it will have a 24V DC user shutdown but the CPU continues its operation and the recovery procedure is to correct the overcurrent condition.

The 1746-P2 is a Power supply module primarily designed for use with the SLC 500 automation system platform. This power supply is installed in the leftmost of the SLC chassis.

The installation location of this power supply is not included in the slot count. The slot counting starts with Slot Zero (0) which is reserved for the Programmable Logic Controller’s (PLC) processor or SLC 500 communication adapter.

When the front cover of the power supply is opened, the power supply’s front panel is exposed. This power supply has Five (5) terminals, jumper pins and internal fuse. These terminals are designed to accommodate AC line connection and DC power connection. One terminal function as ground terminal. The internal fuse has an equivalent part number replacement of 1746-F2. The jumper pins are used to set the correct input voltage setting, whether 100/120 VAC or 200 / 240 VAC.

Avoid electrical arc when working with the power supply. Disconnecting or connecting a wire with active supply may produce an electric arc which may damage the electronic backplane. It is important to perform operation when the input power is inactive. The power supply module itself is sensitive to voltage surges that may occur when starting high-inductive electrical loads. To avoid damage to the power supply module, isolation transformer may be installed to prevent voltage surges from entering the power supply.

This power supply features a hold-up time of 20 ms (full load) 3000 ms (no load). This feature allows the PLC processor to continue functioning even when power supply input voltage falls below the nominal supply level.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
