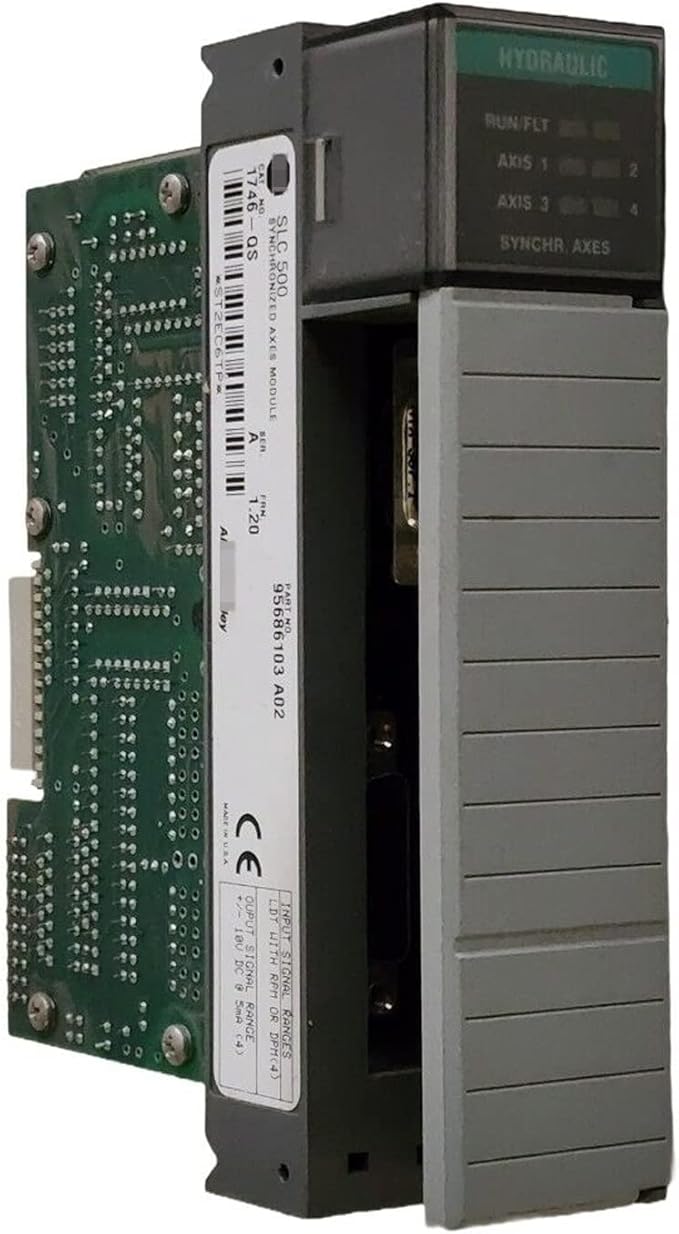

1746-QS | Allen Bradley SLC 500 Synchronized Axis Control Module
- Regular price
- $8,999.00
- Sale price
- $8,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1746-QS
Description
The Allen-Bradley 1746-QS is a Synchronized Axis Control Module designed for precise closed-loop servo position control. With four axes, it allows for accurate motion control, providing real-time updates on axis position and output adjustments, ensuring high-speed operation with precision.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1746-QS |
| Subcategory | PLC Expansion Modules |
| Module Type | Synchronized Axis Control Module |
| Series | SLC 500 |
| Inputs | 4 Linear Displacement Transducers |
| Outputs | 4 Analog |
| Input Frequency | 220 inches |
| Backplane Current (5 Volts) | 1000 milliseconds |
| Backplane Current (24 Volts) | 200 milliamps |
| Update Time | 1 |
| Operating Temperature | 0-60 Celsius |
Information About 1746-QS
The 1746-QS Synchronized Axis Control Module from Allen-Bradley is part of the SLC 500 series, offering four axes of synchronized control for advanced position tracking. It includes four Linear Displacement Transducer (LDT) inputs and four +/-10V analog outputs, enabling precise control of servo-driven systems. The module operates with a 2 ms update time, ensuring high accuracy even at high speeds. It is designed for integration with hydraulic configurators and includes a variety of features such as adjustable acceleration/deceleration, S-curve motion control, and the ability to interface with proportional and retrofit amplifiers in hydraulic systems.
Key Features:
- Four axes of synchronized control for accurate closed-loop servo position control.
- Four Linear Displacement Transducer (LDT) inputs and four +/-10V analog outputs.
- 12-bit output resolution and 2 ms update time for precise position tracking.
- Designed for hydraulic configurator integration with advanced motion control options.
The 1746-QS module ensures reliable and precise axis control, offering flexibility in motion profiles and performance adjustments. Its high-speed update capabilities and compatibility with hydraulic systems make it an ideal solution for demanding automation applications.
