Part #: 1747-CP3 Manufactured by: Allen-Bradley
Regular price
$167.00
Sale price
$167.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

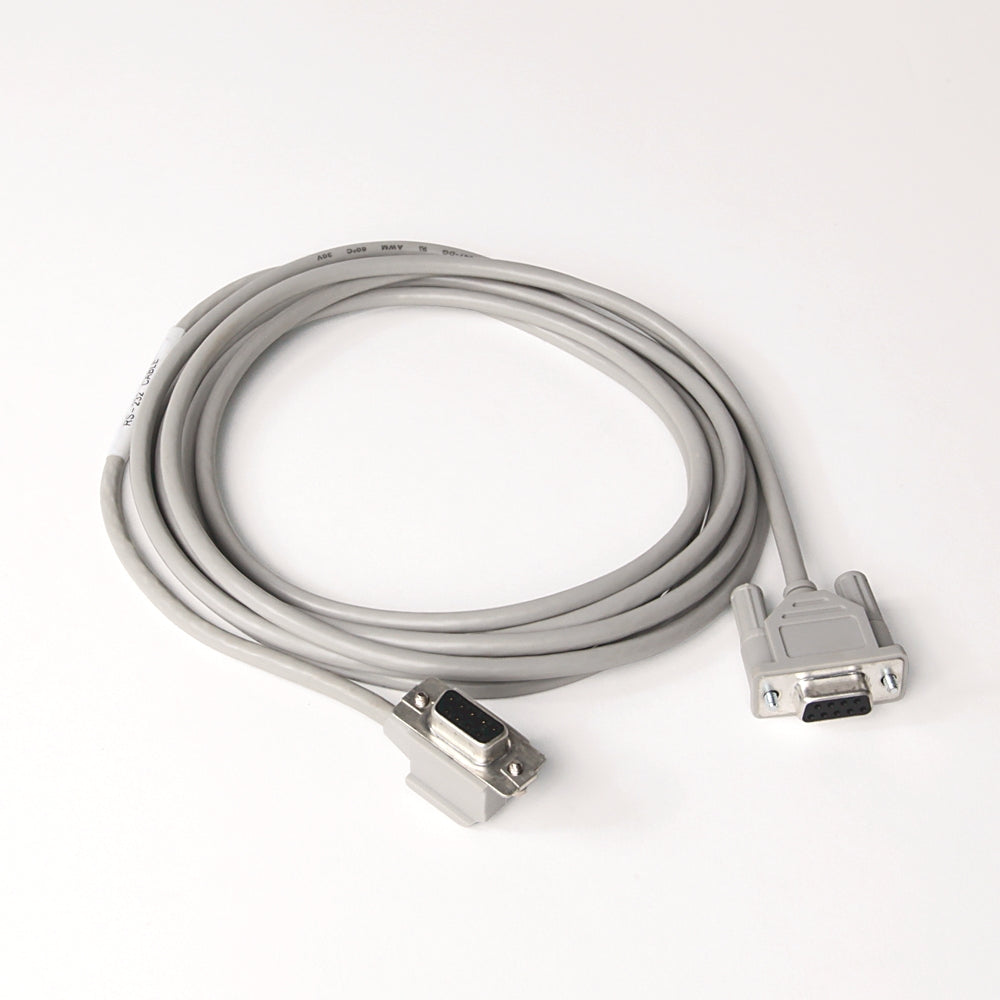

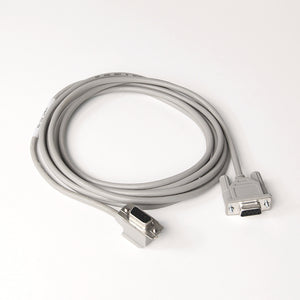

Allen-Bradley 1747-CP3 SLC 5/03, SLC 5/04, and SLC 5/05 RS-232 Programmer Cable, 10 Ft. (3M)
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1747-CP3
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1747-CP3

Description / Specifications

Description

The Allen-Bradley 1747-CP3 is a SLC 500 Programmer Cable that is 118 inches (3 meters) long.



Technical Specifications



Brand Allen-Bradley
Series SLC 500
Part Number 1747-CP3
Manufacturer Rockwell Automation
Cable Type Programmer Cable
Length 118 inches (3 meters)
Compatible Processors SLC 5/02, 5/03, 5/04, 5/05
Backplane Current (5 Volts) 800 milliamps
Operating Temperature 32-140 Fahrenheit (0-60 Celsius)
Cable Belden 9463
Connectors 6-Pin Phoenix Connector
Dimensions 5.72 x 1.37 x 5.15 inches
Operating Temperature 0-60 Celsius





Information About 1747-CP3

The Allen-Bradley 1747-CP3 is a programmer cable for the SLC 5/03 and the 5/04 Modular Programmable Controllers. This cable connects 5/03 & 5/04 RS232 Communications Port to the DTE Device (Computer). The Allen-Bradley 1747-CP3 has an internal jumper on each end. The 1747-CP3 also connects the PanelView Series Component Terminal to the SLC and MicroLogix controllers. It is also called the 9-pin D Shell-to-9-pin D Shell Null Modem Cable. The length of this cable is around 3 m (9.8 ft) and it has been tested by several organizations. This cable follows the Council Directive 89/336 / EEC Electromagnetic Compatibility (EMC). This cable also follows some Electromagnetic Compatibility (EMC) standards. The Allen-Bradley 1747-CP3 has passed the EN 50081-2 EMC - Generic Emission Standard, Part 2 - Industrial Environment standard, the EN 50082-2 EMC – Generic Immunity standard, and the Part 2 - Industrial Environment standard. To avoid damage to the ESD on a computer, always connect to a properly designed DH-485 device or interface before inserting the USB cable into the computer's USB port.

The Allen-Bradley 1747-CP3 is intended for use in an industrial environment. It follows the Council Directive 73/23/EEC Low Voltage, Part 2 – Equipment requirements and tests. This cable has met the safety requirements that have been set.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 1747-CP3
Question: What is the primary function of the 1747-CP3 module?
Date Update:30/05/2025
Answer:

The 1747-CP3 is a Communications Processor module designed for Allen-Bradley SLC 500 series PLCs. Its primary function is to provide communication capabilities between the SLC 500 controller and other devices or networks, supporting protocols such as DH-485, Remote I/O, and Ethernet (with appropriate adapters).

Question: Which communication protocols and networks does the 1747-CP3 support?
Date Update:30/05/2025
Answer:

The 1747-CP3 supports several communication protocols, including DH-485 and Remote I/O for serial networks. It also supports communication with programming terminals and HMIs. For Ethernet connectivity, it can be paired with additional communication adapters. This flexibility allows integration into various industrial network architectures.

Question: How is the 1747-CP3 configured and programmed?
Date Update:30/05/2025
Answer:

The module is configured using RSLogix 500 programming software, where users set communication parameters such as node address, baud rate, and network type. It requires proper setup to match the connected devices and networks for reliable data exchange. Firmware updates may be necessary to maintain compatibility.

Question: Can the 1747-CP3 be used for remote programming and monitoring?
Date Update:30/05/2025
Answer:

Yes, the 1747-CP3 enables remote programming and monitoring of the SLC 500 PLC. By connecting to a network, engineers can download or upload programs and monitor controller status without physical access, improving maintenance efficiency and reducing downtime.

Question: Is the 1747-CP3 still available, or has it been discontinued?
Date Update:30/05/2025
Answer:

The 1747-CP3 is considered legacy hardware and has been largely superseded by newer communication processors and Ethernet modules. It may be difficult to find new units, but used or refurbished modules are still available through industrial surplus suppliers. Rockwell Automation recommends upgrading to newer communication solutions for better performance and support.
