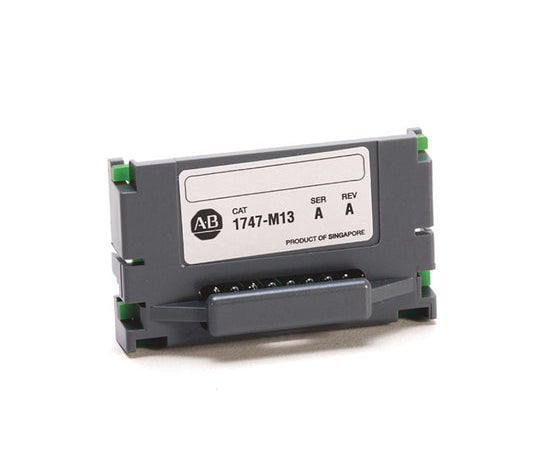

1747-M13 | Allen-Bradley SLC 500 Flash Memory Module, 64K for SLC 5/03, 5/04, 5/05
- Regular price
- $167.00
- Sale price
- $167.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1747-M13
Description
The Allen-Bradley 1747-M13 is a SLC 500 Memory Device. This Memory Device has Flash Memory Type and 64 kilobytes of Memory. This module is intended for Program/Data Table Storage and compatible for use with SLC 5/03, SLC 5/04 and SLC 5/05 processors.
Technical Specifications
| Brand | Allen-Bradley |
| Series | SLC 500 |
| Part Number | 1747-M13 |
| Manufacturer | Rockwell Automation |
| Module Type | Memory Module |
| Compatible Hardware Style | Fixed or Modular Hardware |
| Memory | 64 kilobytes |
| Compatible Processor | SLC 5/03; SLC 5/04; SLC 5/05 |
| User Memory | 64,000 Words |
| Program Scan Time | 0.9 milliseconds |
| Compatible Adapter | 1747-M15 Series B |
| I/O Scan Time | 0.225 milliseconds |
| Function | Program/Data Table Storage |
| I/O Chassis | 3 |
| Chassis Module Slots | 30 |
| Communication | Ethernet, RS-232 |
| Configuration Hardware | PROM Programmer |
| Backup Memory | Flash |
| Installation | Processor PC Board |
Information About 1747-M13
The Allen-Bradley 1747-M13 is a memory module which is combined for use with a memory adapter. It is used commonly as a backup memory for SLC 5/03, 5/04, and 5/05 processors. The memory should be properly oriented and mounted on the jumpers. For the 1747-M13 module, the jumper must connect the A18 to the center pin. To make the 1747-M13 functional with its memory adapter, you should use a 1747-M15 module. This is to avoid damaging the memory module, the PROM, or both components.
When installing the memory module and removing the processor, make sure the controller is switched OFF. This prevents any damage and undesired faults to the processor. The memory module has connectors that are keyed to avoid improper installation. Do not expose the module to the areas in which it may experience electrostatic charge. The electrostatic charge may damage, alter, or even destroy the memory of the 1747-M13.
The 1747-M13 is a memory module intended for use with the Allen-Bradley SLC 500 Programmable Logic Controller (PLC). This memory module has an integrated 64K of user back-up memory.
This memory module requires a memory adapter module with part number 1747-M15 series B. If a Series A 1747-M15 is used, the memory module may be damaged.
The primary function of the memory module is to provide a non-volatile memory area for the Processor. The SLC 500 processors are provide with a Random-Access Memory (RAM) which is backed-up by a Lithium battery for a minimum of Two (2) years. If the battery voltage is drained, the data inside the RAM memory will be deleted. This will result to loss or user program that runs the process. With the installation of a memory module, the processor is provided with memory that cannot be erased even when the back-up battery is drained. This prevents unwanted deletion of the user program and unplanned process shutdown. The user program inside the memory module is automatically loaded every time a power cycle is initiated.
Simply connect to the processor and initiate program burn to EEPROM module.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
