1747-SCNR | Allen-Bradley SLC 500 ControlNet Scanner
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1747-SCNR
Description

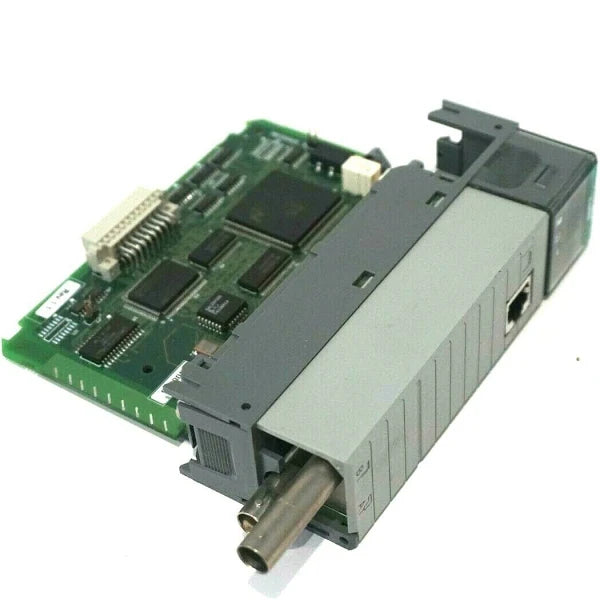

The Allen-Bradley 1747-SCNR is a SLC500 ControlNet Scanner module. This module provides capability to connect to ControlNet network via the Two (2) ControlNet port. This module supports non-redundant and redundant media. It comes with LED status indicator such as CHA and CHB LED and an OK LED.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 1747-SCNR |
| ControlNet media | 1786-RG6 |
| ControlNet Taps | 1786-TPR 1786-TPS 1786-TPYR 1786-TPYS |
| Chassis Location | Any slot expect left most slot |
| ControlNet topology | Non-redundant and redundant media |
| No. of ControlNet ports | Two (2) |
| Communication | ControlNet |
| Series | SLC 500 |
| Module Type | ControlNet Scanner Module |
| Scan I/O | Yes |
| Compatible Processors | SLC 5/02, 5/03, 5/04, 5/05 |
| Backplane Current (5 Volts) | 800 milliamps |
| Backplane Current (24 Volts) | 90 milliamps |
| Operating Temperature | 0-60 Celsius |
| Chassis Module Slots | 30 |
| Backup Memory | Flash |
Information About 1747-SCNR
The Allen-Bradley 1747-SCNR SLC ControlNet Scanner Module acts as an interface between the ControlNet device and the SLC processor. This module communicates with the ControlNet device over the network. This module can communicate with the processor in the form of M1/M0 File Transfers and Discrete I/O (DIO). M1/M0 file transfer is a method for moving large amounts of data between SLC 500 processors and this module. The Allen-Bradley 1747-SCNR also follow some Electromagnetic Compatibility (EMC) standards. This cable has passed the EN 50082-2 EMC /- Generic Immunity Standard, Part 2 - Industrial Environment. If you are connecting or disconnecting the ControlNet cable with the power applied, an electric arc can occur. This may cause an explosion in the installation of hazardous locations. Make sure the power is disconnected and that the area is not dangerous before continuing.
The Allen-Bradley 1747-SCNR has a maximum backplane current of 900 mA at 5V DC. The operating temperature of the 1747-SCNR is 0-60 Deg. Celsius (32-140 deg. Fahrenheit). The storage temperature is -40-85 deg. Celsius (-40-185 deg. Fahrenheit). The relative humidity is 5-95% without condensation. The operating shock of this module is 30 g and the nonoperating shock is 50 g.
The 1747-SCNR is provided with Two (2) ControlNet ports, labeled as Channel A and Channel B. To establish connection to this port, ControlNet taps are required such as 1786-TPR Right angle T-Tap, 1786-TPS Straight T-Tap, 1786-TPYR Right Angle Y-Tap, and 1786-TPYS straight Y-Tap. To connect to the main ControlNet trunkline. The ControlNet trunkline used RG-6 Duad Shield cable with catalog number 1786-RG6. Additionally, BNC connectors may be needed to secure connection to the tapping ports. If an extended length of ControlNet media is required, coaxial repeaters may be used with catalog number 1786-RPCD. To simplify ControlNet connection, ControlNet Coax Tool Kit may be used.
The 1747-SCNR ControlNet address may be set from 01-99 with default value of 00. This default address is not a valid address which means, module default address requires modification. ControlNet address may be set via the provided rotary switches located on top of the scanner.
When installing this module, ensure that power is removed from the SLC 500 chassis. Never attempt to install this under power as electric arc may be generated, damaging the SLC500 electronic bus and nearby SLC500 modules. Additionally, never touch the electronic circuitry of the 1747-SCNR.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
