Product Description P/N: 1747-SDN

Description / Specifications

Description

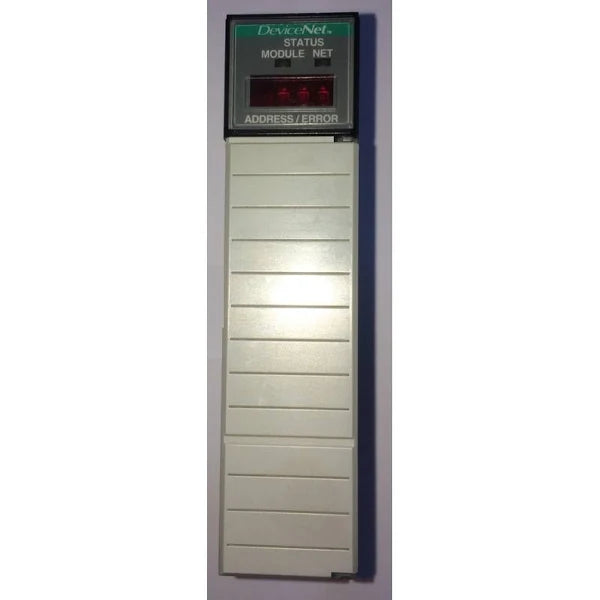

The Allen-Bradley 1747-SDN is a SLC 500 DeviceNet Scanner Module. This module is communicates with DeviceNet adapter modules connected to the DeviceNet network. It is compatible for use with SLC 5/02 controllers or later. It is a single-slot module that supports operation in slave mode and delivers message in poll, Strobe, Change-of-State, Cyclic I/O and Pass-through configuration. It has a backplane current consumption of 5V DC, 500 mA.



Technical Specifications



Brand Allen-Bradley
Series SLC 500
Part Number 1747-SDN
Manufacturer Rockwell Automation
Operating Shock 30 g peak acceleration, 11(+1)ms pulse width
Vibration Tested 5 g @ 10-500Hz per IEC 68-2-6
Storage Temperature -40 to 85 C (-40 to 185 F)
Mounting DIN Rail; Panel Mounting
Indicators Mod/Net Status - red/grn; I/O Status - red/grn
Linear Plug 1787-PLUG10R
Data Transfer speed 125Kbps
Communication Port One (1) DeviceNet
Pass through Supported
Compatible controllers SLC 5/02 or later
Module Width Single Slot
Operating Temperature 0 to 55 C (32 to 131 F)
Module Type DeviceNet Scanner Module
Scan I/O Yes
Compatible Processors SLC 5/02, 5/03, 5/04, 5/05
Backplane Current (5 Volts) 500 milliamps
Backplane Current (24 Volts) 90 milliamps
Chassis Module Slots 30
Communication Ethernet, RS-232
Backup Memory Flash





Information About 1747-SDN

The Allen-Bradley 1747-SDN is a DeviceNet communication scanner. This scanner module is used to communicate with DeviceNet capable devices over the DeviceNet network or through DeviceNet adapter modules. This module may operate in slave mode; send and receive message in Polled, Strobe, Change-of-State and Cyclic I/O configuration. It also supports pass through configuration wherein, the 1747-SDN acts as a bridge and connects a separate DeviceNet network. This pass through feature is designed to replace the 1770-KFD, 1784-PCD, 1784-PCID, or 1784-PCIDS DeviceNet connection on the network.

Specifically, when implementing Pass-Through configuration, compatible SLC 500 processor is SLC 5/03, SLC 5/04 and SLC 5/05.

The 1747-SDN supports configuration of up to 63 nodes at a baud rate of 125 Kbps. It draws backplane current amounting to 5V DC, 500 mA.

The 1747-SDN’s front panel is installed with Two (2) LED status indicators such as Module indicator to report the module’s operation and a Network status LED that indicates the DeviceNet communication link. It also has an LCD display that provides module address and error indication. The DeviceNet terminal is installed behind the access door and provided with a 10-pin linear plug inserted into the DeviceNet port.

It is an interface between the SLC processor and a DeviceNet device, and it can communicate with a processor through M1/M0 file transfers and via a discrete I/O. The 1747-SDN exchanges configuration data, the device I/O data, and status information with the SLC 500 processor. It draws a backplane current of 500mA at 5 Volts DC and of 90mA at 24 Volts DC and it provides a 30 Volts circuit isolation using the Basic Insulation Type tested at 500V AC for 60 seconds between DeviceNet-to-backplane. The 1747-SDN has an IEC tested operational temperature range between 0 and 60 degrees Celsius (32 and 140 degrees Fahrenheit) at 5 to 95% non-condensing humidity and it is stored at a -40 to 85 degrees Celsius (-40-185 degree Fahrenheit) temperature range. It also has an IEC-tested operational vibration withstand of 2G at 10-500Hz and a maximum shock rating of 30G. It has a CISPR 11, Group 1, Class A Emission rating and is designated the T5 North America temperature code. It comes in an open-style enclosure and it is c-UL-us and CE-certified.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
