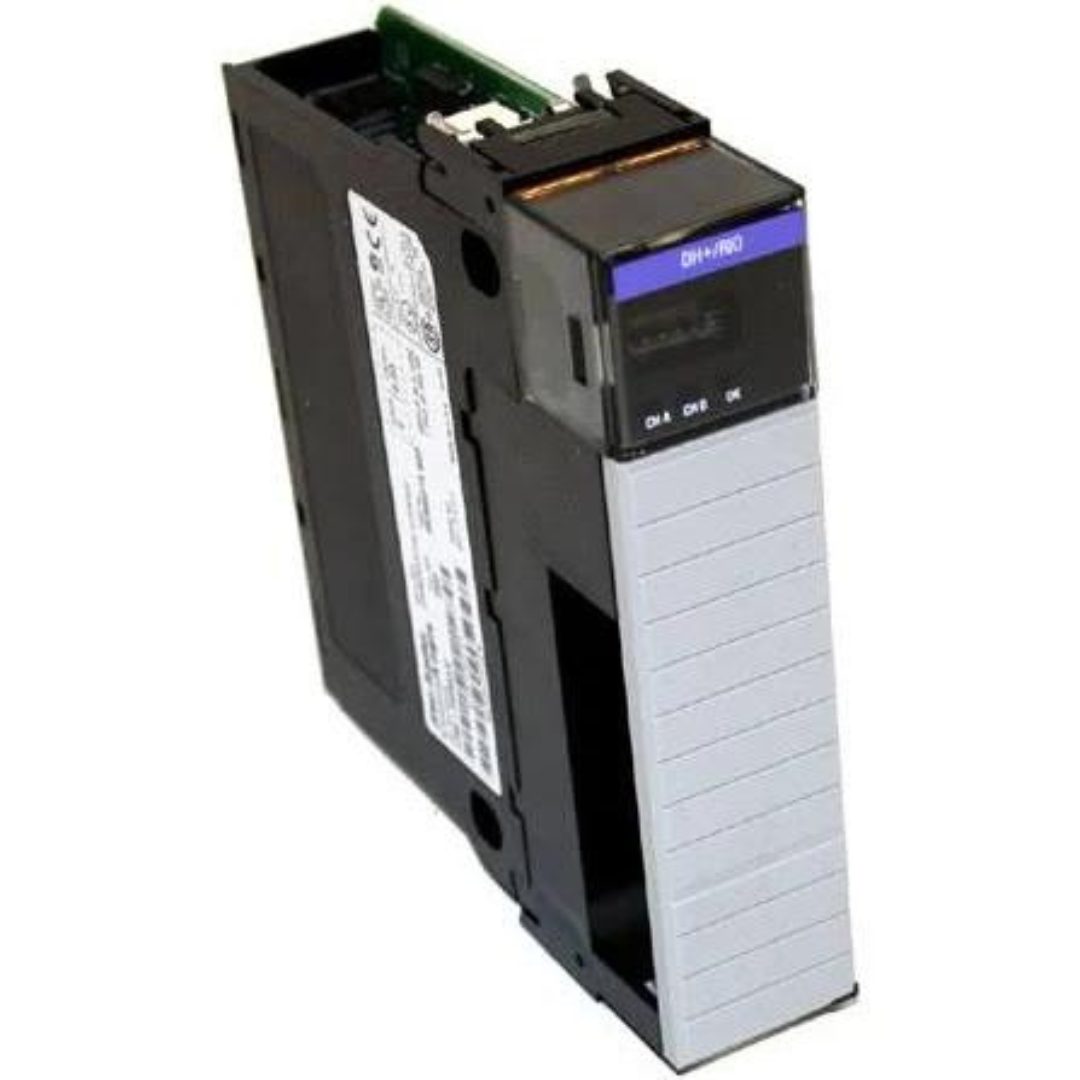

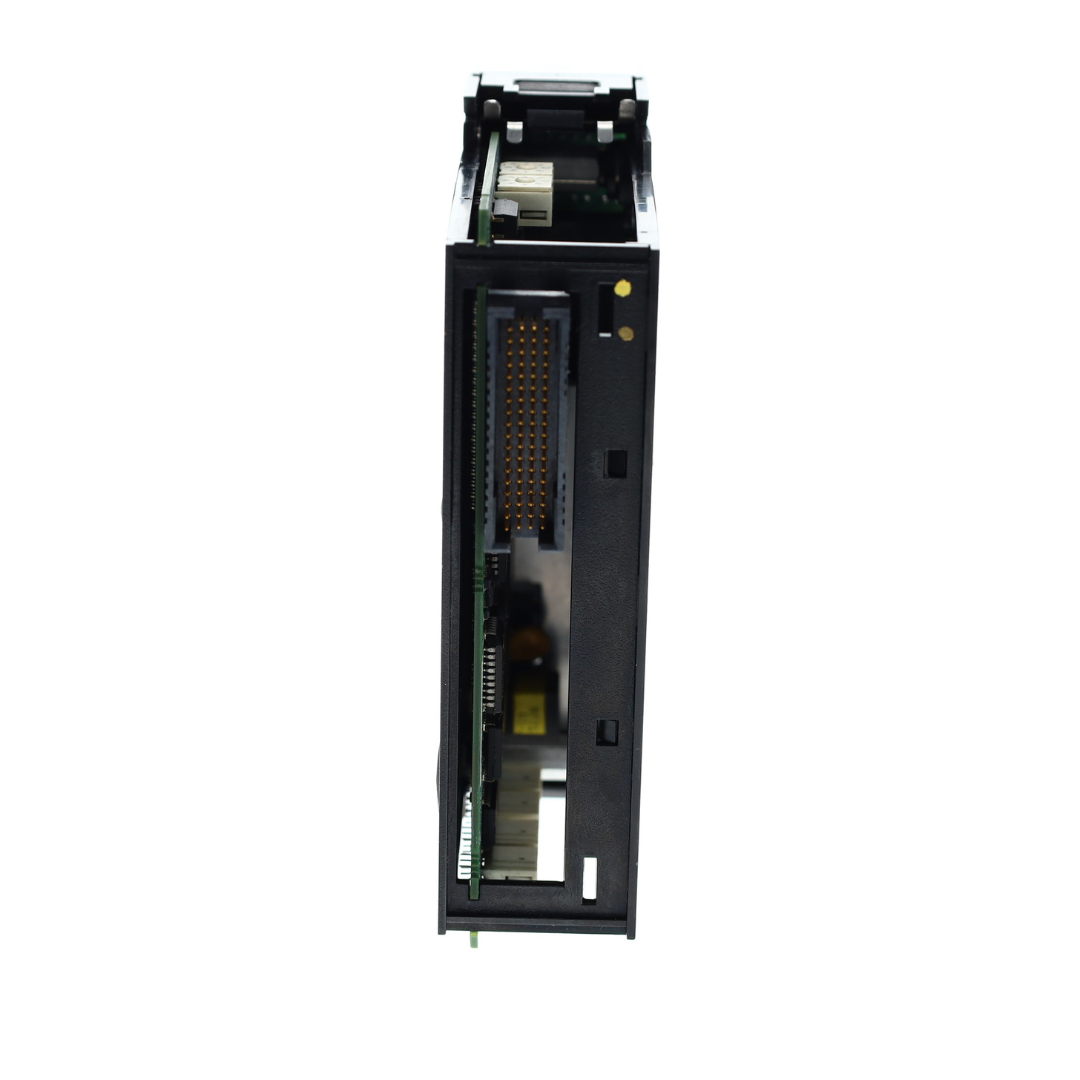

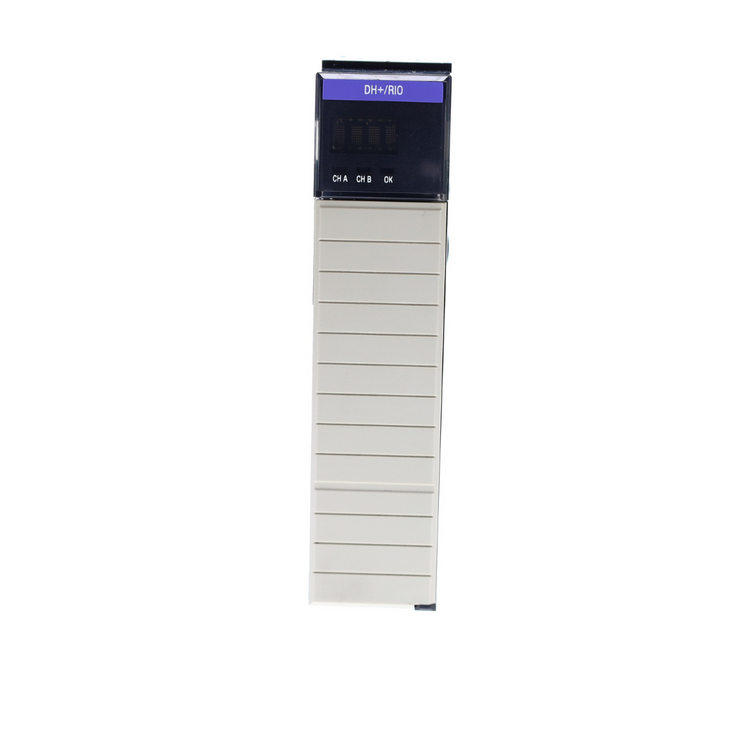

Part #: 1756-DHRIO Manufactured by: Allen-Bradley

1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module

Regular price
$492.00
Sale price
$492.00
Regular price
Never Used Surplus
23 in Stock
Shipping calculated at checkout.
Product Overview
Allen Bradley ControlLogix Data Highway and Remote I-O Communication Module with 1756 ControlLogix Chassis Location
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1756-DHRIO
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
    1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
    1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
    1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
    1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
    1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
1756-DHRIO | Allen-Bradley ControlLogix DH+/RIO Bridge/Scanner Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1756-DHRIO

Description / Specifications

Description

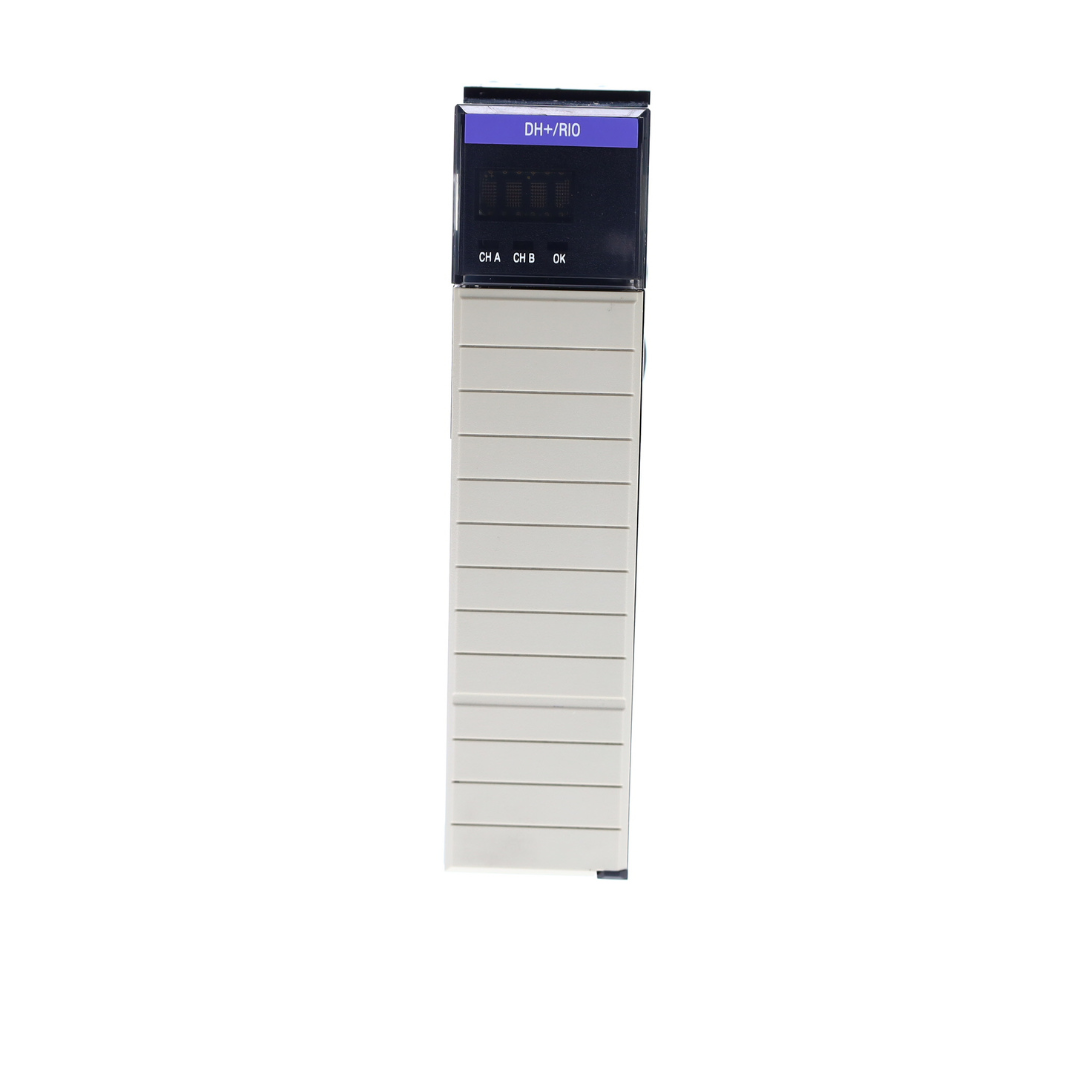

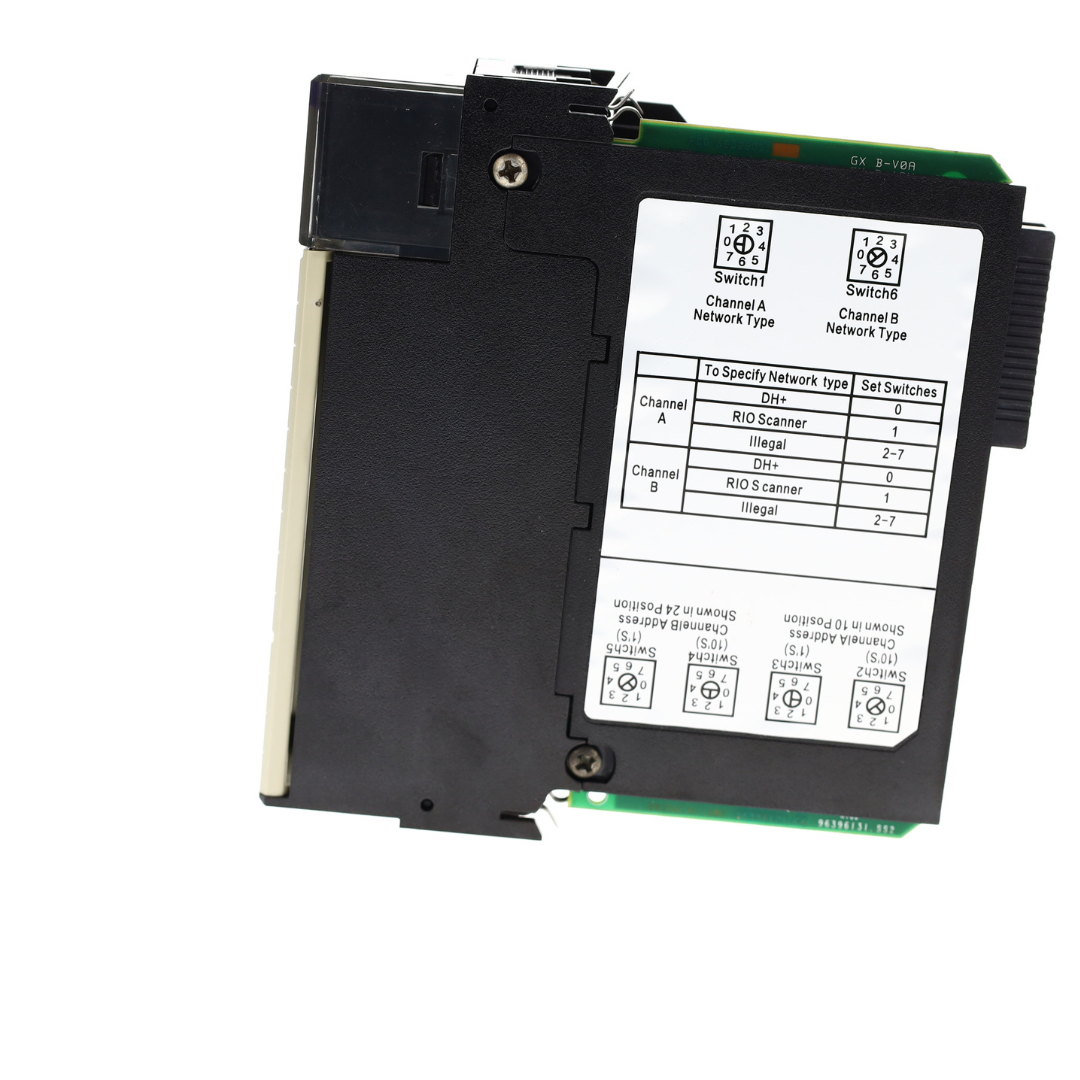

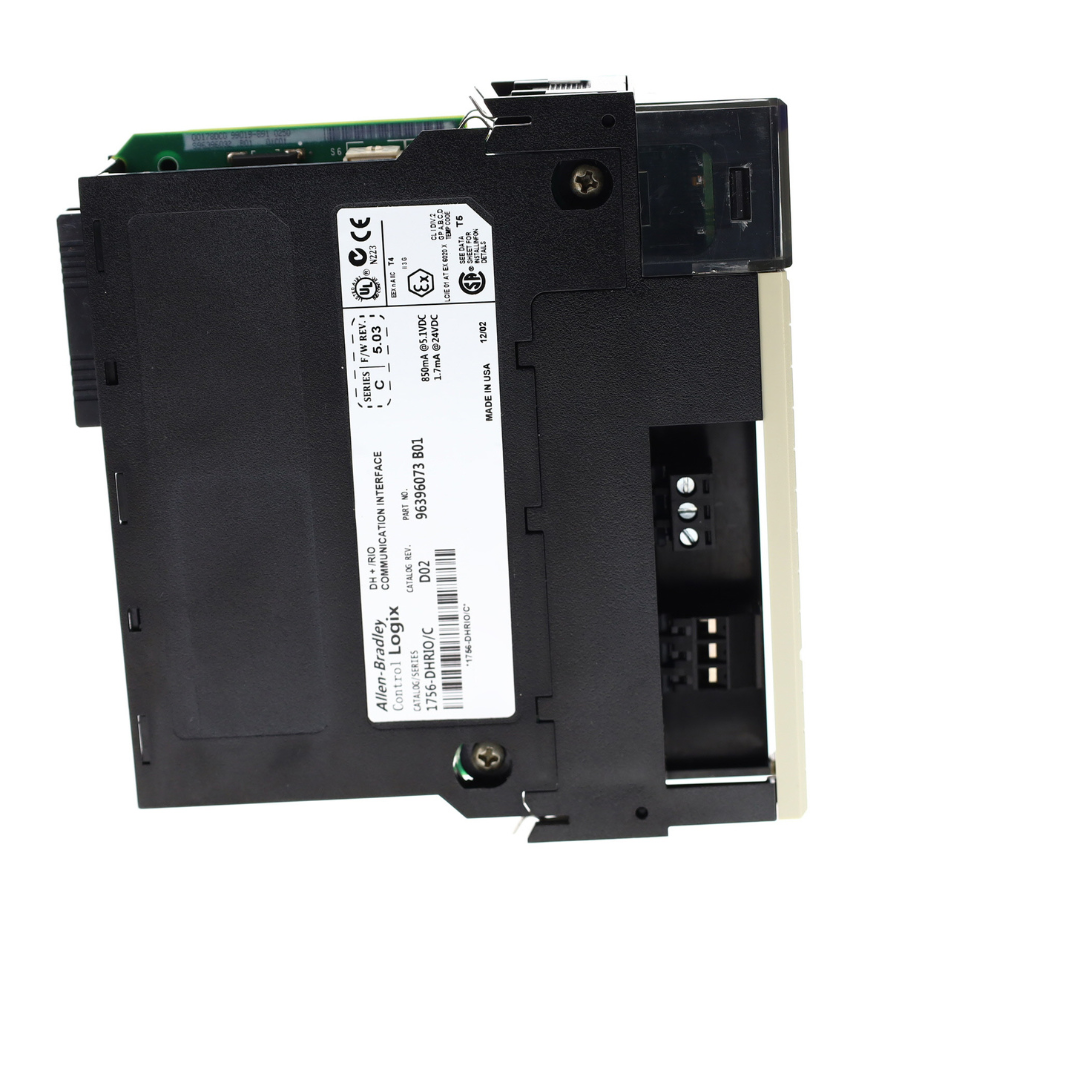

The 1756-DHRIO is an Allen-Bradley communication module that support Remote I/O and Data Highway Plus (DH) protocol. This module has embedded Two (2) ports for Channel A and B each with a with 3-Pin terminal for wiring Data Highway Plus (DH+) or Remote I/O (RIO) and a single 8-Pin mini-DIN port that is connected parallel to Channel A.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series ControlLogix
Part Number 1756-DHRIO
Manufacturer Rockwell Automation
Module Type Data Highway/Remote I-O Communication Module
Location 1756 ControlLogix Chassis
Communication Speed 57.6 Kbaud, 115.2 Kbaud, 230.4 Kbaud
Cable Length 3048 m (10000 ft), , 1524 m (5000 ft),762 m (2500 ft)
Recommended Cable Belden 89463 twinaxial, 0.52 mm² (20 AWG)rated at 200 °C (392 °F)
Backplane Current (5Volts) 1.7 milliamps
Backplane Current (24 Volts) 850 milliamps
Power Dissipation (Max) 4.5 Watts
Thermal Dissipation (Max) 15.4 BTU per hour
Enclosure Open
Operating Temperature 0-60 Celsius, 32-140 Fahrenheit
Slot width 1





Information About 1756-DHRIO

The Allen-Bradley 1756-DHRIO is a ControlLogix Data Highway Plus/Remote I/O communication interface module. This module has Two (2) channels, supporting communication rates of 57.6 kilobytes per second, 115.2 kilobytes per second, and 230.4 kilobytes per second, depending on the cable length. It can transfer a message through a maximum of three chassis and four communication networks. With this module, information exchange can be done among devices such as PLCs, SLCs, and ControlLogix controllers, even on different networks.

It supports the following types of communication: Remote I/O, Control and Information Protocol (CIP) Messaging, and Data Highway Plus (DH+) Messaging between devices. It can have up to 32 Logix connections and the remote I/O link can connect to a remote I/O device, as well as other intelligent devices. When connected to a remote I/O network, it can act as an adapter or scanner and transfer analog, digital, block, and specialty data even with the absence of message instructions. Prior to installing the 1756-DHRIO module, you need to program the network type switches for each channel and install and connect a ControlLogix power supply and chassis. You can install as many modules as you can in the same chassis but this will depend on your available power supply. Note that modules can also be installed or removed even when the chassis power is applied but you need to observe safety precautions, particularly that the area is nonhazardous and power is removed, to prevent an electrical arc that can cause excessive wear to the contacts of both the module and the connector. Make sure to discharge potential static because the module is sensitive to electrostatic discharge.

RIO and DH+ protocol uses the same cable type. Recommended cables are Belden 89463 twinaxial, 0.52 mm² (20 AWG) rated at 200 °C (392 °F). Applicable spare connector is Phoenix terminal with part number MVSTBR2.5/3-ST BK AU.

DH+ and Remote I/O network requires the use of a terminating resistor as it follows daisy-chain topology. This resistor is installed at the first and last node of the network. Resistor values depend on the network speed. 82 Ohms is used for network speed of 230.4Kbps. 150 Ohms is used for network speed of 57.6 Kbps or 115.2 Kbps. Other considerations are also considered including the type of devices connected to the network. The terminating resistor is installed across line 1 and line 2 of the cable. The 3rd cable is the shield cable.

To terminate the cable following RIO protocol, Line 1 is connected to the bottom pin or terminal 1, shield cable is terminated to the middle pin and Line 2 is terminated to the last pin. To wire the cable appropriately as DH+ protocol, simply reverse the connection of Line 1 and Line 2.

This module supports communication with Flex IO, POINT IO systems and messaging functions with PLC 5, SLC, CompactLogix and ControlLogix controllers as well.




Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The 1756-DHRIO is an Allen-Bradley communication module that support Remote I/O and Data Highway Plus (DH) protocol. This module has embedded Two (2) ports for Channel A and B each with a with 3-Pin terminal for wiring Data Highway Plus (DH+) or Remote I/O (RIO) and a single 8-Pin mini-DIN port that is connected parallel to Channel A.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series ControlLogix
Part Number 1756-DHRIO
Manufacturer Rockwell Automation
Module Type Data Highway/Remote I-O Communication Module
Location 1756 ControlLogix Chassis
Communication Speed 57.6 Kbaud, 115.2 Kbaud, 230.4 Kbaud
Cable Length 3048 m (10000 ft), , 1524 m (5000 ft),762 m (2500 ft)
Recommended Cable Belden 89463 twinaxial, 0.52 mm² (20 AWG)rated at 200 °C (392 °F)
Backplane Current (5Volts) 1.7 milliamps
Backplane Current (24 Volts) 850 milliamps
Power Dissipation (Max) 4.5 Watts
Thermal Dissipation (Max) 15.4 BTU per hour
Enclosure Open
Operating Temperature 0-60 Celsius, 32-140 Fahrenheit
Slot width 1





Information About 1756-DHRIO

The Allen-Bradley 1756-DHRIO is a ControlLogix Data Highway Plus/Remote I/O communication interface module. This module has Two (2) channels, supporting communication rates of 57.6 kilobytes per second, 115.2 kilobytes per second, and 230.4 kilobytes per second, depending on the cable length. It can transfer a message through a maximum of three chassis and four communication networks. With this module, information exchange can be done among devices such as PLCs, SLCs, and ControlLogix controllers, even on different networks.

It supports the following types of communication: Remote I/O, Control and Information Protocol (CIP) Messaging, and Data Highway Plus (DH+) Messaging between devices. It can have up to 32 Logix connections and the remote I/O link can connect to a remote I/O device, as well as other intelligent devices. When connected to a remote I/O network, it can act as an adapter or scanner and transfer analog, digital, block, and specialty data even with the absence of message instructions. Prior to installing the 1756-DHRIO module, you need to program the network type switches for each channel and install and connect a ControlLogix power supply and chassis. You can install as many modules as you can in the same chassis but this will depend on your available power supply. Note that modules can also be installed or removed even when the chassis power is applied but you need to observe safety precautions, particularly that the area is nonhazardous and power is removed, to prevent an electrical arc that can cause excessive wear to the contacts of both the module and the connector. Make sure to discharge potential static because the module is sensitive to electrostatic discharge.

RIO and DH+ protocol uses the same cable type. Recommended cables are Belden 89463 twinaxial, 0.52 mm² (20 AWG) rated at 200 °C (392 °F). Applicable spare connector is Phoenix terminal with part number MVSTBR2.5/3-ST BK AU.

DH+ and Remote I/O network requires the use of a terminating resistor as it follows daisy-chain topology. This resistor is installed at the first and last node of the network. Resistor values depend on the network speed. 82 Ohms is used for network speed of 230.4Kbps. 150 Ohms is used for network speed of 57.6 Kbps or 115.2 Kbps. Other considerations are also considered including the type of devices connected to the network. The terminating resistor is installed across line 1 and line 2 of the cable. The 3rd cable is the shield cable.

To terminate the cable following RIO protocol, Line 1 is connected to the bottom pin or terminal 1, shield cable is terminated to the middle pin and Line 2 is terminated to the last pin. To wire the cable appropriately as DH+ protocol, simply reverse the connection of Line 1 and Line 2.

This module supports communication with Flex IO, POINT IO systems and messaging functions with PLC 5, SLC, CompactLogix and ControlLogix controllers as well.




Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
