Part #: 1756-EN3TR Manufactured by: Allen-Bradley
Regular price
$699.00
Sale price
$699.00
Regular price
6 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1756-EN3TR is a dual-port EtherNet/IP bridge module for ControlLogix systems. With embedded switch techn...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1756-EN3TR
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1756-EN3TR

Description / Specifications

Description

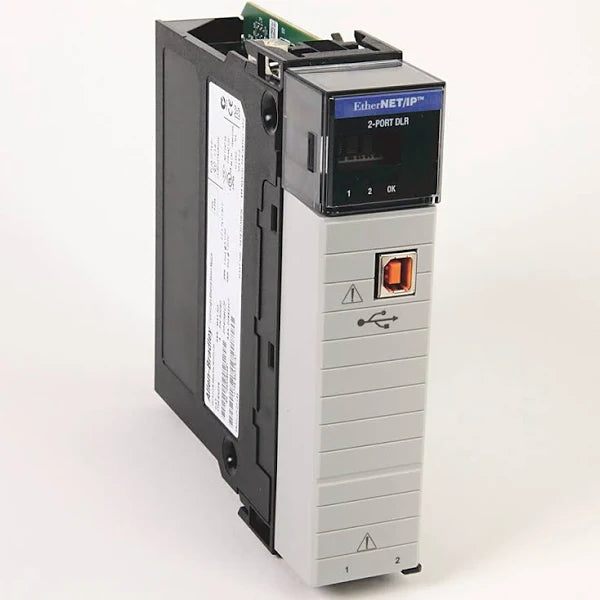

The Allen-Bradley 1756-EN3TR is a ControlLogix communication module that functions as an EtherNet/IP bridge. It features two RJ45 Ethernet ports supporting 10/100 Mbps transfer rates and one USB 2.0 port at 12 Mbps for configuration and diagnostics.





Technical Specifications

Brand Allen-Bradley
Series ControlLogix
Part Number 1756-EN3TR
Manufacturer Rockwell Automation
Integrated motion axes Up to 128 Axes
Thermal Dissipation 17.4 BTU/hr
Integrated Motion Supported
Power supply, redundant 1756-PA75R, 1756-PB75R, 1756-PSCA2
Power supply, standard 1756-PA72, 1756-PA75, 1756-PB72, 1756-PB75, 1756- PC75, 1756-PH75
Chassis 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
Slot width 1
Backplane current 1.0 A at 5.1 VDC; 3 mA at 24VDC
Mounting Any 1756 Chassis
USB Data Transfer rate 12 Mbps
Supported topologies Linear / Device Level Ring (DLR)
Ethernet Data Transfer speed 10 /100 Mbps
Communication Port Two (2) Ethernet; One (1) USB
Power Dissipation 5.1 W
Module Type Ethernet Communication Module
Location Chassis (any slot)
Backplane Current (5Volts) 1 amp
Backplane Current (24 Volts) 3 milliamps
Power Consumption 5.1 Watts
Insulation Voltage 30 Volts Continuous
Enclosure Open
Operating Temperature 32-140 Fahrenheit, 0-60 Celsius
Current Rating 1.2 Amps





Information About 1756-EN3TR

The 1756-EN3TR belongs to the Allen-Bradley ControlLogix communication family and provides high-performance EtherNet/IP networking for local or remote chassis installations. With embedded switch technology, the dual Ethernet ports support linear, star, and Device Level Ring (DLR) topologies, ensuring network flexibility and resilience. This module supports up to 128 CIP motion axes, 128 TCP/IP connections, and 256 Logix connections, making it suitable for large-scale control systems. It draws 1 A at 5.1V DC and 3 mA at 24V DC from the backplane, with a power dissipation of approximately 5.1 W. Designed for reliability, it operates within a temperature range of 32–140 °F (0–60 °C) and provides continuous 30V insulation voltage protection. Compact and versatile, the 1756-EN3TR allows seamless integration of EtherNet/IP networks with advanced motion, I/O, and information exchange.

Key Features:

  • Ethernet Connectivity: Two RJ45 ports supporting 10/100 Mbps with embedded switch technology for flexible topologies.
  • USB Interface: One USB 2.0 port (12 Mbps) for configuration, programming, and diagnostics.
  • Supported Topologies: Linear, star, and Device Level Ring (DLR) for network redundancy and uptime.
  • Motion Support: Handles up to 128 CIP motion axes and up to 255 total axes for advanced motion applications.
  • Connection Capacity: Supports 128 TCP/IP and 256 Logix connections for large-scale system integration.
  • Power Requirements: Consumes 1 A @ 5.1V DC and 3 mA @ 24V DC with 5.1 W maximum power dissipation.
  • Environmental Ratings: Operates from 0–60 °C (32–140 °F) with 30V continuous insulation voltage.
  • Application Use: Suitable for real-time I/O messaging, controller communication, and enterprise-level integration.

The 1756-EN3TR delivers robust EtherNet/IP connectivity, high connection capacity, and reliable motion support for modern ControlLogix automation systems.





Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 1756-EN3TR
Question: What is the 1756-EN3TR?
Date Update:03/06/2025
Answer:

The 1756-EN3TR is a ControlLogix EtherNet/IP communication module from Rockwell Automation. It enables the ControlLogix controller to communicate with other devices over an EtherNet/IP network. It supports real-time I/O messaging and message exchange.

Question: What are the main features of the 1756-EN3TR?
Date Update:03/06/2025
Answer:
  • Dual Ethernet ports with embedded switch technology for device-level ring (DLR) support.
  • Supports Linear, DLR, and star topologies.
  • Data rates: 10 Mbps, 100 Mbps, and 1 Gbps.
  • Supports simultaneous connections to multiple devices.
  • Diagnostic indicators for status and activity.
  • Firmware upgradable for security and performance enhancements.
Question: How do I configure the 1756-EN3TR?
Date Update:03/06/2025
Answer:

You can configure the module using Studio 5000 Logix Designer or RSLogix 5000 software.

Steps:

  • Add the module to the I/O configuration tree.
  • Assign an IP address (static or via DHCP/BOOTP).
  • Set the desired parameters (e.g., module properties, requested packet intervals).
  • Download the configuration to the controller.
Question: What is the maximum number of connections supported?
Date Update:03/06/2025
Answer:

The 1756-EN3TR can handle up to 128 CIP connections for real-time I/O and messaging.

Question: How do I update the module’s firmware?
Date Update:03/06/2025
Answer:
  • Use the ControlFLASH or ControlFLASH Plus utility.
  • Select the module, and choose the new firmware revision.
  • Follow the on-screen instructions to complete the update.

Important: Updating firmware may cause brief downtime.
