Part #: 1756-IA16 Manufactured by: Allen-Bradley
Regular price
$299.00
Sale price
$299.00
Regular price
3 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1756-IA16 is a ControlLogix Digital AC Input Module featuring 16 input channels. It provides a dependabl...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1756-IA16
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1756-IA16

Description / Specifications

Description

The Allen-Bradley 1756-IA16 is a ControlLogix module that features Sixteen (16) Discrete input channels. It has Two (2) groups of Eight (8) input channels each group and operates at nominal signal voltage of 120VAC with operating voltage range of 74-132 VAC with frequency of 47-63 Hz. It is compatible for use with any ControlLogix chassis.



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Removable Terminal Block (RTB) 1756-TBNH 1756-TBSH
Total Backplane power 0.58 W
Backplane Current, 24VDC 2 mA
Backplane Current, 5.1VDC 100 mA
Signal Delay, OFF Transition Hardware delay: 10 ms max + filter time User-selectable filter time: 1 ms or 2 ms
Signal Delay, ON transition Hardware delay: 8 ms max + filter time User-selectable filter time: 9 ms or 18 ms
Cyclic update time 200 µs…750 ms
ON-state Current, max. 13 mA @ 132V AC, 47…63 Hz
ON-state Current, min. 5 mA @ 79V AC, 47…63 Hz
Input Voltage range 74-132VAC
No. of Inputs Sixteen (16)
Part Number/Catalog No. 1756-IA16
Series ControlLogix
Module Type Digital AC Input Module
Input Delay Time Programmable 9 or 18 milliseconds
Minimum Operating Current 5 milliamperes at 74 Volts AC
Maximum Operating Current 13 milliamperes at 132 Volts AC
Maximum Input Current, Off-State 2.5 milliamperes
Power Dissipation (Max) 5.8 Watts at 60 degrees Celsius
Backplane Current at 5 Volts 105 milliamperes
Backplane Current at 24 Volts 2 milliamperes





Information About 1756-IA16

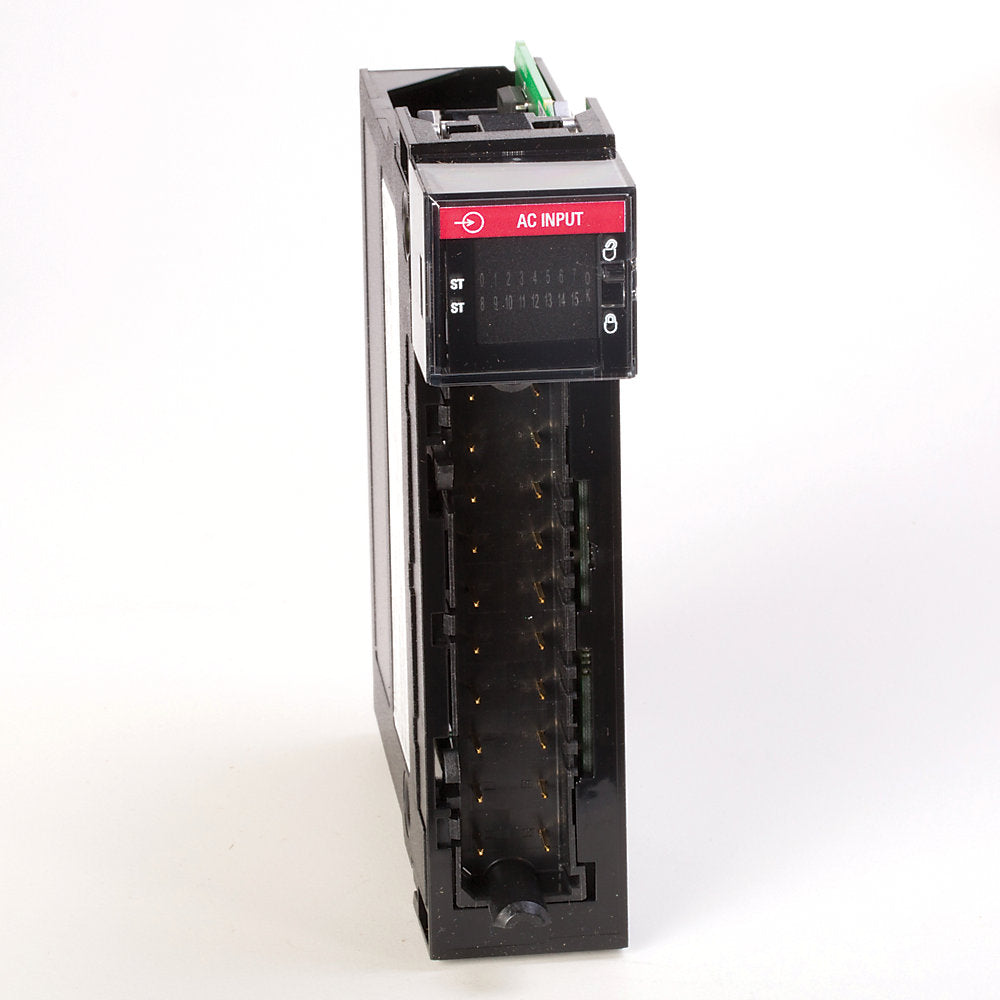

The Allen-Bradley 1756-IA16 is a Sixteen (16) channel AC input module from the ControlLogix Programmable Automation Controller (PAC) platform. This module is used to interface discrete signaling devices such as switches, auxiliary contacts and similarly operating devices that are rated for 120VAC, nominal and voltage range of 74-132VAC with frequency of 47-63 Hz.

The 1756-IA32 has Two (2) input groups with each input group having Eight (8) channels each. It is provided with individual channel status LED that activates to provide feedback regarding the state of each of the channel. Each of the input channel has a hardware delay time of 10 ms max + filter time for OFF to ON signal transition and 8 ms max + filter time for ON to OFF signal transitions. User selectable filter time for OFF to ON transition are 1 ms or 2 ms and 9 ms or 18 ms for ON to OFF transition. This module has a cyclic update time 200 µs-750 ms.

This module draws Current from the backplane amounting to 100 mA @ 5.1 VDC and 2 mA @ 24VDC. It consumes a total backplane power of 0.58 Watts and maximum power dissipation of 5.8 W @ 60 °C (140 °F) with Thermal dissipation of 18.41 BTU/hr.

The 1756-IA32 has a maximum OFF-state voltage of 20VAC and maximum OFF-state current of 2.5 mA. Similarly, the minimum ON-state current rating of 5 mA @ 74V AC and maximum ON-state current of 13 mA @ 132V AC. It is able to withstand a maximum inrush current of 250 mA peak.

It has Sixteen (16) input channels, grouped into Two (2) groups of Eight (8) points per group. The 1756-IA16 module's operating voltage range is from 74 to 132 Volts AC at a frequency of 47 to 63 Hertz, while both the voltage category and input frequency are 120 Volts AC and 50/60 Hertz, respectively. This module has an input delay time of 10 milliseconds for OFF to ON transition the configured filter time (user-selectable at 1 or 2 milliseconds). For ON to OFF transition, hardware delay is 8 milliseconds maximum plus filter time ( user-selectable at 9 or 18 milliseconds). At 5.1 Volts DC, the current draw is 100 milliamps and there are 2 milliamps of current draw at 24 Volts DC. The total backplane power is 0.58 Watts and it dissipates 5.8 Watts of power at 60 degrees Celsius for and 18.41 BTU/hour of thermal energy. The maximum off-state voltage is 20 Volts and the current is 2.5 milliamps. The on-state current of the 1756-IA16, on the other hand, ranges from a minimum of 5 milliamps at 74 Volts AC to a maximum of 13 milliamps at 132 Volts AC. The maximum recorded inrush current is 250 milliamps peak, decaying to less than 37% in 22 milliseconds without activation.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.



IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1756-IA16 is a ControlLogix module that features Sixteen (16) Discrete input channels. It has Two (2) groups of Eight (8) input channels each group and operates at nominal signal voltage of 120VAC with operating voltage range of 74-132 VAC with frequency of 47-63 Hz. It is compatible for use with any ControlLogix chassis.



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Removable Terminal Block (RTB) 1756-TBNH 1756-TBSH
Total Backplane power 0.58 W
Backplane Current, 24VDC 2 mA
Backplane Current, 5.1VDC 100 mA
Signal Delay, OFF Transition Hardware delay: 10 ms max + filter time User-selectable filter time: 1 ms or 2 ms
Signal Delay, ON transition Hardware delay: 8 ms max + filter time User-selectable filter time: 9 ms or 18 ms
Cyclic update time 200 µs…750 ms
ON-state Current, max. 13 mA @ 132V AC, 47…63 Hz
ON-state Current, min. 5 mA @ 79V AC, 47…63 Hz
Input Voltage range 74-132VAC
No. of Inputs Sixteen (16)
Part Number/Catalog No. 1756-IA16
Series ControlLogix
Module Type Digital AC Input Module
Input Delay Time Programmable 9 or 18 milliseconds
Minimum Operating Current 5 milliamperes at 74 Volts AC
Maximum Operating Current 13 milliamperes at 132 Volts AC
Maximum Input Current, Off-State 2.5 milliamperes
Power Dissipation (Max) 5.8 Watts at 60 degrees Celsius
Backplane Current at 5 Volts 105 milliamperes
Backplane Current at 24 Volts 2 milliamperes





Information About 1756-IA16

The Allen-Bradley 1756-IA16 is a Sixteen (16) channel AC input module from the ControlLogix Programmable Automation Controller (PAC) platform. This module is used to interface discrete signaling devices such as switches, auxiliary contacts and similarly operating devices that are rated for 120VAC, nominal and voltage range of 74-132VAC with frequency of 47-63 Hz.

The 1756-IA32 has Two (2) input groups with each input group having Eight (8) channels each. It is provided with individual channel status LED that activates to provide feedback regarding the state of each of the channel. Each of the input channel has a hardware delay time of 10 ms max + filter time for OFF to ON signal transition and 8 ms max + filter time for ON to OFF signal transitions. User selectable filter time for OFF to ON transition are 1 ms or 2 ms and 9 ms or 18 ms for ON to OFF transition. This module has a cyclic update time 200 µs-750 ms.

This module draws Current from the backplane amounting to 100 mA @ 5.1 VDC and 2 mA @ 24VDC. It consumes a total backplane power of 0.58 Watts and maximum power dissipation of 5.8 W @ 60 °C (140 °F) with Thermal dissipation of 18.41 BTU/hr.

The 1756-IA32 has a maximum OFF-state voltage of 20VAC and maximum OFF-state current of 2.5 mA. Similarly, the minimum ON-state current rating of 5 mA @ 74V AC and maximum ON-state current of 13 mA @ 132V AC. It is able to withstand a maximum inrush current of 250 mA peak.

It has Sixteen (16) input channels, grouped into Two (2) groups of Eight (8) points per group. The 1756-IA16 module's operating voltage range is from 74 to 132 Volts AC at a frequency of 47 to 63 Hertz, while both the voltage category and input frequency are 120 Volts AC and 50/60 Hertz, respectively. This module has an input delay time of 10 milliseconds for OFF to ON transition the configured filter time (user-selectable at 1 or 2 milliseconds). For ON to OFF transition, hardware delay is 8 milliseconds maximum plus filter time ( user-selectable at 9 or 18 milliseconds). At 5.1 Volts DC, the current draw is 100 milliamps and there are 2 milliamps of current draw at 24 Volts DC. The total backplane power is 0.58 Watts and it dissipates 5.8 Watts of power at 60 degrees Celsius for and 18.41 BTU/hour of thermal energy. The maximum off-state voltage is 20 Volts and the current is 2.5 milliamps. The on-state current of the 1756-IA16, on the other hand, ranges from a minimum of 5 milliamps at 74 Volts AC to a maximum of 13 milliamps at 132 Volts AC. The maximum recorded inrush current is 250 milliamps peak, decaying to less than 37% in 22 milliseconds without activation.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
