Part #: 1756-IF16H Manufactured by: Allen-Bradley

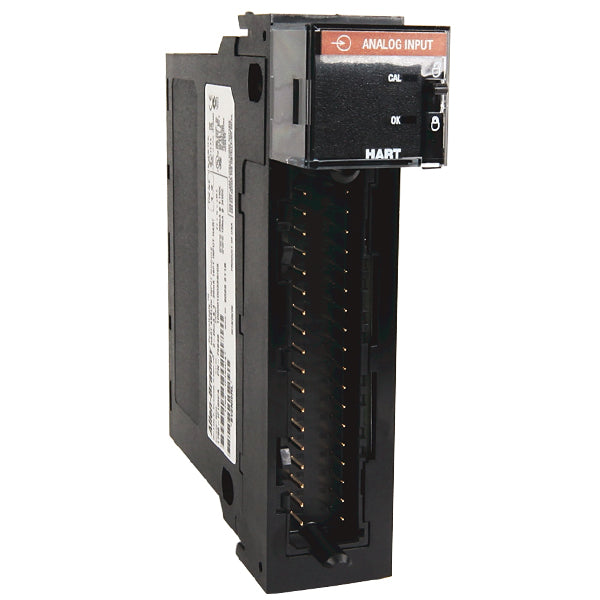

1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART

Regular price
$1,499.00
Sale price
$1,499.00
Regular price
Never Used Surplus
2 in Stock
Shipping calculated at checkout.
Product Overview
Allen Bradley ControlLogix Hart Analog Input Module with 16 Differential Inputs
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1756-IF16H
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

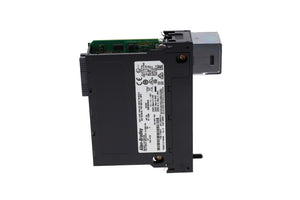

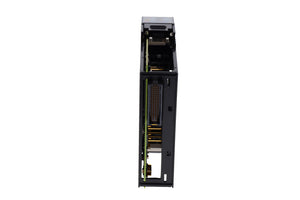

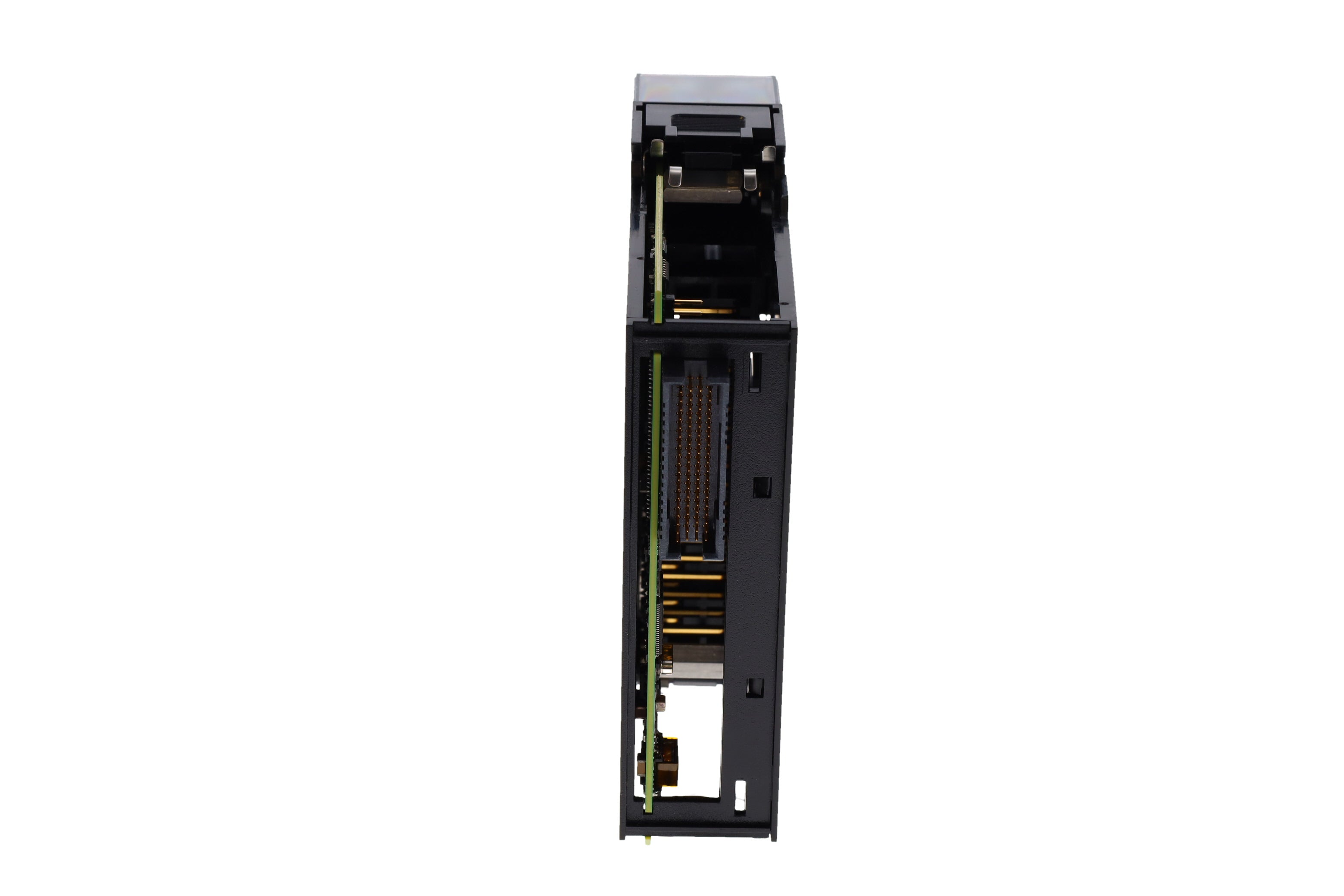

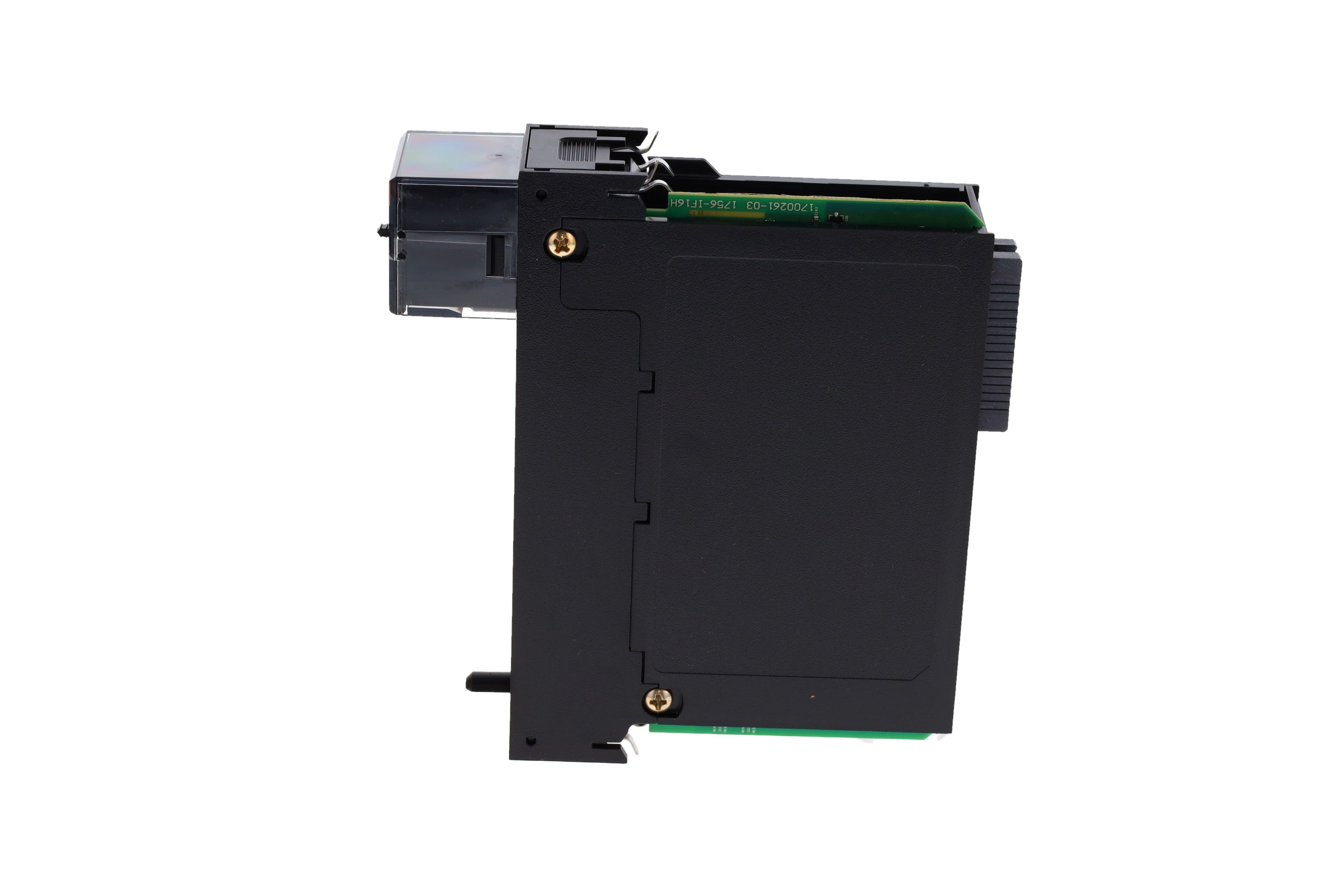

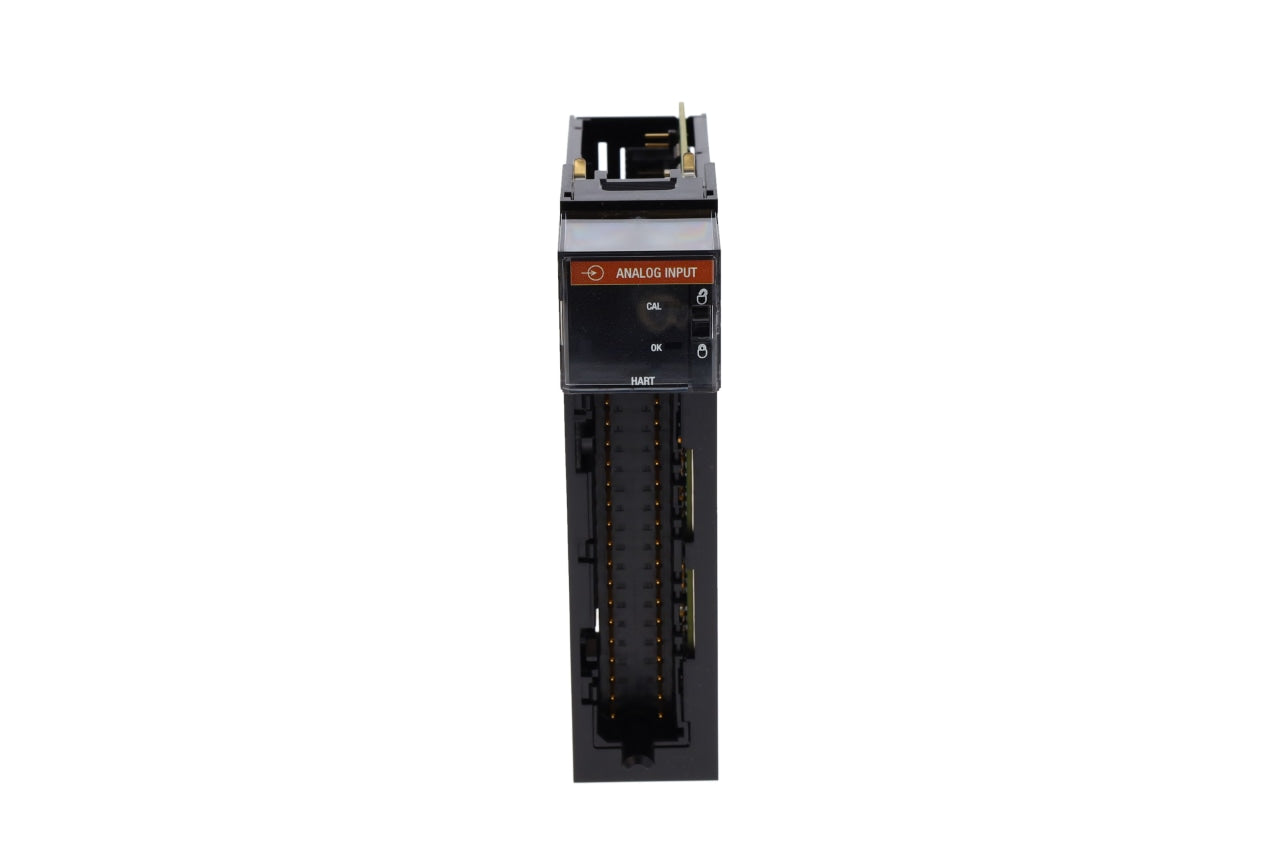

1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
    1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
    1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
    1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
    1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
    1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
    1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
1756-IF16H | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1756-IF16H

Description / Specifications

Description

The Allen-Bradley 1756-IF16H input module is a ControlLogix HART type of analog input module. It is used to connect a Logix controller to an industrial machine system. The 1756-IF16H analog input module operates by receiving signals from process value transmitter devices and converting them into measurement values such as temperature or pressure values that the Logix controller can use. It is designed to be mounted in a ControlLogix chassis with an RTB or removable terminal block that hosts all of its field side wiring. The 1756-IF16H analog input module has a separate HART modem for each input channel.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series ControlLogix
Part Number 1756-IF16H
Manufacturer Rockwell Automation
Backplane Current, 5.1VDC 200 mA
Removable Terminal Block 1756-TBCH; 1756-TBS6H
Module HART scan time Estimate 1 s if all channels are HART enabled
Module input scan time, min 11…328 ms (filter dependent)
Data Format Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
Conversion method Successive approximation
Analog signals 0-20 mA and 4-20 mA
No. of Inputs 16 Differential input; Dedicated HART modem per channel
Product Family PanelView Plus / PanelView Plus CE Operator Terminals
Backplane Current, 24VDC 125 mA
Module Type Analog Input module with HART protocol
Resolution 16-21 Bits
Total Backplane power 4.02 W
Inputs 16 Differential
Input Voltage Range 0-20 or 4-20 milliamps
Overvoltage Protection 8 Volts DC
Isolation Voltage 50 Volts Continuous
Enclosure Open
Removeable Terminal Blocks 1756-TBCH, 1756-TBS6H





Information About 1756-IF16H

The Allen-Bradley 1756-IF16H is an analog input module from the 1756 ControlLogix Programmable Logic Controller Automation (PAC). It supports integration of 0-20 mA or 4-20 mA input signal through hardwiring and Highway Addressable Remote Transducer (HART) communication protocol. This module provides Sixteen (16) differential current signals and One (1) HART modem per channel.

The 1756-IF16H has an integrated Analog to Digital Converter (ADC) using successive approximation method. Analog conversion resolution range is 16-21 bits, allowing more measuring points to be displayed. Converted signal is saved in Integer mode (left justified, 2 s complement) IEEE 32-bit floating point number.

Allen-Bradley recommends use of Single wire connection when terminating signals to the 1756-IF16H. Wire diameter is 0.33…2.1 mm2 (22…14 AWG) solid or stranded shielded copper wire with insulation rating of 105 °C (221 °F) or higher and maximum insulation thickness of 1.2 mm (3/64 in.). Compatible Removable Terminal Block (RTB) for use with the 1756-IF16H are 1756-TBCH and 1756-TBS6H.

The 1756-IF16H has a calibrated accuracy which is better than 0.13% of range on all filters while the module error is 0.3% of range. The module’s input scan time is 11…328 ms that is filter dependent while the module HART scan time is estimated at 1 s if all channels are HART enabled.

The 1756-IF16H allows you to choose which among the three data formats to use: analog only, analog and HART PV, and analog and HART by channel. It is important to select the right data format to use, as it determines which values are included in the Input tag of the module and the features that are available to your application. The Analog Only format only has the analog signal values and the analog status. The Analog and HART PV is recommended when you want the members of your tag to be arranged like the non-HART analog input modules. When you choose this data format, the analog values for all channels are grouped near the end of the tag, making it easy to see all the 16 analog values at once. Two input ranges are available for each channel in the module and these are either from 0 to 20 milliAmps and 4 to 20 milliAmps, with the latter being used by the HART instruments. These ranges designate the minimum and maximum signals that the module can detect. The module also has a module filter that attenuates the input signal beginning at the specified frequency. This is applied on a module-wide basis, affecting all channels. Note that HART instruments should not use the 1000 Hertz module filter. Real-time Sampling (RTS) is also another feature of this module. Applied module-wide, this parameter instructs the module of the frequency of scanning its input channels and obtain all available data. After scanning, the module will then multicast the data. But prior to the module configuration, you need to set the real-time sampling (RTS) period and the requested packet interval (RPI) period. It also has an under-range and over-range detection feature, which allows the module to detect when it is operating beyond the limits of the input range. This is a status indication that will tell you that the input signal is being measured inaccurately, as the signal is beyond the measuring capability of the module. Applied on a per channel basis, the module has a digital filter that smoothens out input data noise transients. Also, the module has a wire-off detection feature, which informs you when a signal wire has been disconnected from one of the channels or if configured for a 4 to 20 milliAmps range, when an RTB is removed from the module.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1756-IF16H input module is a ControlLogix HART type of analog input module. It is used to connect a Logix controller to an industrial machine system. The 1756-IF16H analog input module operates by receiving signals from process value transmitter devices and converting them into measurement values such as temperature or pressure values that the Logix controller can use. It is designed to be mounted in a ControlLogix chassis with an RTB or removable terminal block that hosts all of its field side wiring. The 1756-IF16H analog input module has a separate HART modem for each input channel.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series ControlLogix
Part Number 1756-IF16H
Manufacturer Rockwell Automation
Backplane Current, 5.1VDC 200 mA
Removable Terminal Block 1756-TBCH; 1756-TBS6H
Module HART scan time Estimate 1 s if all channels are HART enabled
Module input scan time, min 11…328 ms (filter dependent)
Data Format Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
Conversion method Successive approximation
Analog signals 0-20 mA and 4-20 mA
No. of Inputs 16 Differential input; Dedicated HART modem per channel
Product Family PanelView Plus / PanelView Plus CE Operator Terminals
Backplane Current, 24VDC 125 mA
Module Type Analog Input module with HART protocol
Resolution 16-21 Bits
Total Backplane power 4.02 W
Inputs 16 Differential
Input Voltage Range 0-20 or 4-20 milliamps
Overvoltage Protection 8 Volts DC
Isolation Voltage 50 Volts Continuous
Enclosure Open
Removeable Terminal Blocks 1756-TBCH, 1756-TBS6H





Information About 1756-IF16H

The Allen-Bradley 1756-IF16H is an analog input module from the 1756 ControlLogix Programmable Logic Controller Automation (PAC). It supports integration of 0-20 mA or 4-20 mA input signal through hardwiring and Highway Addressable Remote Transducer (HART) communication protocol. This module provides Sixteen (16) differential current signals and One (1) HART modem per channel.

The 1756-IF16H has an integrated Analog to Digital Converter (ADC) using successive approximation method. Analog conversion resolution range is 16-21 bits, allowing more measuring points to be displayed. Converted signal is saved in Integer mode (left justified, 2 s complement) IEEE 32-bit floating point number.

Allen-Bradley recommends use of Single wire connection when terminating signals to the 1756-IF16H. Wire diameter is 0.33…2.1 mm2 (22…14 AWG) solid or stranded shielded copper wire with insulation rating of 105 °C (221 °F) or higher and maximum insulation thickness of 1.2 mm (3/64 in.). Compatible Removable Terminal Block (RTB) for use with the 1756-IF16H are 1756-TBCH and 1756-TBS6H.

The 1756-IF16H has a calibrated accuracy which is better than 0.13% of range on all filters while the module error is 0.3% of range. The module’s input scan time is 11…328 ms that is filter dependent while the module HART scan time is estimated at 1 s if all channels are HART enabled.

The 1756-IF16H allows you to choose which among the three data formats to use: analog only, analog and HART PV, and analog and HART by channel. It is important to select the right data format to use, as it determines which values are included in the Input tag of the module and the features that are available to your application. The Analog Only format only has the analog signal values and the analog status. The Analog and HART PV is recommended when you want the members of your tag to be arranged like the non-HART analog input modules. When you choose this data format, the analog values for all channels are grouped near the end of the tag, making it easy to see all the 16 analog values at once. Two input ranges are available for each channel in the module and these are either from 0 to 20 milliAmps and 4 to 20 milliAmps, with the latter being used by the HART instruments. These ranges designate the minimum and maximum signals that the module can detect. The module also has a module filter that attenuates the input signal beginning at the specified frequency. This is applied on a module-wide basis, affecting all channels. Note that HART instruments should not use the 1000 Hertz module filter. Real-time Sampling (RTS) is also another feature of this module. Applied module-wide, this parameter instructs the module of the frequency of scanning its input channels and obtain all available data. After scanning, the module will then multicast the data. But prior to the module configuration, you need to set the real-time sampling (RTS) period and the requested packet interval (RPI) period. It also has an under-range and over-range detection feature, which allows the module to detect when it is operating beyond the limits of the input range. This is a status indication that will tell you that the input signal is being measured inaccurately, as the signal is beyond the measuring capability of the module. Applied on a per channel basis, the module has a digital filter that smoothens out input data noise transients. Also, the module has a wire-off detection feature, which informs you when a signal wire has been disconnected from one of the channels or if configured for a 4 to 20 milliAmps range, when an RTB is removed from the module.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
