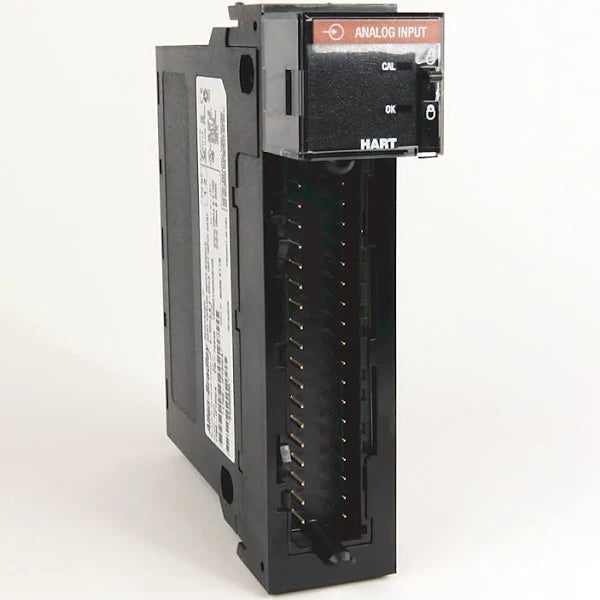

1756-IF16IH | Allen-Bradley ControlLogix Analog Input Module 16-Point HART
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-IF16IH
Description
The Allen-Bradley 1756-IF16IH is a ControlLogix isolated analog input module with HART protocol support. It provides 16 input channels for current signals in the 0–20 mA and 4–20 mA ranges, offering high-resolution data acquisition for advanced process control. Designed for integration with ControlLogix systems, this module enables both standard analog input monitoring and HART device communication in industrial automation environments.
Technical Specifications
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Part Number | 1756-IF16IH |
| Manufacturer | Rockwell Automation |
| Module Type | HART Interface Module |
| Inputs | 16 |
| Input Current Range | 0-20 Miliamperes, 4-20 Miliamperes |
| Backplane Current | 225 Miliamperes at 5.1 Volts DC, 200 Miliamperes at 24 Volts DC |
| Inrush Current | 400 Miliamperes at 5.1 Volts DC, 450 Miliamperes at 24 Volts DC |
| Power Dissipation | 5.30 Watts |
| Isolation Voltage | 250 Volts Continuous |
| Input Overvoltage Protection | 28.8 Volts DC |
| Input Impedance | 250 Ohms (+/- 5 Ohms) |
| Resolution | 16-21 bits |
| Slot Width | 1 |
| Enclosure Type | None (Open-Style) |
| Operating Temperature | 32-140 F (0-60 C) |
Information About 1756-IF16IH
The 1756-IF16IH is part of the Allen-Bradley ControlLogix I/O family, developed for precise analog measurement and field device integration. It features 16 differential input channels with selectable current ranges of 0–20 mA or 4–20 mA, providing 16–21 bits of resolution through a 24-bit Sigma-Delta A/D converter. The module consumes 225 mA at 5.1 VDC and 200 mA at 24 VDC, with a maximum power dissipation of 5.3 W. It has an input impedance of 250 Ω (±5 Ω), open-circuit detection for 4–20 mA signals, and overvoltage protection up to 28.8 VDC. The module offers excellent noise rejection (>90 dB at 50/60 Hz) and maintains accuracy within 0.15% to 1.5% of full scale at 25 °C (HART disabled). With a calibration interval of 12 months, continuous 250 V isolation, and compatibility with 1756-TBCH or 1756-TBS6H terminal blocks, the 1756-IF16IH ensures long-term reliability. It supports both integer and IEEE 32-bit floating-point data formats, enabling integration into modern control strategies while providing advanced diagnostics and HART communication.
Key Features:
- Design: 16-channel isolated analog input module with HART support.
- Signal Range: Configurable for 0–20 mA or 4–20 mA input signals.
- Resolution: 16–21 bits using Sigma-Delta 24-bit A/D conversion.
- Power Requirements: 225 mA @ 5.1 VDC, 200 mA @ 24 VDC, 5.3 W power dissipation.
- Input Impedance: 250 Ω (±5 Ω) with overvoltage protection up to 28.8 VDC.
- Accuracy: 0.15% to 1.5% of full scale at 25 °C (HART disabled).
- Noise Rejection: Greater than 90 dB at 50/60 Hz.
- Diagnostics: Open-circuit detection (4–20 mA range) and advanced HART diagnostics.
- Isolation: 250 V continuous isolation for field-to-system protection.
- Integration: Compatible with 1756-TBCH and 1756-TBS6H removable terminal blocks.
The 1756-IF16IH delivers precise analog measurement and integrated HART communication, making it a robust solution for process monitoring and control in ControlLogix systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
