Product Description P/N: 1756-IF4FXOF2F

Description / Specifications

Description

The 1756-IF4FXOF2F is a ControlLogix Discrete High-speed analog I/O module. It has Four (4) high-speed, submillisecond, differential inputs, compatible for input signal ranges of ± 10V 0…10V 0…5V 0…20 mA. It also has Two high-speed voltage or current outputs with output signal ranges of ± 10V 0…20 mA.



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1756-IF4FXOF2F
Series ControlLogix
Inputs 4 high speed sub-millisecond differential
Module Type High Speed Analog Input / Ouptut Module
Outputs 2 high speed current-voltage
Input signals ranges ± 10V; 0…10V; 0…5V; 0…20 mA
Input Resolution 14 bits across ±10.5V DC ; 12 bits across 21 mA
No. of Outputs 2 high speed current/ voltage
Output Resolution 13 bits across 21 mA = 2.8 µA/bit; 14 bits across 21.8V = 1.3 mV/bit
Output Signal Ranges ± 10V; 0…20 mA
Backplane Current (5Volts) 375 milliamps
Backplane Current (24Volts) 100 milliamps
Power Dissipation (Max) 4.3 Watts (Voltage), 4.7 Watts (Current)
Removeable Terminal Blocks 1756-TBCH, 1756-TBS6H





Information About 1756-IF4FXOF2F

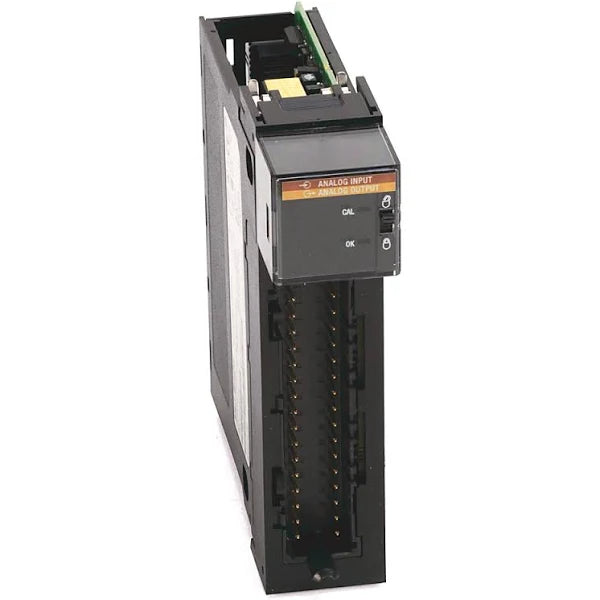

The Allen-Bradley 1756-IF4FXOF2F is an analog combination I/O module. This module belongs to the ControlLogix system, which is compatible with the 1756 ControlLogix chassis and requires either the 1756-TBS6H or 1756-TBCH removable terminal block housing (RTB). The module has 4 high-speed, sub-millisecond, differential inputs and 2 high-speed voltage or current outputs. The module has a display that shows the module health and operation state such as calibration mode. The input range of the 1756-IF4FXOF2F is +/-10 Volts, 0 to 10 Volts, 0 to 5 Volts, and 0 to 20 milliamps, with an over-range indication when the module exceeds these ranges. The overvoltage protection voltage is 30 Volts DC and for current is 8 Volts AC/DC. Its open circuit detection is a positive full-scale reading within 1 second.

The module’s output range is +/-10 Volts, 0 to 20 milliamps and has a short circuit protection that is electronically current limited to 21 milliamps or less. It also has an overvoltage protection of 24 Volts DC and an open circuit detection, but it is limited to the current output only (note that the output must be set to greater than 0.1 milliamps). The 1756-IF4FXOF2F has voltage and current ratings of 375 milliamps (at 5.1 Volt DC) and 100 milliamps (at 24 Volts DC) for its backplane and -10 to 10 Volts and 4 to 20 milliamps for both the analog inputs and outputs. The module’s power consumption is 4.3 Watts and power is dissipated at 4.3 Watts for the voltage and 4.7 Watts for the current. Thermal dissipation is at 14.66 BTU/hour and 16.02 BTU/hour for the voltage and current respectively. Its current draw at 5.1 Volts is 375 milliamps and 100 milliamps at 24 Volts. It also has an update period of 300us minute Scan Time and features sub-millisecond channel scans and synchronized sampling across multiple modules.

The Allen-Bradley 1756-IF4FXOF2F is a ControlLogix High-Speed analog combination module. This module features Four (4) 4 high-speed, submillisecond, differential inputs that is compatible of receiving ± 10V, 0 to 10V, 0 to 5V and 0 to 20 mA signal ranges. It has an integrated overrange and underrange indication to each analog input channel. It is also equipped with Two (2) high-speed voltage or current with output range of ± 10V and 0 to 20 mA.

The input channel of this module converts the received analog signal via Successive approximation method with a conversion resolution of 14 bits across ±10.5V and 12 bits across 21 mA. It has a repeatability of ±1 Least Significant Bit (LSB) and requires calibration interval of 12 Months. The analog inputs are applicable for measuring analog process variables such as Flow, Level, Pressure, Temperature, Viscosity, pH, Turbidity, Speed and many other process variables.

The output channel of this module features an output resolution of 13 bits across 21 mA = 2.8 µA/bit and 14 bits across 21.8V = 1.3 mV/bit. The output channel conversion is through R-Ladder DAC conversion method with no missing codes. The output analog signal of this module may be used to command modulating actions intended for Control Valves, Variable Frequency Drives, Dampers, Louvers, Signal Converters and Transducers. It may also be used to re-transmit signals for use by indicators, recorders and other devices. The analog output of this module may be linked to a manual control command, an Arithmetic operation or control output of a Proportional-Integral-Derivative (PID) controller.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The 1756-IF4FXOF2F is a ControlLogix Discrete High-speed analog I/O module. It has Four (4) high-speed, submillisecond, differential inputs, compatible for input signal ranges of ± 10V 0…10V 0…5V 0…20 mA. It also has Two high-speed voltage or current outputs with output signal ranges of ± 10V 0…20 mA.



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1756-IF4FXOF2F
Series ControlLogix
Inputs 4 high speed sub-millisecond differential
Module Type High Speed Analog Input / Ouptut Module
Outputs 2 high speed current-voltage
Input signals ranges ± 10V; 0…10V; 0…5V; 0…20 mA
Input Resolution 14 bits across ±10.5V DC ; 12 bits across 21 mA
No. of Outputs 2 high speed current/ voltage
Output Resolution 13 bits across 21 mA = 2.8 µA/bit; 14 bits across 21.8V = 1.3 mV/bit
Output Signal Ranges ± 10V; 0…20 mA
Backplane Current (5Volts) 375 milliamps
Backplane Current (24Volts) 100 milliamps
Power Dissipation (Max) 4.3 Watts (Voltage), 4.7 Watts (Current)
Removeable Terminal Blocks 1756-TBCH, 1756-TBS6H





Information About 1756-IF4FXOF2F

The Allen-Bradley 1756-IF4FXOF2F is an analog combination I/O module. This module belongs to the ControlLogix system, which is compatible with the 1756 ControlLogix chassis and requires either the 1756-TBS6H or 1756-TBCH removable terminal block housing (RTB). The module has 4 high-speed, sub-millisecond, differential inputs and 2 high-speed voltage or current outputs. The module has a display that shows the module health and operation state such as calibration mode. The input range of the 1756-IF4FXOF2F is +/-10 Volts, 0 to 10 Volts, 0 to 5 Volts, and 0 to 20 milliamps, with an over-range indication when the module exceeds these ranges. The overvoltage protection voltage is 30 Volts DC and for current is 8 Volts AC/DC. Its open circuit detection is a positive full-scale reading within 1 second.

The module’s output range is +/-10 Volts, 0 to 20 milliamps and has a short circuit protection that is electronically current limited to 21 milliamps or less. It also has an overvoltage protection of 24 Volts DC and an open circuit detection, but it is limited to the current output only (note that the output must be set to greater than 0.1 milliamps). The 1756-IF4FXOF2F has voltage and current ratings of 375 milliamps (at 5.1 Volt DC) and 100 milliamps (at 24 Volts DC) for its backplane and -10 to 10 Volts and 4 to 20 milliamps for both the analog inputs and outputs. The module’s power consumption is 4.3 Watts and power is dissipated at 4.3 Watts for the voltage and 4.7 Watts for the current. Thermal dissipation is at 14.66 BTU/hour and 16.02 BTU/hour for the voltage and current respectively. Its current draw at 5.1 Volts is 375 milliamps and 100 milliamps at 24 Volts. It also has an update period of 300us minute Scan Time and features sub-millisecond channel scans and synchronized sampling across multiple modules.

The Allen-Bradley 1756-IF4FXOF2F is a ControlLogix High-Speed analog combination module. This module features Four (4) 4 high-speed, submillisecond, differential inputs that is compatible of receiving ± 10V, 0 to 10V, 0 to 5V and 0 to 20 mA signal ranges. It has an integrated overrange and underrange indication to each analog input channel. It is also equipped with Two (2) high-speed voltage or current with output range of ± 10V and 0 to 20 mA.

The input channel of this module converts the received analog signal via Successive approximation method with a conversion resolution of 14 bits across ±10.5V and 12 bits across 21 mA. It has a repeatability of ±1 Least Significant Bit (LSB) and requires calibration interval of 12 Months. The analog inputs are applicable for measuring analog process variables such as Flow, Level, Pressure, Temperature, Viscosity, pH, Turbidity, Speed and many other process variables.

The output channel of this module features an output resolution of 13 bits across 21 mA = 2.8 µA/bit and 14 bits across 21.8V = 1.3 mV/bit. The output channel conversion is through R-Ladder DAC conversion method with no missing codes. The output analog signal of this module may be used to command modulating actions intended for Control Valves, Variable Frequency Drives, Dampers, Louvers, Signal Converters and Transducers. It may also be used to re-transmit signals for use by indicators, recorders and other devices. The analog output of this module may be linked to a manual control command, an Arithmetic operation or control output of a Proportional-Integral-Derivative (PID) controller.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
