Part #: 1756-IF6I Manufactured by: Allen-Bradley

1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts

Regular price
$319.00
Sale price
$319.00
Regular price
Never Used Surplus
32 in Stock
Shipping calculated at checkout.
Product Overview

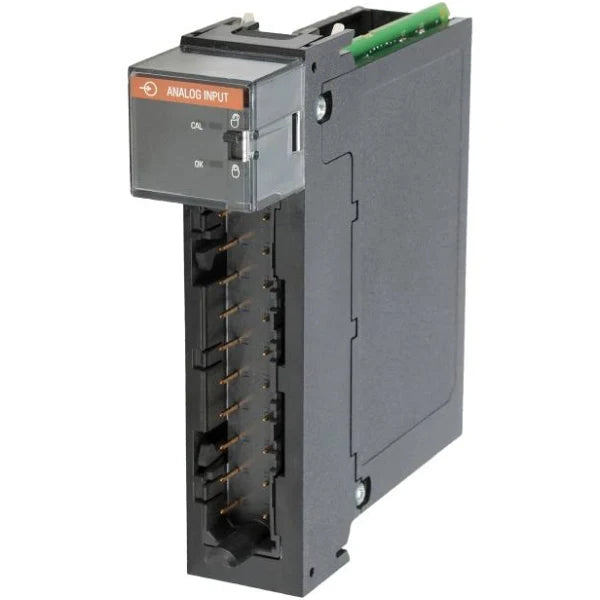

Allen Bradley 1756-IF6I ControlLogix Isolated Analog Input Module with 6-Point Isolated Inputs
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1756-IF6I
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
    1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
    1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
    1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
1756-IF6I | Allen-Bradley ControlLogix Analog Input Module, Current/Voltage, 6 Pts
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1756-IF6I

Description / Specifications

Description

The 1756-IF6I is a ControlLogix analog input module. It has 6 individually isolated Current and Voltage input channels compatible for input signal range of ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA. It has a resolution of 16 bits and compatible for interfacing with 2-Wire and 4-Wire signal transmitters.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number/Catalog No. 1756-IF6I
Series ControlLogix
Module Type Analog Input
Inputs 6-Points, Isolated
Conversion Method Sigma-Delta
Data format Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
Input signal Range ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA
Backplane Current (5Volts) 250 mA
Backplane Current (24Volts) 100 milliamps
Power Dissipation (Max) Voltage 3.7 W Current: 4.3 W
Removeable Terminal Blocks 1756-TBNH 1756-TBSH





Information About 1756-IF6I

The Allen-Bradley 1756-IF6I is an Isolated Analog Voltage/Current Input Module. It has Six (6) individually isolated inputs and is part of the ControlLogix system. This module requires either the 20-pin 1756-TBNH or 1756-TBSH Removable Terminal Block (RTB) before it can be wired with input signals. You can choose between two data formats for the 1756-IF6I: the integer mode and the floating-point mode. It has 16 significant bits and you can select which range to use for every channel on your module among the series of operational ranges. The available ranges and their respective resolutions are as follows: +/- 10.5 Volts has 343 ?Volt/count, 0 to 10.5V has 171 ?Volt/count, 0 to 5.25 Volts has 86 ?Volt/count, and 0 to 21 milliamps has 0.34 ?A/count. When the isolated input module is operating beyond the limits set by the input range, the under-range/over-range detection feature will be activated. Line noise in your application in each channel can be removed using the module’s analog-to-digital converter. Since each filter time affects the response time of your module and the highest frequency notch filter settings, limit the effective resolution of the channel. Remember to choose the notch filter that is the closest match to the anticipated noise frequency. A digital filter is also present and this smoothens out input data noise transients on each input channel.

Real-time sampling, or RTS, is another feature of the 1756-IF6I. When you configure a module, you need to set a requested packet interval (RPI) period and a real-time sampling (RTS) period. Once these parameters are set, the module will scan its input channels and collect all available data and after scanning, the module will then multicast the data. It also has a wire off detection feature that triggers when a wire has been disconnected from a channel or when an RTB has been removed from the module. Additionally, the 1756-IF6I is equipped with rate alarm for applications using the floating-point mode. This monitors the rate of change between input samples. Each channel exceeding the specified trigger point for that channel will produce an alarm. Process alarms are also present and are triggered when the module has exceeded its configured high or low limits for every channel.

The Allen-Bradley 1756-IF6I is a ControlLogix analog input module. This module has Six (6) individually isolated analog input channels. This module is designed to receive ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA with resolution of 16 bits. Each channel has built-in input signal quality detection for monitoring and reference of control with reference to the signal quality.

For a +/- 10VDC input, the minimum user count is 10.54688V and maximum user count of 10.54688V. Similarly, a 0-10VDC input has 0V- 10.54688V; 0-5VDC has 0V- 5.27344V; For 0-20mA has 0mA-21.09376V. These input signal range are converted by the analog input through the integrated analog to digital converter via Sigma-Delta conversion method. The actual resolution for each input signals are 343 ?V/bit for 10.5VDC, 171 ?V/bit for 0-10.5VDC; 86 ?V/bit for 0 to 5.25V and 0.34 ?A/bit for 0-21mA.

This module supports scaling to engineering units to provide a readable and usable user-data for use with Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA). Aside for integration to computer-based monitoring and control systems, the scaled input is used by control logic such as arithmetic instruction or Proportional-Integral-Derivative (PID) algorithm as their Process Variable (PV) or Setpoint, depending on the control strategy implemented. The module also supports real-time data sampling with adjustable sampling times and On-board data alarming for self-diagnostics.

The Analog signals typically represent the magnitude of Process Variables (PV) such as Pressure, Level, Temperature, Flow, Speed, % Travel, Viscosity, Turbidity, Vibration and other Process Variables. Some instruments that produce analog signals are Transmitters, Transducers, Indicators, Strain-Gauges, displacers, potentiometers and other analog signaling instruments.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The 1756-IF6I is a ControlLogix analog input module. It has 6 individually isolated Current and Voltage input channels compatible for input signal range of ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA. It has a resolution of 16 bits and compatible for interfacing with 2-Wire and 4-Wire signal transmitters.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number/Catalog No. 1756-IF6I
Series ControlLogix
Module Type Analog Input
Inputs 6-Points, Isolated
Conversion Method Sigma-Delta
Data format Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
Input signal Range ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA
Backplane Current (5Volts) 250 mA
Backplane Current (24Volts) 100 milliamps
Power Dissipation (Max) Voltage 3.7 W Current: 4.3 W
Removeable Terminal Blocks 1756-TBNH 1756-TBSH





Information About 1756-IF6I

The Allen-Bradley 1756-IF6I is an Isolated Analog Voltage/Current Input Module. It has Six (6) individually isolated inputs and is part of the ControlLogix system. This module requires either the 20-pin 1756-TBNH or 1756-TBSH Removable Terminal Block (RTB) before it can be wired with input signals. You can choose between two data formats for the 1756-IF6I: the integer mode and the floating-point mode. It has 16 significant bits and you can select which range to use for every channel on your module among the series of operational ranges. The available ranges and their respective resolutions are as follows: +/- 10.5 Volts has 343 ?Volt/count, 0 to 10.5V has 171 ?Volt/count, 0 to 5.25 Volts has 86 ?Volt/count, and 0 to 21 milliamps has 0.34 ?A/count. When the isolated input module is operating beyond the limits set by the input range, the under-range/over-range detection feature will be activated. Line noise in your application in each channel can be removed using the module’s analog-to-digital converter. Since each filter time affects the response time of your module and the highest frequency notch filter settings, limit the effective resolution of the channel. Remember to choose the notch filter that is the closest match to the anticipated noise frequency. A digital filter is also present and this smoothens out input data noise transients on each input channel.

Real-time sampling, or RTS, is another feature of the 1756-IF6I. When you configure a module, you need to set a requested packet interval (RPI) period and a real-time sampling (RTS) period. Once these parameters are set, the module will scan its input channels and collect all available data and after scanning, the module will then multicast the data. It also has a wire off detection feature that triggers when a wire has been disconnected from a channel or when an RTB has been removed from the module. Additionally, the 1756-IF6I is equipped with rate alarm for applications using the floating-point mode. This monitors the rate of change between input samples. Each channel exceeding the specified trigger point for that channel will produce an alarm. Process alarms are also present and are triggered when the module has exceeded its configured high or low limits for every channel.

The Allen-Bradley 1756-IF6I is a ControlLogix analog input module. This module has Six (6) individually isolated analog input channels. This module is designed to receive ±10.5V, 0 -10.5V, 0-5.25V and 0-21 mA with resolution of 16 bits. Each channel has built-in input signal quality detection for monitoring and reference of control with reference to the signal quality.

For a +/- 10VDC input, the minimum user count is 10.54688V and maximum user count of 10.54688V. Similarly, a 0-10VDC input has 0V- 10.54688V; 0-5VDC has 0V- 5.27344V; For 0-20mA has 0mA-21.09376V. These input signal range are converted by the analog input through the integrated analog to digital converter via Sigma-Delta conversion method. The actual resolution for each input signals are 343 ?V/bit for 10.5VDC, 171 ?V/bit for 0-10.5VDC; 86 ?V/bit for 0 to 5.25V and 0.34 ?A/bit for 0-21mA.

This module supports scaling to engineering units to provide a readable and usable user-data for use with Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA). Aside for integration to computer-based monitoring and control systems, the scaled input is used by control logic such as arithmetic instruction or Proportional-Integral-Derivative (PID) algorithm as their Process Variable (PV) or Setpoint, depending on the control strategy implemented. The module also supports real-time data sampling with adjustable sampling times and On-board data alarming for self-diagnostics.

The Analog signals typically represent the magnitude of Process Variables (PV) such as Pressure, Level, Temperature, Flow, Speed, % Travel, Viscosity, Turbidity, Vibration and other Process Variables. Some instruments that produce analog signals are Transmitters, Transducers, Indicators, Strain-Gauges, displacers, potentiometers and other analog signaling instruments.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
