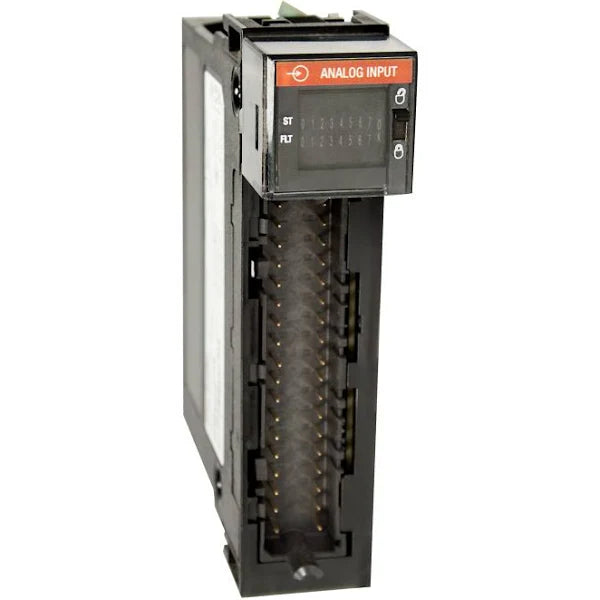

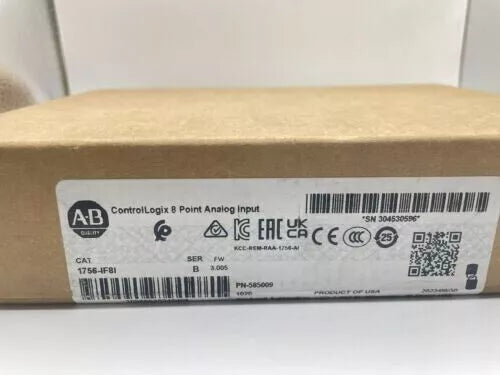

1756-IF8I | Allen-Bradley ControlLogix Analog Isolated Input Module 8-Points 36Pin
- Regular price
- $980.00
- Sale price
- $980.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-IF8I
Description
The Allen-Bradley 1756-IF8I is a ControlLogix analog input module with eight individually isolated channels. It supports voltage and current input ranges, including ±10.5 V, 0–10.5 V, 0–5 V, and 0–21 mA, with a high-resolution 24-bit conversion for precise measurement.
Technical Specifications
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Part Number | 1756-IF8I |
| Manufacturer | Rockwell Automation |
| Module Type | Analog Input |
| Channels | 8 Isolated Channels |
| Inputs | 8-Points, Isolated , Any combination of Voltage or Current mode |
| I-O Ranges | 0-10 Volts |
| Conversion Method | Sigma-Delta |
| Data format | IEEE 32-bit floating point |
| Current Draw (5.1 Volts) | 200 milliamps |
| Input signal Range | -10…10V 0…10V 0…5V 0…20 mA |
| Current Draw (24 Volts) | 150 or 400 milliamps Resolution 16-21 bits |
| Resolution | 16-21 bits |
| Input Resolution | 24 bits; ±10.5V (1.49 ?V/count) 0…10.5V (1.49 ?V/count) 0…5.25V (1.49 ?V/count) 0…21 mA (2.99 nA/count) |
| Resolution | 16-21 bits |
| Backplane Current (5Volts) | 200 mA |
| Enclosure | Open |
| Backplane Current (24Volts) | Voltage/Non-sourcing Current mode: 150 mA Sourcing Current mode: 400 mA (In Sourcing Current mode, the channel provides loop power.) |
| Power Dissipation (Max) | Voltage mode: 4.6 W Non-sourcing Current mode: 5.1 W Sourcing Current mode: 7.3 W |
| Removeable Terminal Blocks | 1756-TBNH, 1756-TBS6H |
Information About 1756-IF8I
The 1756-IF8I is part of the Allen-Bradley ControlLogix family, designed to handle high-accuracy analog input signals in demanding industrial applications. It provides eight isolated input channels, each configurable for current or voltage mode, and supports both 2-wire and 4-wire transmitters. With a 24-bit Sigma-Delta conversion method, it achieves resolutions as fine as 1.49 µV/count for voltage inputs and 2.99 nA/count for current inputs, far exceeding the accuracy of standard 13–16 bit modules. The module includes protective and diagnostic features such as overvoltage protection, short-circuit detection, temperature error monitoring, ramp rate alarms, and process alarms. It consumes 200 mA at 5.1 VDC and 150–400 mA at 24 VDC from the ControlLogix backplane, and data is processed in IEEE 32-bit floating-point format for compatibility with advanced control systems.
Key Features:
- Channel Capacity: Eight individually isolated channels configurable for voltage or current signals.
- Input Ranges: Accepts ±10.5 V, 0–10.5 V, 0–5 V, and 0–21 mA input signals for versatile process monitoring.
- Resolution: 24-bit Sigma-Delta conversion provides high accuracy with 1.49 µV/count for voltage and 2.99 nA/count for current.
- Data Format: Outputs measurements in IEEE 32-bit floating-point format for integration with advanced control systems.
- Transmitter Compatibility: Supports both 2-wire and 4-wire transmitters for flexible field device connections.
- Protective Features: Includes overvoltage protection, short-circuit detection, and thermal error handling.
- Diagnostic Functions: Built-in process alarms, ramp rate alarms, and module-level diagnostics for improved reliability.
- Power Consumption: Draws 200 mA at 5.1 VDC and 150–400 mA at 24 VDC from the backplane.
- Enclosure: Open-style design for installation within ControlLogix chassis.
The 1756-IF8I delivers the reliability and precision required for high-resolution analog measurement in ControlLogix automation systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
