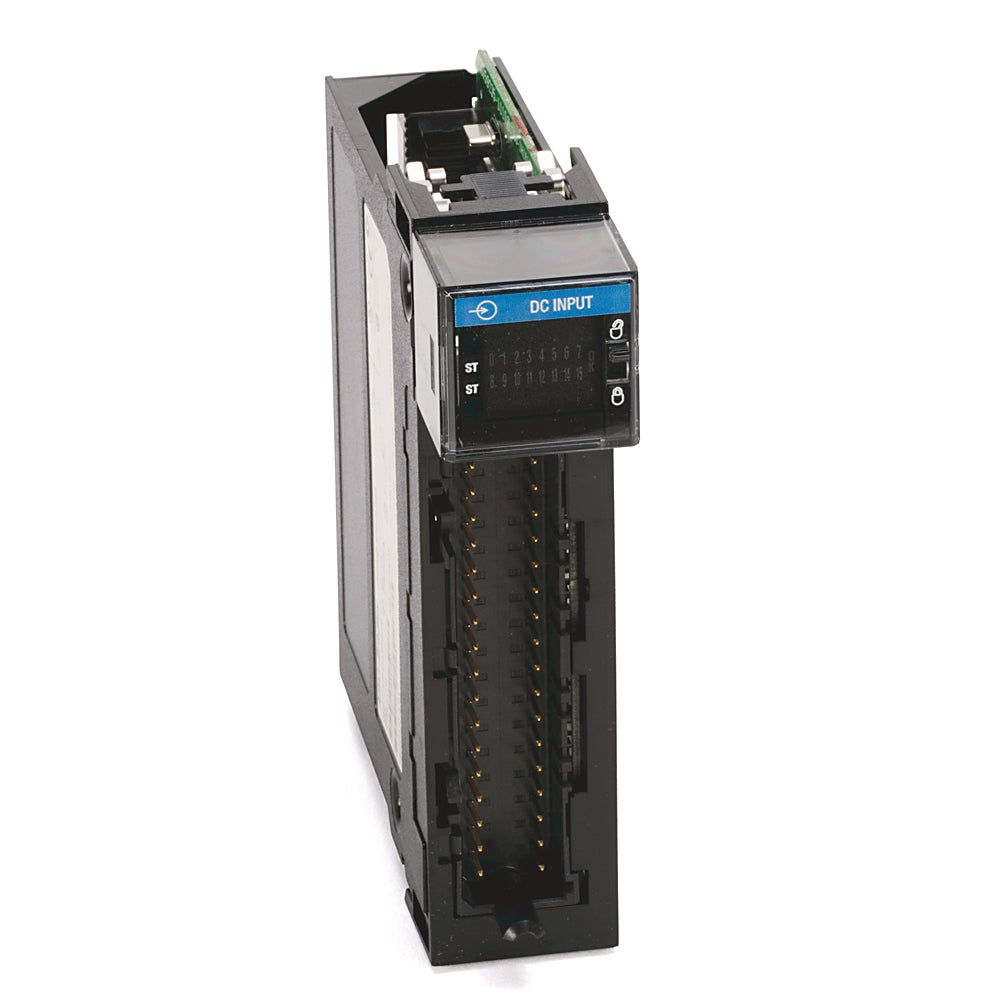

1756-IH16I | Allen-Bradley ControlLogix Digital Isolated Input Module
- Regular price
- $334.00
- Sale price
- $334.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-IH16I
Description
The Allen-Bradley 1756-IH16I is a ControlLogix digital input module featuring 16 individually isolated input channels designed for high-voltage DC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category | PLCs and Accessories |
| Part Number | 1756-IH16I |
| Subcategory | PLC Expansion Modules |
| Series |
ControlLogix
|
| Inputs | 16 Indvidually Isolated Points |
| Input Voltage | 125 Volts DC Sink-Source |
| Operating Voltage Range | 90-146 Volts DC |
| Input Delay Time | 6 milliseconds plus selected filter time |
| Minimum Operating Current | 1 milliamp at 90 Volts DC |
| Maximum Operating Current | 3 milliamps at 146 Volts DC |
| Maximum Input Current, Off-State | 0.8 milliamps |
| Power Dissipation (Max) | 5 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 125 milliamps |
| Backplane Current at 24 Volts | 3 milliamps |
| Weight | 0.18 kgs |
Information About 1756-IH16I
The Allen-Bradley 1756-IH16I is a ControlLogix digital input module featuring 16 individually isolated input channels designed for high-voltage DC applications. It operates within a voltage range of 90…146V DC, making it suitable for detecting high-voltage DC signals in industrial automation systems.
Key Features:
- Voltage Category: 125V DC sink/source
- Nominal Input Voltage: 125V DC
- Input Delay Time:
- Off to On: Hardware delay of 2 ms maximum, plus user-selectable filter time of 0, 1, or 2 ms
- On to Off: Hardware delay of 6 ms maximum, plus user-selectable filter time of 0, 1, 2, 9, or 18 ms
- Backplane Current Draw:
- At 5.1V: 125 mA
- At 24V: 3 mA
- Power Dissipation: Maximum of 5 W at 60 °C (140 °F)
- Thermal Dissipation: Approximately 17.05 BTU/hr
- Off-State Voltage: Maximum of 20V DC
The 1756-IH16I is ideal for applications requiring reliable detection of high-voltage DC signals, offering flexibility through selectable input filter times to accommodate various response requirements.
