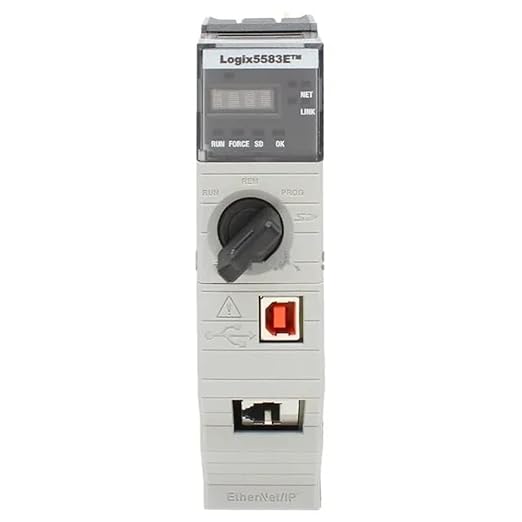

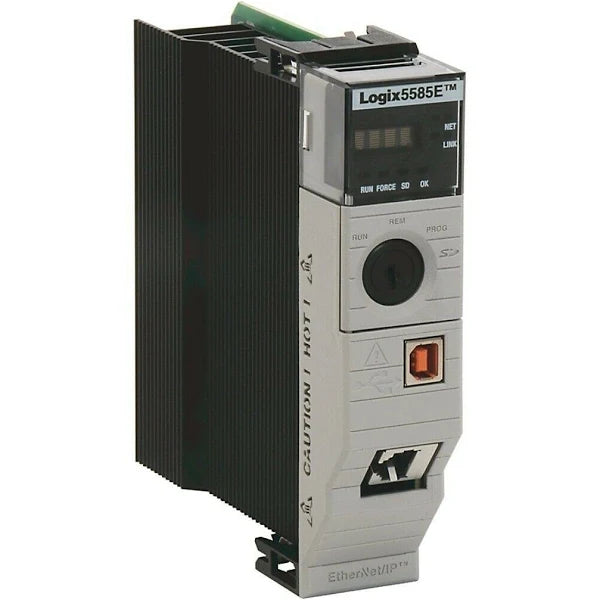

1756-L83E | Allen-Bradley ControlLogix Logix5580 Processor, 10MB, USB/EtherNet
1756-L83E | Allen-Bradley ControlLogix Logix5580 Processor, 10MB, USB/EtherNet
Part #: 1756-L83E Manufactured by: Allen-Bradley

1756-L83E | Allen-Bradley ControlLogix Logix5580 Processor, 10MB, USB/EtherNet

Regular price
$6,999.00
Sale price
$6,999.00
Regular price
Never Used Surplus
25 in Stock
Product Overview
Allen Bradley ControlLogix Processor Module with 10 MB User Memory and USB, Ethernet Communications
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1756-L83E
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1756-L83E | Allen-Bradley ControlLogix Logix5580 Processor, 10MB, USB/EtherNet
    1756-L83E | Allen-Bradley ControlLogix Logix5580 Processor, 10MB, USB/EtherNet
1756-L83E | Allen-Bradley ControlLogix Logix5580 Processor, 10MB, USB/EtherNet
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1756-L83E

Description / Specifications

Description

The 1756-L83E is a controller module for the ControlLogix Modular Programmable Automation Controller (PAC) by Allen-Bradley. It comes with Memory of 10MB, and built-in Ethernet and USB communication interface. It is capable of 128,000 Discrete I/O and 4000 Analog I/O memory.



Technical Specifications



Brand Allen-Bradley
Series ControlLogix
Part Number 1756-L83E
Manufacturer Rockwell Automation
Module Type Processor Module
Tasks 32
Nonvolatile Memory 2 GB (1784-SD2 ships with every controller)
Communications USB, Ethernet
Communication 1 port USB; Ethernet
Communication Speed 12 MB-Second
Ethernet Nodes 100 or 250
USB Port Communication Programming, configuration, and on-line edits
Ethernet Communication Speed 10/100/1000 Mbps
USB Communication Speed 12 Mbps
Current Draw (1.2 Volts DC) 5 milliamps
Discrete I/O 128,000
Current Draw (5.1 Volts) 1.2 amps
Analog I/O 4,000
User Memory 4MB
Power Dissipation 6.2 Watts
Thermal Dissipation 21.2 BTU-hour
Backplane Current (1.2 Volts DC) 5 mA
Isolation Voltage 50 Volts Continuous
Backplane Current (5.1 Volts DC) 1.2 mA
Enclosure None
Relative Humidity 5-95 %
Redundancy Full Support
Programming Languages Relay ladder Structured text Function block SFC





Information About 1756-L83E

The Allen-Bradley 1756-L83E belongs to the Logix 5585E controller platform.

This controller is also designed with an embedded Ethernet communication port which support auto-negotiation with support for 10/100/100 Mbps transmission rate. Only linear topology may be implemented through this embedded port however, this controller module support addition of communication modules such as EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink and Third-party process and device networks for implementing a more sophisticated communication topology.

BOOTP-DHCP utility is used to configure an IP address to this module. For standard applications, this controller supports configuration of Static IP address however, for advanced security requirements, it may also be configured with dynamic IP parameters. With dynamic parameter, the address changes every power cycle or as triggered by a network provider. This setting is ideal for critical applications to prevent unwanted access to control and operational data.

This controller supports redundancy architecture for increasing the availability of this controller. It enables the system to operate when the primary controller is faulted by automatically switching to the secondary processor. It is also capable of implementing Remote I/O systems with the use of native ControlLogix modules or I/O system such as Flex I/O or POINT I/O. It can also communicate to other Allen-Bradley Programmable Logic Controllers (PLC) such as PLC 5, SLC 500, MicroLogix, and CompactLogix controller through mesaging instructions.

The Allen-Bradley 1756-L83E is a ControlLogix 5580 controller centered on EtherNet/IP communication. It supports 32 tasks where up to 1000 programs/task including event tasks with all event triggers being implemented. The controller has an available user memory for data and logic of 10 MB and an optional non-volatile storage memory. It ships with a 2 GB Secure Digital (SD) card, the 1784-SD2, that is already preinstalled with the controller. The controller also has a non-removable energy storage module that is already embedded in the controller. 2 communication ports are available with the 1756-L83E controller, a Type-B USB port and an embedded EtherNet port.

It is recommended that you only use a Rockwell Automation SD card, as these cards have been tested to work with controllers like the 1756-L83E and withstand extreme temperatures the controllers may be subjected to. You risk having data loss or corruption when you use other SD cards. It is important that you leave the SD card installed, as diagnostic data will be saved here in case of faults.

EtherNet/IP-related uses of this controller include connecting the controller with I/O modules, directly connecting it to an EtherNet/IP network without needing a bridge module, bridge messages between modules and EtherNet/IP in the ControlLogix chassis, support 10 Mbps, 100 Mbps, and even 1 Gbps link speeds, and communicate to other Ethernet/IP devices (messages and produced/consumed tags).

The controller has an EtherNet performance of 10/100/1000 Mbps and can support up to 250 EtherNet/IP nodes when used with the Studio 5000 Logix Designer Version 30 or higher. It does not support controller redundancy. It also has a maximum digital I/O and total I/O of 128,000 each and an analog I/O of 4,000.

The 1756-L83E controller has a continuous isolation voltage of 50V and it has been type tested at 1000V AC for 60 seconds. It also has a current draw of 5.0 mA at 1.2V DC and 1.20 A at 5.1V DC Power dissipation of this controller is 6.2 W and thermal dissipation is 21.2 BTU/hr. It also has a vibration of 2 g at 10 to 500 Hz and an operating and non-operating shock of both 30 g. Celsius, while its operating temperature range is 0 to 60 Degrees Celsius. It has a vibration of 2 G at 10 to 500 Hertz, an operating shock of 30 G, and a non-operating shock of 50 G.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The 1756-L83E is a controller module for the ControlLogix Modular Programmable Automation Controller (PAC) by Allen-Bradley. It comes with Memory of 10MB, and built-in Ethernet and USB communication interface. It is capable of 128,000 Discrete I/O and 4000 Analog I/O memory.



Technical Specifications



Brand Allen-Bradley
Series ControlLogix
Part Number 1756-L83E
Manufacturer Rockwell Automation
Module Type Processor Module
Tasks 32
Nonvolatile Memory 2 GB (1784-SD2 ships with every controller)
Communications USB, Ethernet
Communication 1 port USB; Ethernet
Communication Speed 12 MB-Second
Ethernet Nodes 100 or 250
USB Port Communication Programming, configuration, and on-line edits
Ethernet Communication Speed 10/100/1000 Mbps
USB Communication Speed 12 Mbps
Current Draw (1.2 Volts DC) 5 milliamps
Discrete I/O 128,000
Current Draw (5.1 Volts) 1.2 amps
Analog I/O 4,000
User Memory 4MB
Power Dissipation 6.2 Watts
Thermal Dissipation 21.2 BTU-hour
Backplane Current (1.2 Volts DC) 5 mA
Isolation Voltage 50 Volts Continuous
Backplane Current (5.1 Volts DC) 1.2 mA
Enclosure None
Relative Humidity 5-95 %
Redundancy Full Support
Programming Languages Relay ladder Structured text Function block SFC





Information About 1756-L83E

The Allen-Bradley 1756-L83E belongs to the Logix 5585E controller platform.

This controller is also designed with an embedded Ethernet communication port which support auto-negotiation with support for 10/100/100 Mbps transmission rate. Only linear topology may be implemented through this embedded port however, this controller module support addition of communication modules such as EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink and Third-party process and device networks for implementing a more sophisticated communication topology.

BOOTP-DHCP utility is used to configure an IP address to this module. For standard applications, this controller supports configuration of Static IP address however, for advanced security requirements, it may also be configured with dynamic IP parameters. With dynamic parameter, the address changes every power cycle or as triggered by a network provider. This setting is ideal for critical applications to prevent unwanted access to control and operational data.

This controller supports redundancy architecture for increasing the availability of this controller. It enables the system to operate when the primary controller is faulted by automatically switching to the secondary processor. It is also capable of implementing Remote I/O systems with the use of native ControlLogix modules or I/O system such as Flex I/O or POINT I/O. It can also communicate to other Allen-Bradley Programmable Logic Controllers (PLC) such as PLC 5, SLC 500, MicroLogix, and CompactLogix controller through mesaging instructions.

The Allen-Bradley 1756-L83E is a ControlLogix 5580 controller centered on EtherNet/IP communication. It supports 32 tasks where up to 1000 programs/task including event tasks with all event triggers being implemented. The controller has an available user memory for data and logic of 10 MB and an optional non-volatile storage memory. It ships with a 2 GB Secure Digital (SD) card, the 1784-SD2, that is already preinstalled with the controller. The controller also has a non-removable energy storage module that is already embedded in the controller. 2 communication ports are available with the 1756-L83E controller, a Type-B USB port and an embedded EtherNet port.

It is recommended that you only use a Rockwell Automation SD card, as these cards have been tested to work with controllers like the 1756-L83E and withstand extreme temperatures the controllers may be subjected to. You risk having data loss or corruption when you use other SD cards. It is important that you leave the SD card installed, as diagnostic data will be saved here in case of faults.

EtherNet/IP-related uses of this controller include connecting the controller with I/O modules, directly connecting it to an EtherNet/IP network without needing a bridge module, bridge messages between modules and EtherNet/IP in the ControlLogix chassis, support 10 Mbps, 100 Mbps, and even 1 Gbps link speeds, and communicate to other Ethernet/IP devices (messages and produced/consumed tags).

The controller has an EtherNet performance of 10/100/1000 Mbps and can support up to 250 EtherNet/IP nodes when used with the Studio 5000 Logix Designer Version 30 or higher. It does not support controller redundancy. It also has a maximum digital I/O and total I/O of 128,000 each and an analog I/O of 4,000.

The 1756-L83E controller has a continuous isolation voltage of 50V and it has been type tested at 1000V AC for 60 seconds. It also has a current draw of 5.0 mA at 1.2V DC and 1.20 A at 5.1V DC Power dissipation of this controller is 6.2 W and thermal dissipation is 21.2 BTU/hr. It also has a vibration of 2 g at 10 to 500 Hz and an operating and non-operating shock of both 30 g. Celsius, while its operating temperature range is 0 to 60 Degrees Celsius. It has a vibration of 2 G at 10 to 500 Hertz, an operating shock of 30 G, and a non-operating shock of 50 G.
