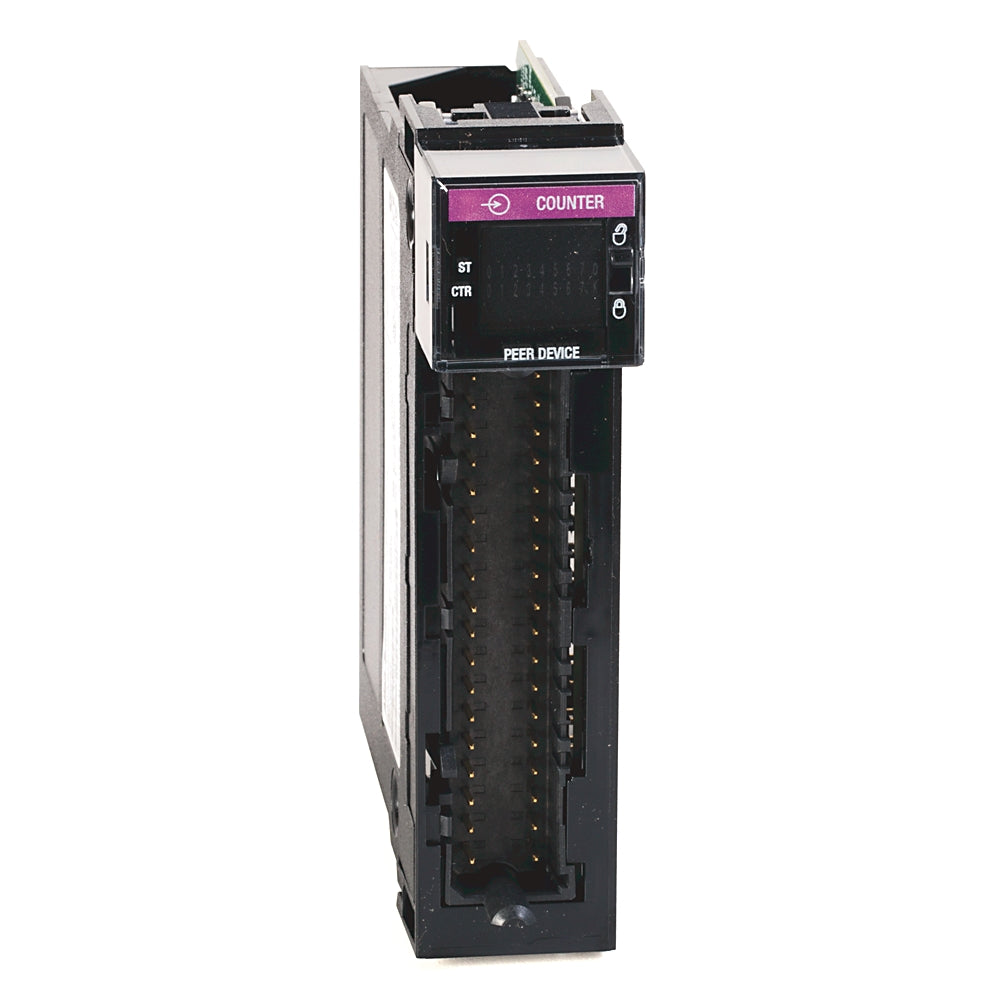

1756-LSC8XIB8I | Allen Bradley ControlLogix Low Speed Counter 24V DC
- Regular price
- $1,325.00
- Sale price
- $1,325.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-LSC8XIB8I
Description
The Allen-Bradley 1756-LSC8XIB8I is a ControlLogix low-speed counter module designed for precise counting and control applications. It features 8 individually isolated 24V DC input points, each capable of operating as a standard input or dedicated counter with a maximum frequency of 40 kHz.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1756-LSC8XIB8I |
| Subcategory | PLC Expansion Modules |
| Module Type | Counter Module |
| Series | ControlLogix |
| Inputs | 8 Individually Isolated |
| Input Voltage | 24 Volts |
| Removeable Terminal Block | 1756-TBCH, 1756-TBS6H |
| Ethernet Nodes | 300 |
| User Memory | 40 MB |
| Power Dissipation | 6.2 Watts |
| Isolation Voltage | 50 Volts Continuous |
Information About 1756-LSC8XIB8I
The 1756-LSC8XIB8I is a high-performance low-speed counter module from Allen-Bradley’s ControlLogix series, offering versatile functionality for industrial automation. The module includes 8 isolated sink/source inputs, configurable for standard input or counter operation. Each of the 8 dedicated counters supports up to 40 kHz counting frequency, with outputs including accumulated count, instantaneous and average frequency, and pulse width measurements. With user memory of 40 MB and support for 300 Ethernet nodes, this module integrates seamlessly into complex systems. It requires a removable terminal block (1756-TBCH or 1756-TBS6H) for wiring and consumes 1.2 amps at 5.1V DC.
Key Features:
- Inputs: 8 individually isolated sink/source input points.
- Counter Functionality: Eight dedicated counters with a maximum frequency of 40 kHz.
- Data Outputs: Returns accumulated count, instantaneous/average frequency, and pulse width metrics.
- Voltage Rating: Operates at 24V DC input.
- Memory: 40 MB user memory for efficient data handling.
- Ethernet Nodes: Supports up to 300 Ethernet nodes for extensive network integration.
- Current Draw: Consumes 1.2 amps at 5.1V DC and 5 milliamps at 1.2V DC.
- Terminal Blocks: Compatible with 1756-TBCH and 1756-TBS6H removable terminal blocks.
The Allen-Bradley 1756-LSC8XIB8I provides robust counting and input functionality for demanding industrial applications, offering high-speed and precise data handling. Its advanced features and seamless integration make it an excellent choice for ControlLogix systems.
