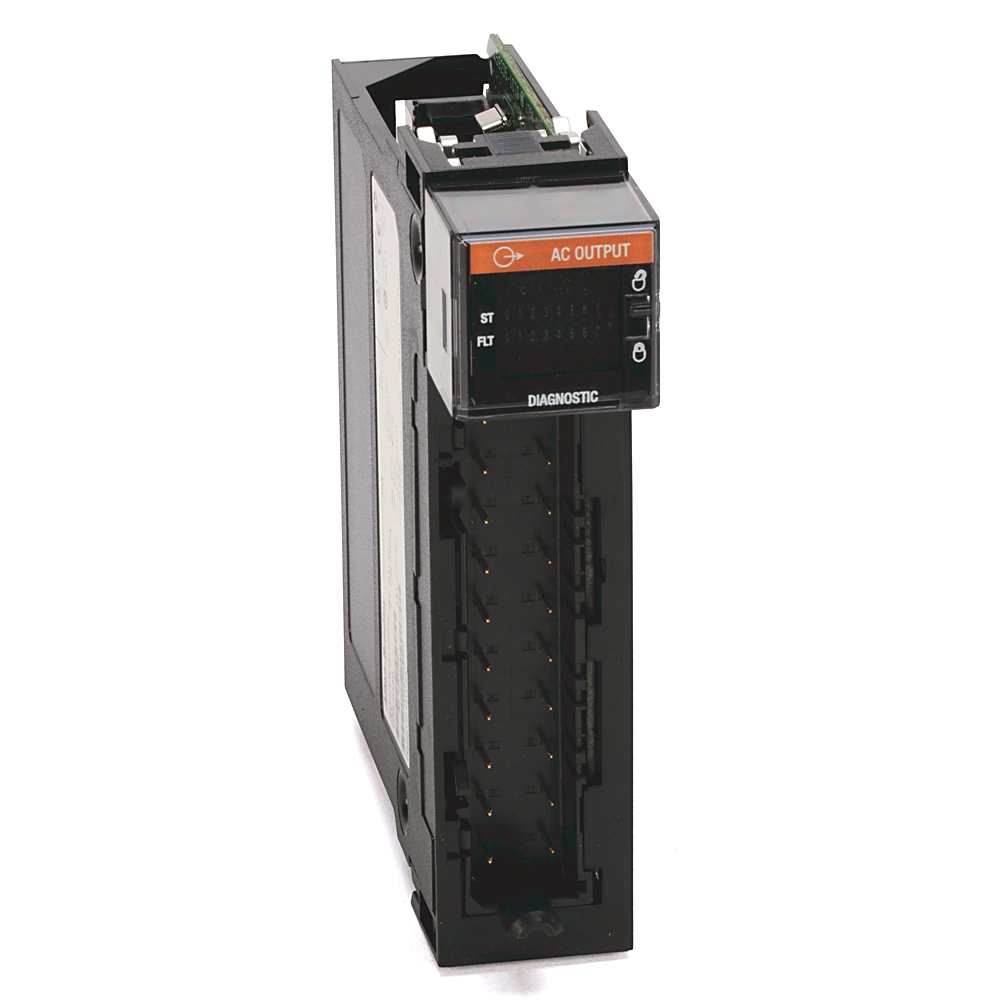

1756-OA8D | Allen Bradley Diagnostic AC Output Module
- Regular price
- $857.00
- Sale price
- $857.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-OA8D
Description
The Allen-Bradley 1756-OA8D is a diagnostic AC output module designed for the ControlLogix® system. It provides eight outputs for controlling AC devices while offering diagnostic features to monitor and ensure system health. The module helps improve troubleshooting, reduce downtime, and enhance the overall reliability of automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category |
PLCs/Machine Control
|
| Part Number | 1756-OA8D |
| Subcategory |
PLC Module/Rack
|
| Weight | 0.95 lbs |
| Outputs | 8 Diagnostic |
| Voltage | 120 Volts AC |
| Operating Voltage Range | 74-132 Volts AC |
| Maximum Output Current Rating-Point | 1 Amp at 30 degrees Celsius, 0.5 Amps at 60 degrees Celsius |
| Maximum Output Current Rating-Module | 8 Amps at 30 degrees Celsius and 4 Amps at 60 degrees Celsius |
| Power Dissipation (Max) | 5.3 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 175 milliamps |
| Backplane Current at 24 Volts | 250 milliamps |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Isolation Voltage | 50 Volts Continuous |
Information About 1756-OA8D
The Allen-Bradley 1756-OA8D is an 8-point digital AC output module designed for the ControlLogix® system. It provides eight outputs for controlling AC devices in the 74-132V AC range, each capable of handling up to 0.5A. The module features advanced field-side diagnostics, including no-load detection, output state verification via pulse testing, loss of field power detection, and per-point electronic fusing. It requires a removable terminal block (such as the 1756-TBNH or 1756-TBSH) for field wiring connections and is designed for open-style mounting within a ControlLogix chassis.
Key Features and Specifications
- Model: 1756-OA8D
- Type: 8-point digital AC output module
- Output Voltage: 74-132V AC
- Output Current per Point: Up to 0.5A
- Field-Side Diagnostics:
- No-load detection
- Output state verification via pulse testing
- Loss of field power detection
- Per-point electronic fusing
- Removable Terminal Block: 1756-TBNH or 1756-TBSH
- Mounting: Open-style, within ControlLogix chassis
- Certifications: CE, CSA, UL, RCM, KC, Marine, NRTL
Benefits
- Enhanced Diagnostics: Provides comprehensive field-side diagnostics for improved troubleshooting and reduced downtime.
- Flexible Integration: Compatible with various terminal blocks for easy installation.
- Robust Performance: Designed for industrial environments, offering reliable AC output control.
Applications
- Industrial Automation: Ideal for controlling AC devices in manufacturing and processing plants.
- Control Panels: Suitable for integration into control panels requiring reliable AC output control.
- Energy Management: Useful for systems where precise AC output control is essential for energy efficiency.
The 1756-OA8D module improves the functionality of the ControlLogix system by providing reliable, diagnostic-rich AC output control, making it a valuable component in industrial automation and control systems.
